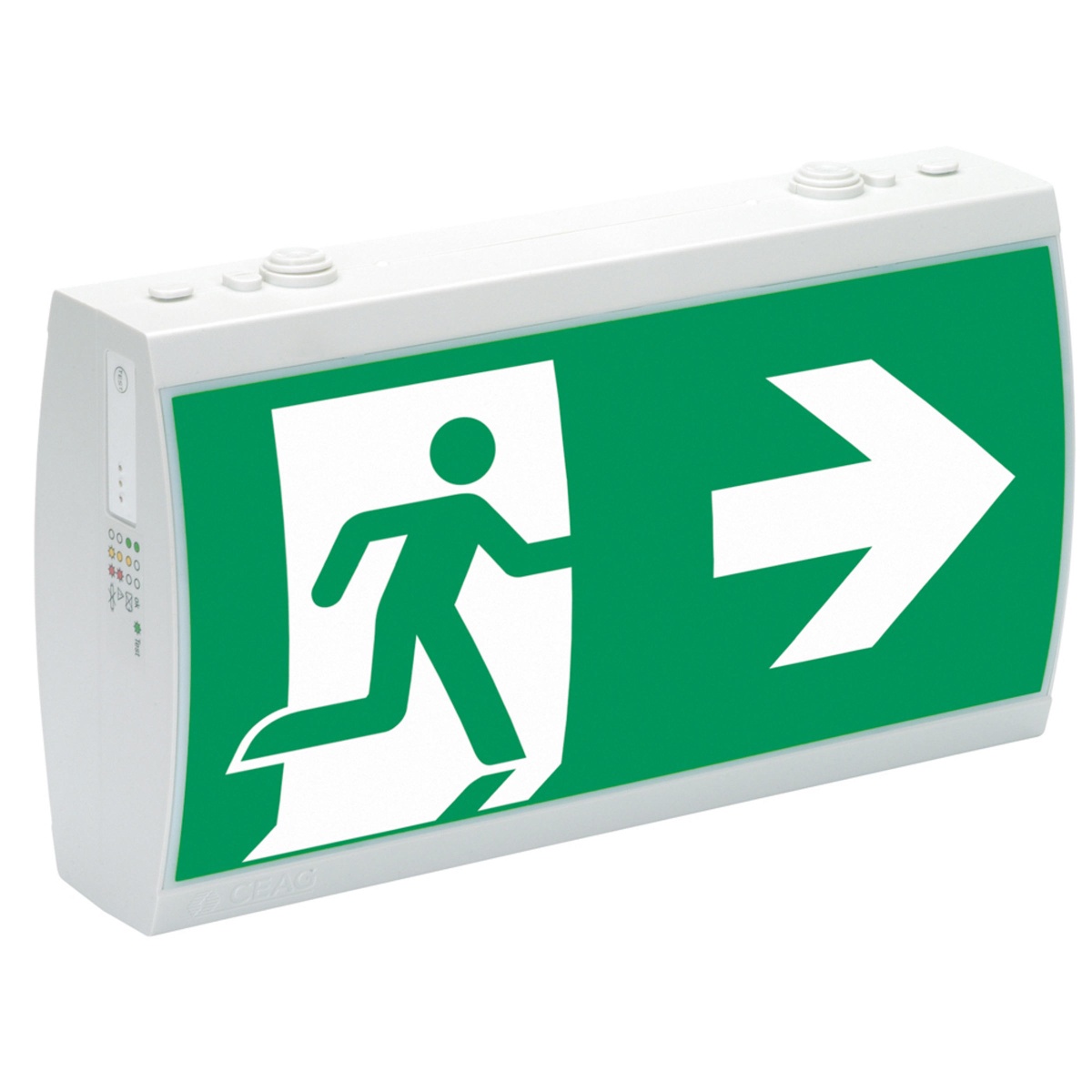

SV EURO 2-3D LED
Emergency
SV EURO 2-3D LED
Manufacturer Ref:
40071349399
Nortécnica Ref:
EAN:
3660191606121
Description
Technical Information
Attributes
Mounting method
Surface mounting/recessed mounting
Protection class according to IEC 61140
II
Largura
92
Diâmetro externo
-
Function
Escape route signage
Lamp holder
Other
Secção transversal do condutor
2.5
Connection type
Plug-in connection
Housing colour
White
Voltage type
AC
EF000233
EV009693
Type of control gear
Electronic transformer
With remote control
No
Largura para embutir
-
Built-in diameter
-
Suitable for labelling type
Sticker
Type of indicator
-
Número de polos
2
Comprimento
341
Alturaprofundidade
202
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
32
Comprimento para embutir
-
Material cover
Plastic, transparent
Impact strength
IK03
Battery technology
NiCd
Nominal voltage
230
240
Degree of protection IP
IP41
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
1
With remote switch connection
No
EF008091
EV008889
Recognition distance
30
Nominal current
73.5
73.5
Colour temperature
6500
6500
Potência máx. do sistema
3.8
EF009349
180
Constant light output CLO
No
With pictogram
Yes
Type of wiring
Suitable for loop-through wiring
Vida útil nominal L70B50 a 25 C
100000
Luminous flux in standby mode
250
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
5
35
Light distributor
Reflector
RAL-number housing
-
Nominal operation time
3
3
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
No
Suitable for continuous circuit
No
Alturaprofundidade para embutir
-
Fator de potência
0.5
