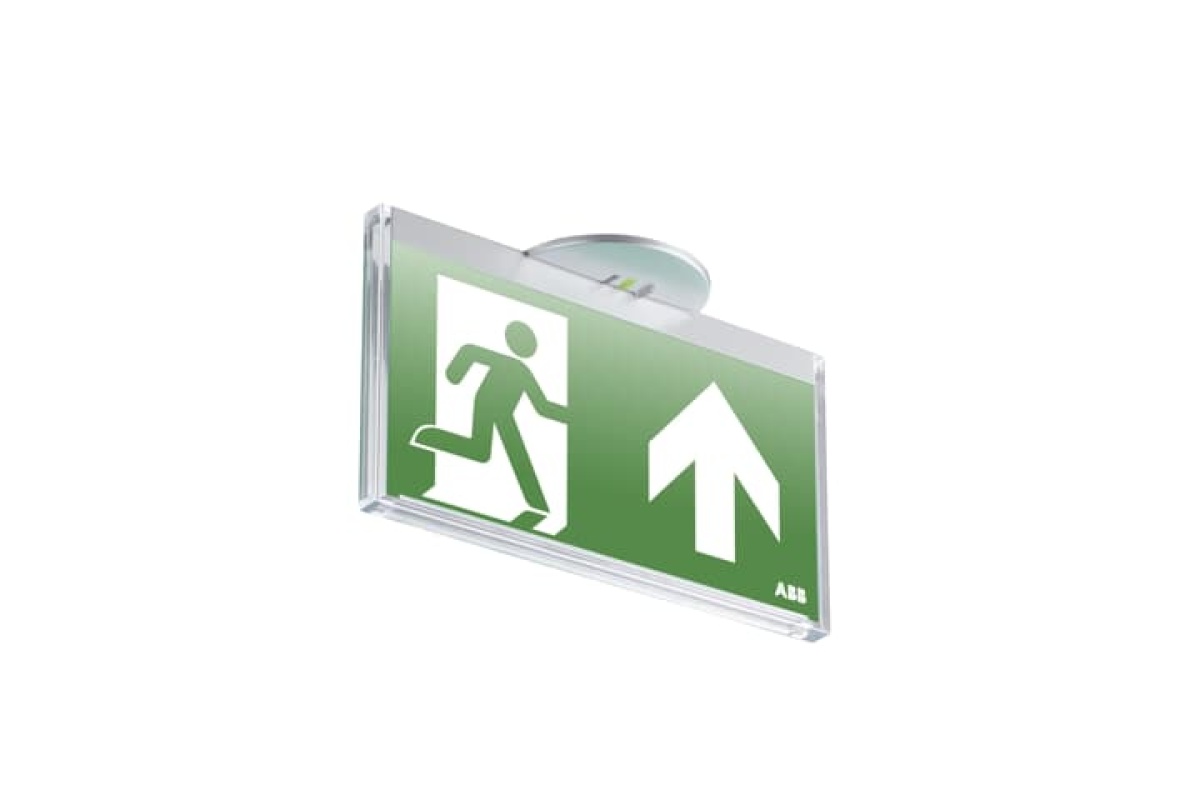

XT3300R-M3DALI 22M ALU
Emergency
XT3300R-M3DALI 22M ALU
Manufacturer Ref:
7TCA305020R0033
Nortécnica Ref:
EAN:
5415022514605
Description
Technical Information
Attributes
Mounting method
Built-in
Protection class according to IEC 61140
-
Largura
143
Diâmetro externo
92
Function
Escape route signage
Lamp holder
-
Secção transversal do condutor
2.5
Connection type
Screw connection
Housing colour
Aluminium
Voltage type
AC
EF000233
EV009693
Type of control gear
LED operating device current-controlled
With remote control
No
Largura para embutir
68
Built-in diameter
-
Suitable for labelling type
Acrylic plate
Type of indicator
Single/double-sided
Número de polos
7
Comprimento
235
Alturaprofundidade
182
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
1
Comprimento para embutir
300
Material cover
Plastic, transparent
Impact strength
-
Battery technology
NiMH
Nominal voltage
220
240
Degree of protection IP
IP40
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
-
Adequado para número de lâmpadas
1
With remote switch connection
No
EF008091
EV010144
Recognition distance
22
Nominal current
-
-
Colour temperature
5000
5000
Potência máx. do sistema
-
EF009349
-
Constant light output CLO
-
With pictogram
Yes
Type of wiring
Ending
Vida útil nominal L70B50 a 25 C
-
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-
-
Light distributor
-
RAL-number housing
-
Nominal operation time
-
-
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
Yes
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
-
Suitable for continuous circuit
-
Alturaprofundidade para embutir
48
Fator de potência
0.9
Brands
ABB
