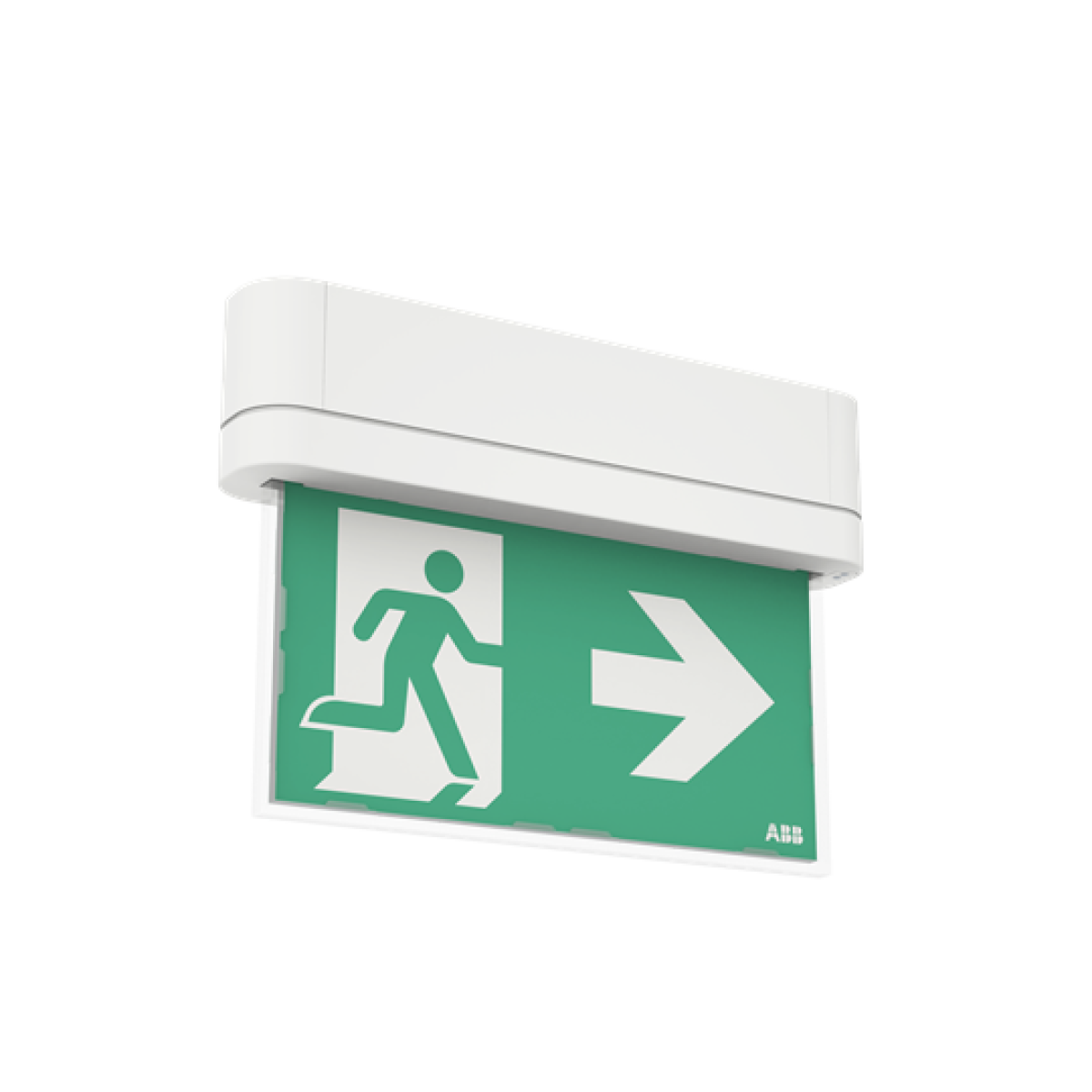

XT800S-230 22M

Manufacturer Ref: 7TCA305020R0069

Nortécnica Ref:

EAN: 8713812773001

Login to see prices and stocks

Description

XT800S-230 22M

Technical Information

Attributes

Mounting method

Wall surface mounting/ceiling surface mounting

Protection class according to IEC 61140

II

Largura

260

Diâmetro externo

-

Function

Escape route signage

Lamp holder

-

Secção transversal do condutor

2.5

Connection type

Other

Housing colour

White

Voltage type

AC/DC

EF000233

EV010184

Type of control gear

LED operating device current-controlled

With remote control

No

Largura para embutir

-

Built-in diameter

-

Suitable for labelling type

Other

Type of indicator

Single/double-sided

Número de polos

4

Comprimento

184

Alturaprofundidade

47

Housing material

Plastic

Lamp type

LED not exchangeable

Number of lighting heads

1

Comprimento para embutir

-

Material cover

Plastic, transparent

Impact strength

IK04

Battery technology

-

Nominal voltage

230

230

Degree of protection IP

IP42

With light source

Yes

Luminaire with limited surface temperature, sign "D according to EN 60598-2-24

-

Adequado para número de lâmpadas

1

With remote switch connection

No

EF008091

EV008889

Recognition distance

22

Nominal current

-

-

Colour temperature

5000

5000

Potência máx. do sistema

3.82

EF009349

65.8

Constant light output CLO

No

With pictogram

Yes

Type of wiring

Suitable for loop-through wiring

Vida útil nominal L70B50 a 25 C

-

Luminous flux in standby mode

-

Degree of protection NEMA

-

Rated ambient temperature according to IEC 62722-2-1

-

-

Light distributor

-

RAL-number housing

-

Nominal operation time

-

-

Número max. de luminárias por disjuntor C16

-

Número max. de luminárias por disjuntor B16

-

Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq

-

Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq

-

Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq

-

Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq

-

Valor estroboscópico Pst LM

-

Valor de efeito estroboscópico SVM

-

Exchangeable control gear

Yes

Energy efficiency class of the light source according to EU regulation 20192015

-

Suitable for standby switching

-

Suitable for continuous circuit

-

Alturaprofundidade para embutir

-

Fator de potência

0.9

Brands

ABB
