Emergency

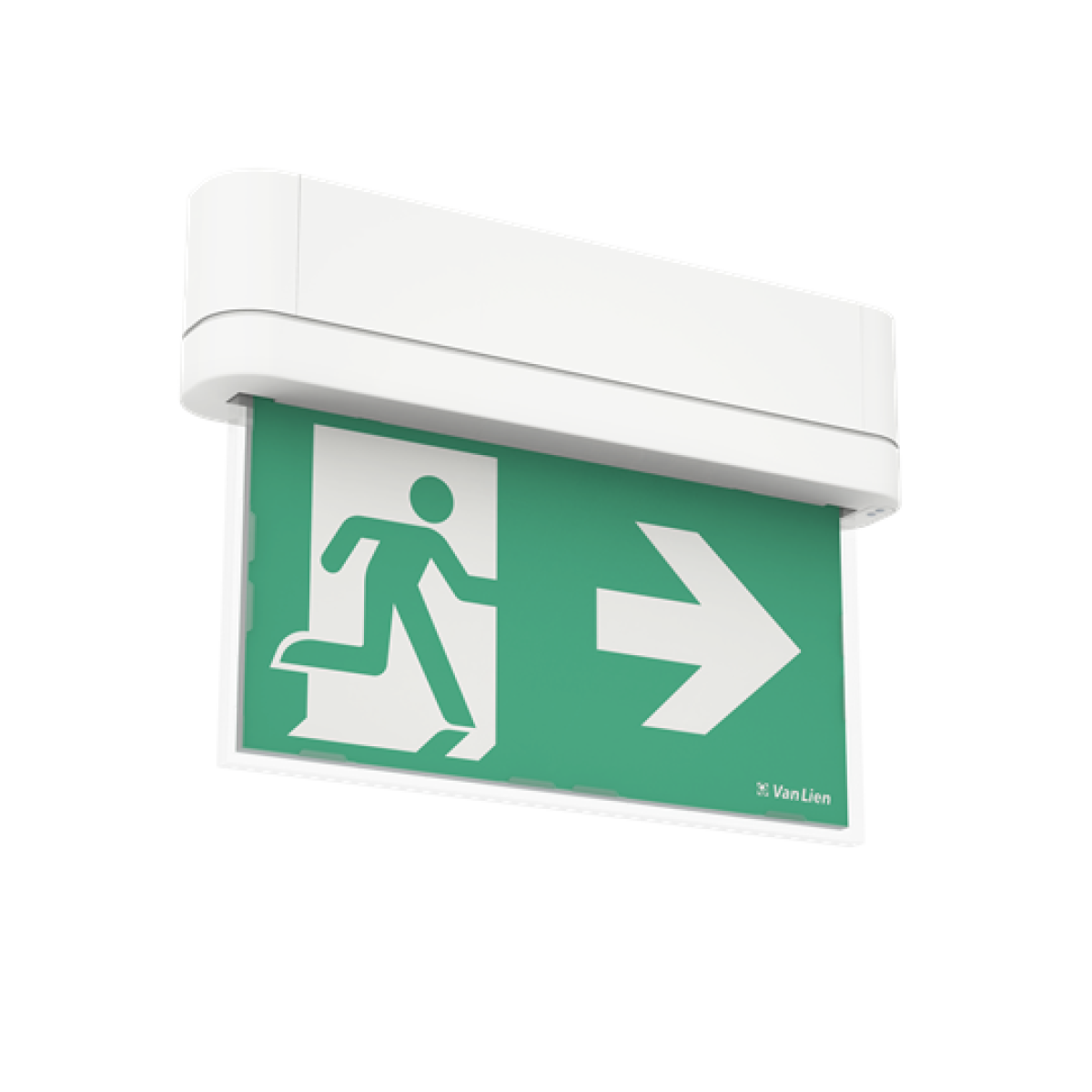

XT800S230 22M VL

Manufacturer Ref: 7TCA305020R0082

Nortécnica Ref:

EAN: 8713812773155

Login to see prices and stocks

Description

XT800S230 22M VL

Technical Information

Attributes

Mounting method

Wall surface mountingceiling surface mounting

EF000004

II

Width

260

Outer diameter

-

Function

Escape route signage

Lamp holder

-

Conductor cross section

2.5

Connection type

Other

Housing colour

White

Voltage type

ACDC

EF000233

EV010184

Type of control gear

LED operating device currentcontrolled

With remote control

No

Built-in width

-

Built-in diameter

-

Suitable for labelling type

Other

Type of indicator

Singledoublesided

Number of poles

4

Length

184

Heightdepth

47

Housing material

Plastic

Lamp type

LED not exchangeable

Number of lighting heads

1

Built-in length

-

Material cover

Plastic transparent

Impact strength

IK04

Battery technology

-

Nominal voltage

230

230

Degree of protection IP

IP42

With light source

Yes

Luminaire with limited surface temperature, sign "D according to EN 60598-2-24

-

Suitable for number of light sources

1

With remote switch connection

No

EF008091

EV010144

Recognition distance

22

Nominal current

-

-

Colour temperature

5000

5000

Max. system power

3.82

EF009349

65.8

Constant light output CLO

No

With pictogram

Yes

Type of wiring

Suitable for loopthrough wiring

Rated lifetime L70B50 at 25 C

-

Luminous flux in standby mode

-

Degree of protection NEMA

-

Rated ambient temperature according to IEC 62722-2-1

0

40

Light distributor

-

RAL-number housing

-

Nominal operation time

-

-

Max. number of luminaires per miniature circuit breaker C16 MCB

-

Max. number of luminaires per miniature circuit breaker B16 MCB

-

Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq

-

Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq

-

Failure rate at median useful life of 50,000 h at 25 C ambient tq

-

Failure rate at median useful life of 100,000 h at 25 C ambient tq

-

Flickering value Pst LM

-

Stroboscope effect value SVM

-

Exchangeable control gear

Yes

Energy efficiency class of the light source according to EU regulation 20192015

-

Suitable for standby switching

-

Suitable for continuous circuit

-

Built-in heightdepth

-

Power factor

0.9

Brands

VAN LIEN
