Emergency

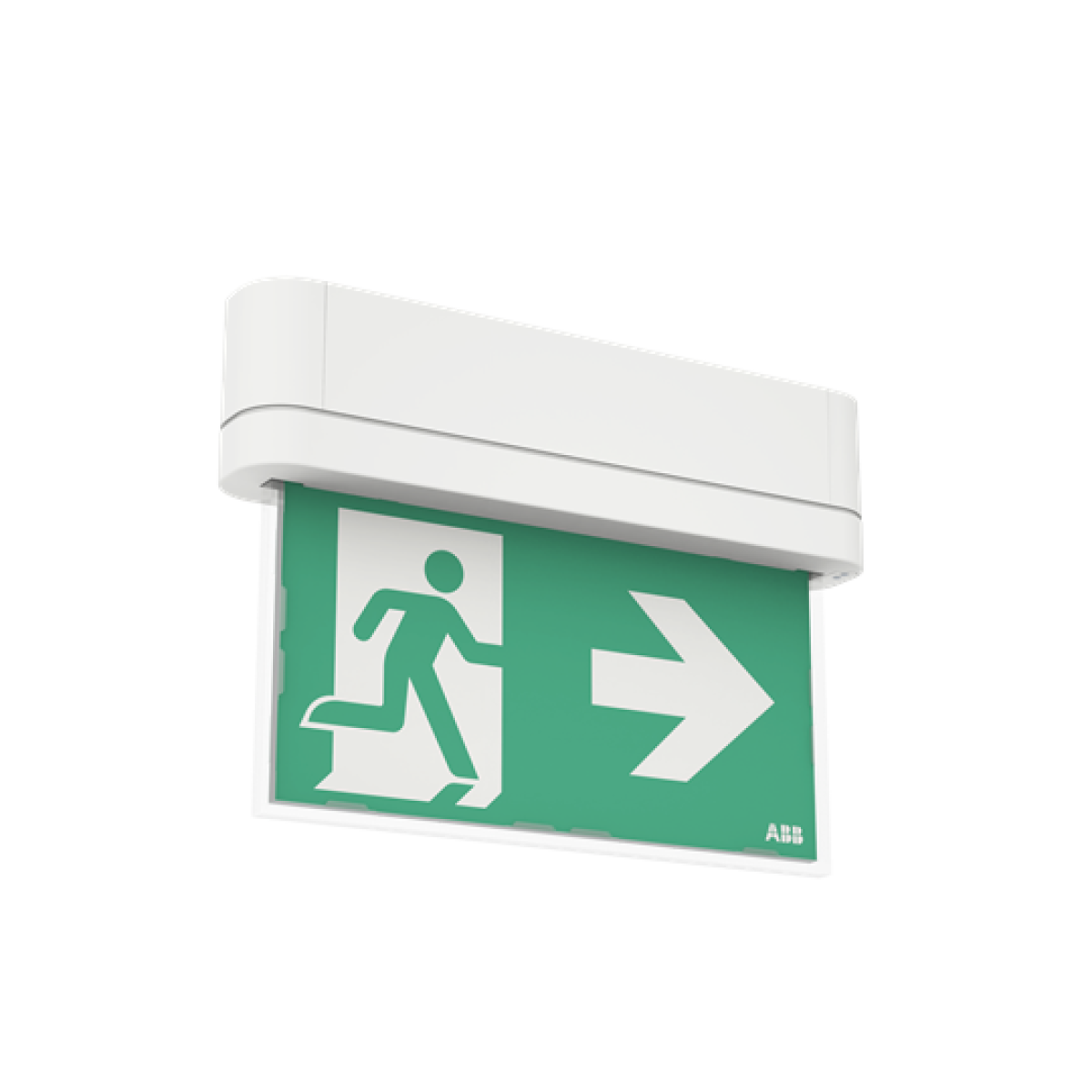

XT800SM3ST 22M

Manufacturer Ref: 7TCA305020R0067

Nortécnica Ref:

EAN: 8713812772950

Login to see prices and stocks

Description

XT800SM3ST 22M

Technical Information

Attributes

Mounting method

Wall surface mountingceiling surface mounting

EF000004

II

Width

260

Outer diameter

-

Function

Escape route signage

Lamp holder

-

Conductor cross section

2.5

Connection type

Other

Housing colour

White

Voltage type

AC

EF000233

EV009693

Type of control gear

LED operating device currentcontrolled

With remote control

No

Built-in width

-

Built-in diameter

-

Suitable for labelling type

Other

Type of indicator

Singledoublesided

Number of poles

4

Length

184

Heightdepth

47

Housing material

Plastic

Lamp type

LED not exchangeable

Number of lighting heads

1

Built-in length

-

Material cover

Plastic transparent

Impact strength

IK04

Battery technology

NiMH

Nominal voltage

230

230

Degree of protection IP

IP42

With light source

Yes

Luminaire with limited surface temperature, sign "D according to EN 60598-2-24

-

Suitable for number of light sources

1

With remote switch connection

No

EF008091

EV009635

Recognition distance

22

Nominal current

-

-

Colour temperature

5000

5000

Max. system power

4.14

EF009349

65.8

Constant light output CLO

No

With pictogram

Yes

Type of wiring

Suitable for loopthrough wiring

Rated lifetime L70B50 at 25 C

-

Luminous flux in standby mode

-

Degree of protection NEMA

-

Rated ambient temperature according to IEC 62722-2-1

5

35

Light distributor

-

RAL-number housing

-

Nominal operation time

3

3

Max. number of luminaires per miniature circuit breaker C16 MCB

-

Max. number of luminaires per miniature circuit breaker B16 MCB

-

Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq

-

Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq

-

Failure rate at median useful life of 50,000 h at 25 C ambient tq

-

Failure rate at median useful life of 100,000 h at 25 C ambient tq

-

Flickering value Pst LM

-

Stroboscope effect value SVM

-

Exchangeable control gear

Yes

Energy efficiency class of the light source according to EU regulation 20192015

-

Suitable for standby switching

-

Suitable for continuous circuit

-

Built-in heightdepth

-

Power factor

0.9

Brands

ABB
