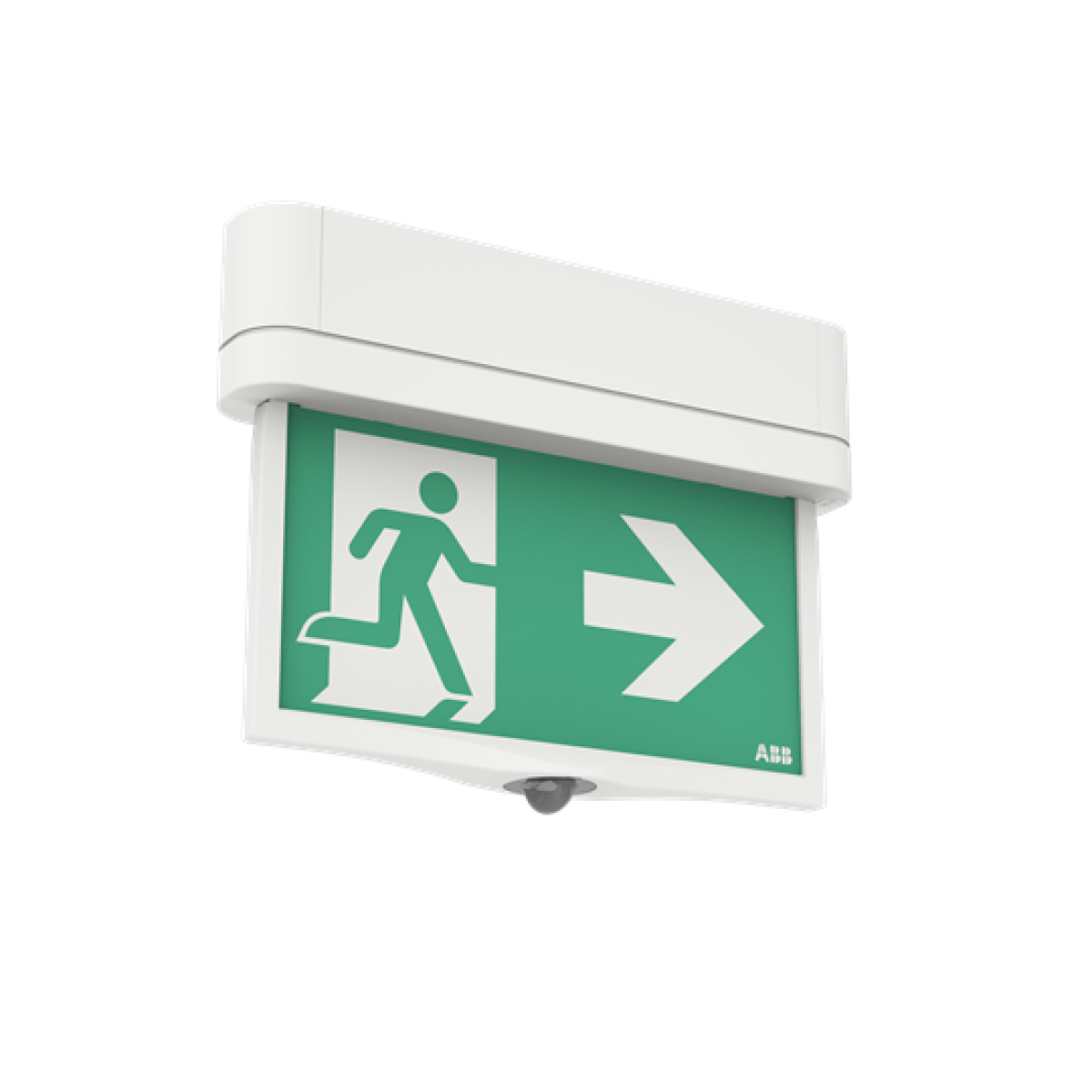

XTH800S-M3ST 22M
Emergency
XTH800S-M3ST 22M
Manufacturer Ref:
7TCA305020R0072
Nortécnica Ref:
EAN:
8713812773032
Description
Technical Information
Attributes
Mounting method
Wall surface mounting/ceiling surface mounting
Protection class according to IEC 61140
II
Largura
260
Diâmetro externo
-
Function
Escape route lighting/signage
Lamp holder
-
Conductor cross section
2.5
Connection type
Other
Housing colour
White
Voltage type
AC
EF000233
EV009693
Type of control gear
LED operating device current-controlled
With remote control
No
Built-in width
-
Built-in diameter
-
Suitable for labelling type
Other
Type of indicator
Single/double-sided
Número de polos
4
Comprimento
202
Heightdepth
47
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
2
Built-in length
-
Material cover
Plastic, transparent
Impact strength
IK04
Battery technology
NiMH
Nominal voltage
230
230
Degree of protection IP
IP42
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
-
Suitable for number of light sources
2
With remote switch connection
No
EF008091
EV009635
Recognition distance
22
Nominal current
-
-
Colour temperature
5000
5000
Max. system power
4.89
EF009349
76.6
Constant light output CLO
No
With pictogram
Yes
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
-
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
5
35
Light distributor
Focal lens
RAL-number housing
-
Nominal operation time
3
3
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Exchangeable control gear
Yes
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
-
Suitable for continuous circuit
-
Built-in heightdepth
-
Fator de potência
0.9
Brands
ABB
