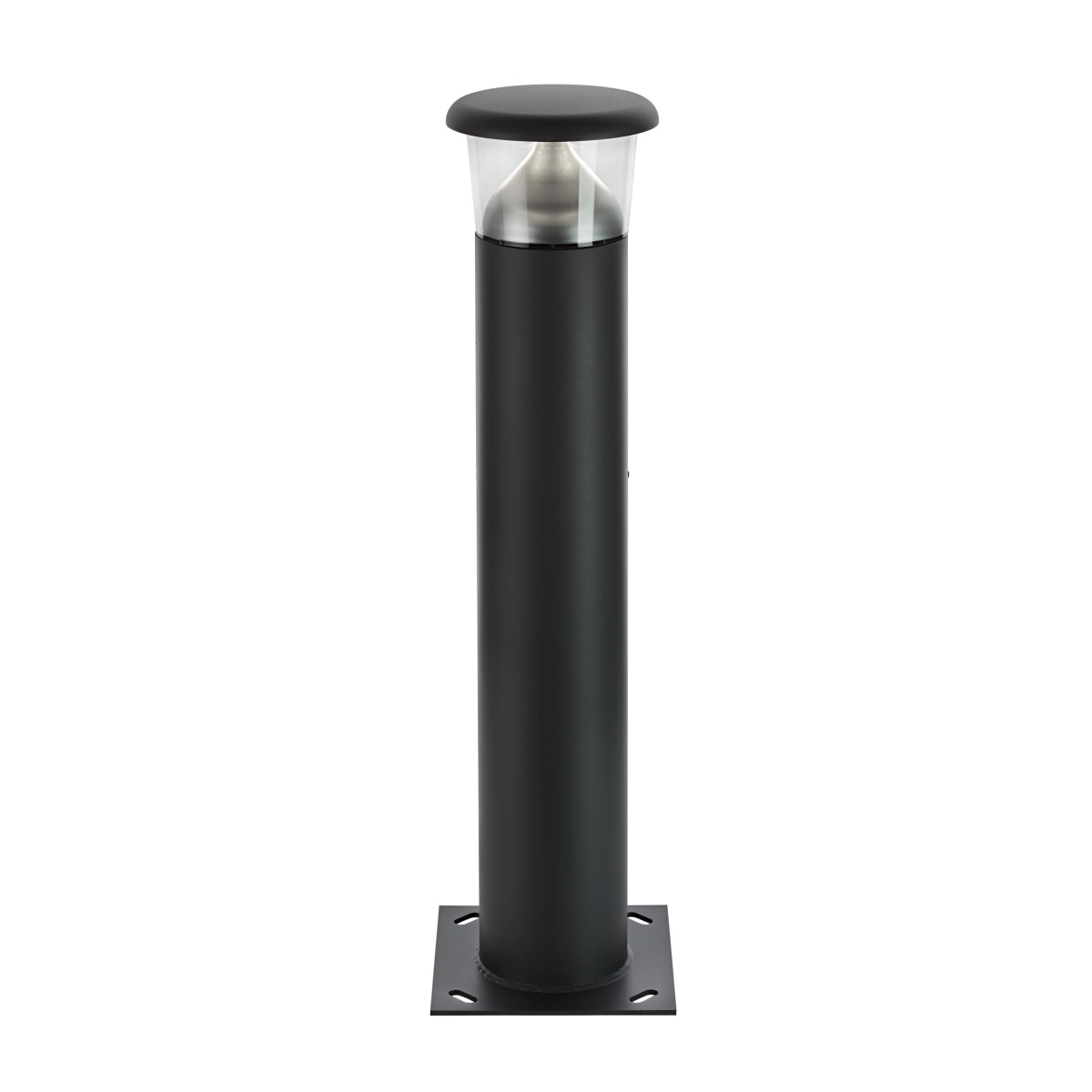

BCB500 LED27-4S740 ANB14 II A DGR
Exterior
BCB500 LED27-4S740 ANB14 II A DGR
Manufacturer Ref:
48120900
Nortécnica Ref:
EAN:
8718699481209
Description
Technical Information
Attributes
Protection class according to IEC 61140
II
Largura
270
Lamp holder
Other
Secção transversal do condutor
2.5
With base plate
Yes
Connection type
Screwed terminal
Housing colour
Black
Surface protection
Powder coating
Voltage type
AC
With movement sensor
No
Suitable for lamp power
-
-
Type of control gear
LED operating device current-controlled
Índice de restituição de cor CRI
70-79
Diâmetro
168
With light sensor
No
Intensidade luminosa
-
Número de polos
2
Comprimento
270
Alturaprofundidade
848
Housing material
Aluminium
Lamp type
LED exchangeable
Type of luminaire
Bollard luminaire
Light outlet
Direct/indirect
Light distribution
Asymmetric
Material cover
Plastic, transparent
Impact strength
IK10
Nominal voltage
220
240
Degree of protection IP
IP66
With light source
Yes
Adequado para número de lâmpadas
-
With control gear
Yes
Beam angle
Other
Nominal current
91
91
Colour temperature
4000
4000
Potência máx. do sistema
20
EF009349
2400
Colour of light
White
Constant light output CLO
No
IFTTT support available
No
Type of wiring
Ending
Vida útil nominal L70B50 a 25 C
-
Degree of protection NEMA
-
Light distributor
Refractor lens
EF012172
167
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Número max. de luminárias por disjuntor C16
23
Número max. de luminárias por disjuntor B16
18
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
90
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
10
Valor estroboscópico Pst LM
0.05
Valor de efeito estroboscópico SVM
0.07
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
Yes
Energy efficiency class of the light source according to EU regulation 20192015
D
Housing material quality
Other
Fator de potência
0.96
Meets min. EIA lifetime criterion L90 at 50,000 hours at tq 25 C
No
Brands
Signify
Technical Sheet
