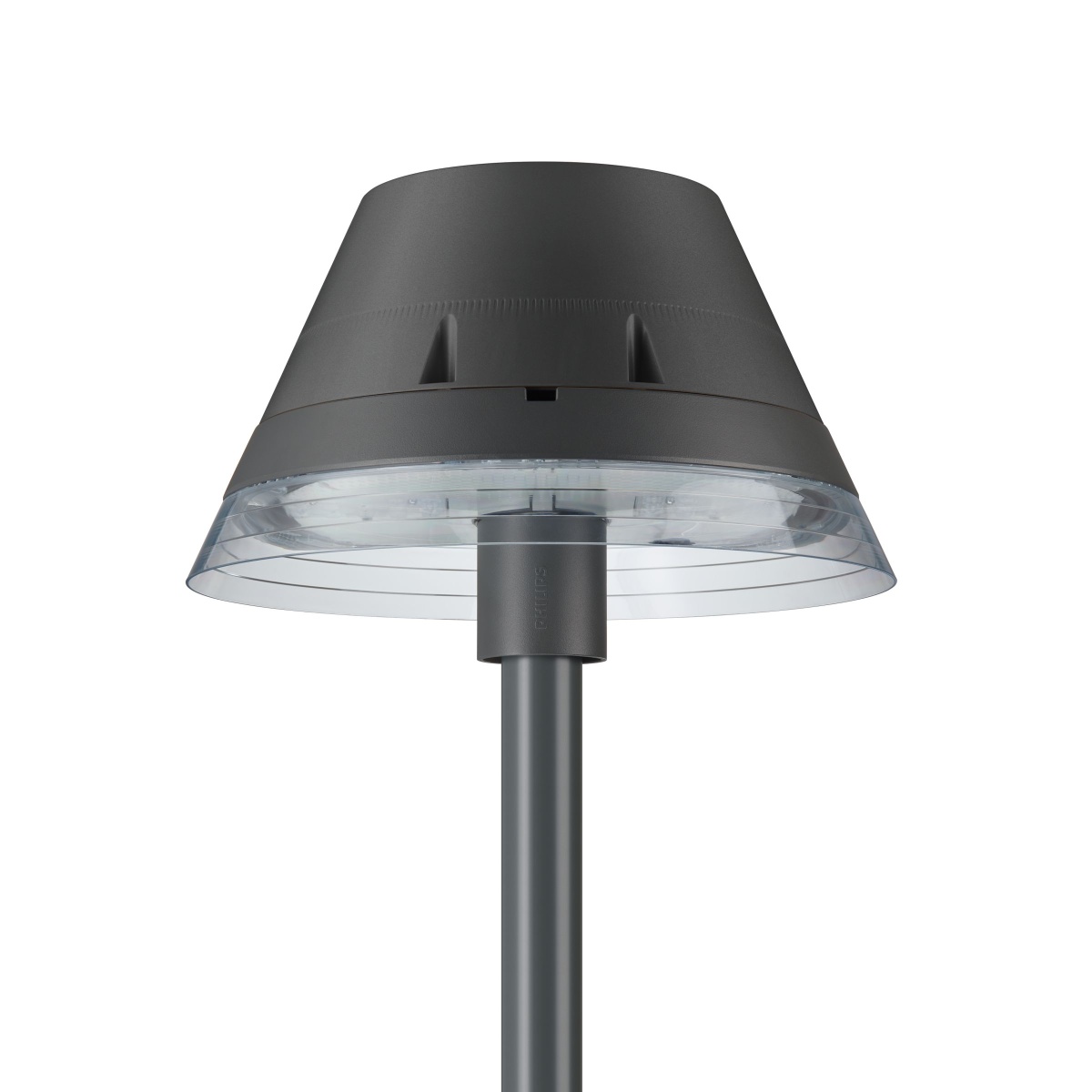

BDP262 LED59-4S830 II DW50 DR CLO LS-6
Exterior
BDP262 LED59-4S830 II DW50 DR CLO LS-6
Manufacturer Ref:
49026300
Nortécnica Ref:
EAN:
8718699490263
Description
Technical Information
Attributes
Mounting method
Post top
EF000004
II
Width
-
Lamp holder
Other
Conductor cross section
2.5
Connection type
Screwed terminal
Housing colour
Grey
Surface protection
Powder coating
Voltage type
AC
Suitable for lamp power
-
-
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
80-89
Cable length
-

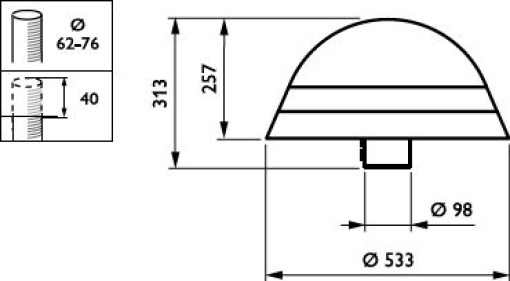

Diameter
533
With light sensor
No
Number of poles
2
Length
-
Heightdepth
365
Housing material
Aluminium
Lamp type
LED exchangeable
Material cover
Plastic transparent
Impact strength
IK10
With connection cable
No
Nominal voltage
220
240
Degree of protection IP
IP66
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Suitable for number of light sources
-
With control gear
Yes
Adjustable optics
No
Suitable for spigot size
76
76
Nominal current
188
188
Colour temperature
3000
3000
Max. system power
42.5
EF009349
3886
Colour of light
White
Remote control
Stand-alone control
With radio control
No
With light regulation program control
Yes
Constant light output CLO
Yes
IFTTT support available
No
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
-
Colour consistency McAdam ellipse
SDCM5
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
25
25
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
Yes
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
No
Light distributor
Refractor lens
EF012172
91
Dimming DSI
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
10
Max. number of luminaires per miniature circuit breaker B16 MCB
10
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
100
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
10
Exchangeable control gear
Yes
Type of connection for sensorcommunication module
Other
Energy efficiency class of the light source according to EU regulation 20192015
E
Power factor
0.98
Brands
PHILIPS
Technical Sheet
