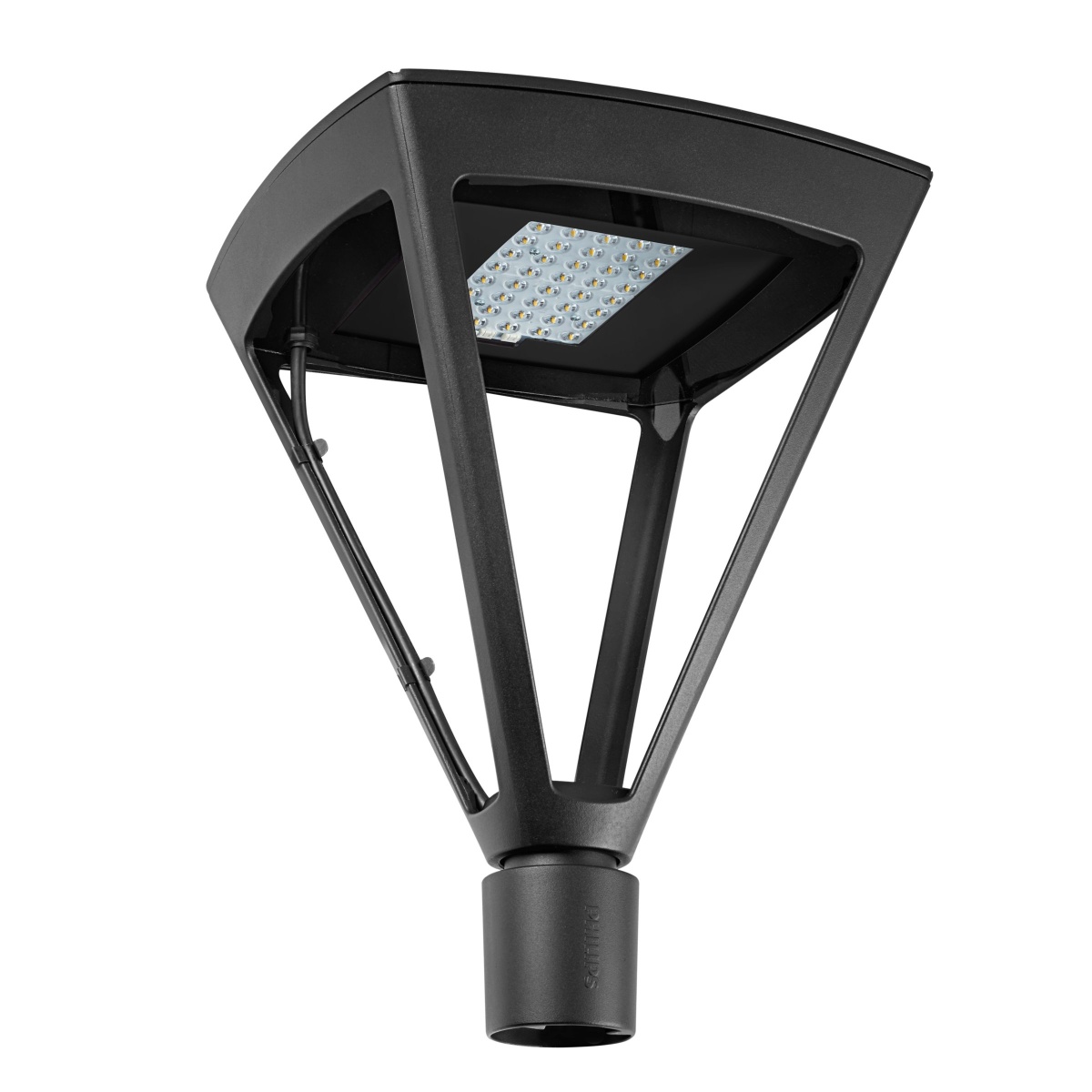

BDP794 LED63-4S740 DM50 MK-BK GF BK D9
Exterior
BDP794 LED63-4S740 DM50 MK-BK GF BK D9
Manufacturer Ref:
23352200
Nortécnica Ref:
EAN:
8719514233522
Description
Technical Information
Attributes
Mounting method
Post top mounting
Protection class according to IEC 61140
I

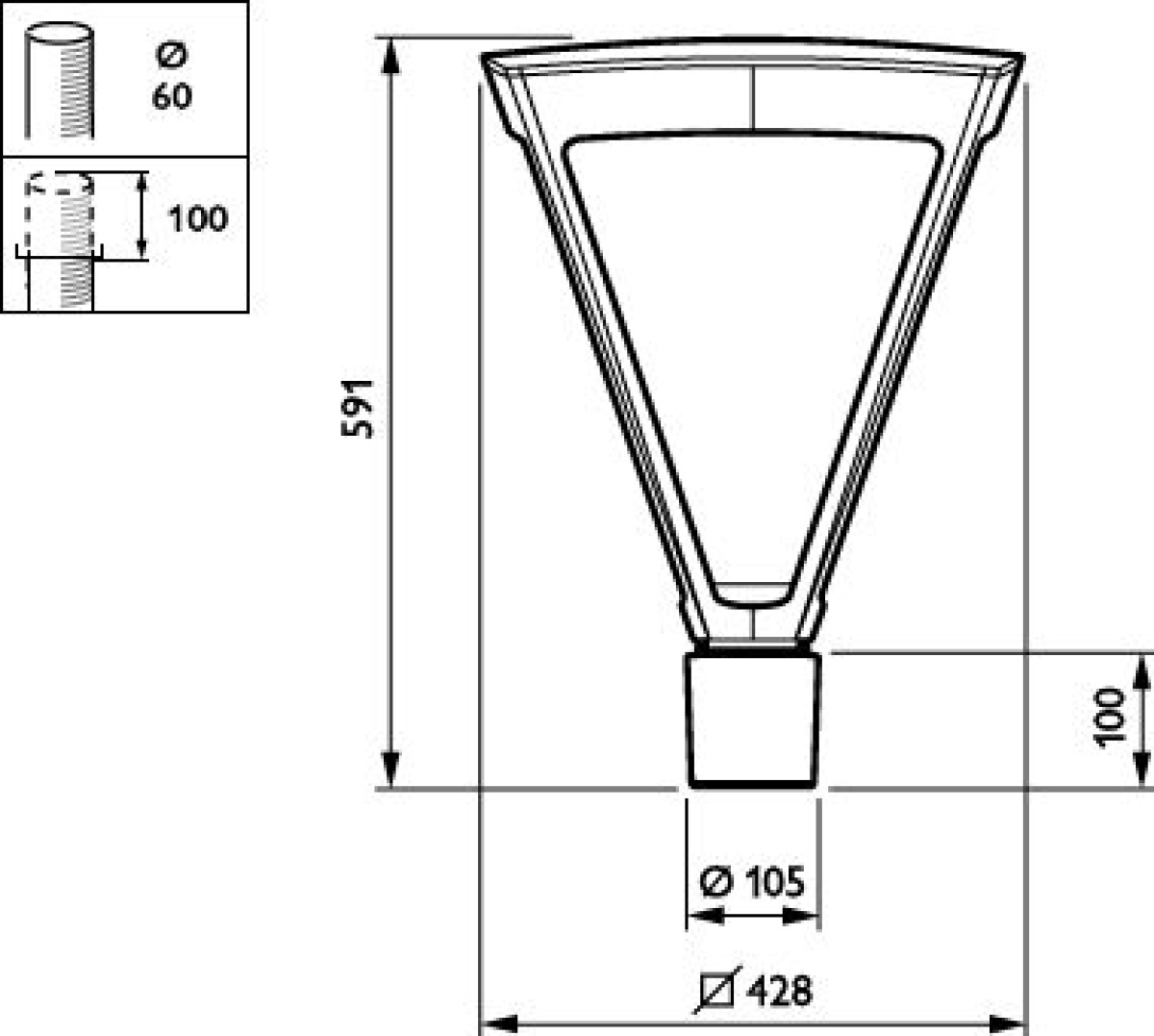

Largura
428
Lamp holder
None
Secção transversal do condutor
2.5
Connection type
Screwed terminal
Housing colour
Black
Surface protection
Powder coating
Voltage type
AC
Suitable for lamp power
-
-
Type of control gear
LED operating device current-controlled
Índice de restituição de cor CRI
70-79
Cable length
-
Diâmetro
-
With light sensor
No
Número de polos
5
Comprimento
428
Alturaprofundidade
586
Housing material
Aluminium
Lamp type
LED exchangeable
Material cover
Glass transparent
Impact strength
IK08
With connection cable
No
Nominal voltage
220
240
Degree of protection IP
IP66
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
-
With control gear
Yes
Adjustable optics
No
Suitable for spigot size
60
60
Nominal current
177
177
Colour temperature
4000
4000
Potência máx. do sistema
40
EF009349
3840
Colour of light
White
Remote control
Stand-alone control
With radio control
No
With light regulation program control
No
Constant light output CLO
No
IFTTT support available
No
Type of wiring
Ending
Vida útil nominal L70B50 a 25 C
-
Colour consistency McAdam ellipse
SDCM5
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
25
25
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming potentiometer integrated
No
Regulação LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Regulação por redução da onda sinusoidal
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
No
Light distributor
Refractor lens
EF012172
96
Dimming DSI
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Número max. de luminárias por disjuntor C16
26
Número max. de luminárias por disjuntor B16
26
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
96
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
10
Exchangeable control gear
Yes
Type of connection for sensorcommunication module
Other
Energy efficiency class of the light source according to EU regulation 20192015
D
Fator de potência
0.98
Brands
Signify
