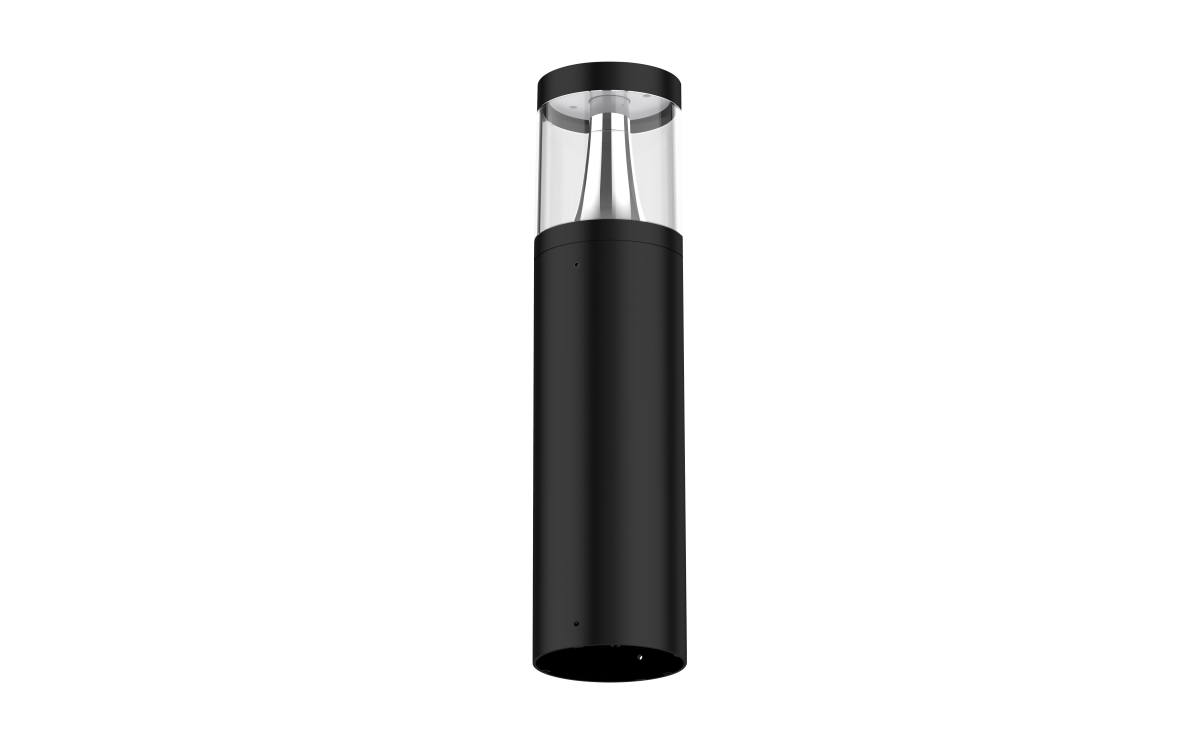

LEDBollard-Leo-P L1000-8W-830840-CL
Exterior
LEDBollard-Leo-P L1000-8W-830840-CL
Manufacturer Ref:
703000006100
Nortécnica Ref:
EAN:
6931783047507
Description
Technical Information
Attributes
EF000004
I
Width
100
Lamp holder
None
Conductor cross section
-
With base plate
Yes
Connection type
-
Housing colour
Black
Surface protection
-
Voltage type
AC
With movement sensor
No
Suitable for lamp power
-
Type of control gear
LED operating device voltage-controlled
Colour rendering index CRI
80-89
Diameter
100
With light sensor
No
EF001357
-
Number of poles
-
Length
100
Heightdepth
1000
Housing material
Aluminium
Lamp type
LED not exchangeable
Type of luminaire
Bollard luminaire
Light outlet
-
Light distribution
Symmetric
Material cover
Plastic transparent
Impact strength
IK08
Nominal voltage
220
240
Degree of protection IP
IP65
With light source
Yes
Suitable for number of light sources
-
With control gear
Yes
Beam angle
80 - Extreme wide beam
Nominal current
0.095
0.095
Colour temperature
3000
4000
Max. system power
8
EF009349
620
Colour of light
White
Constant light output CLO
No
IFTTT support available
No
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
70000
Degree of protection NEMA
-
Light distributor
Diffuser lensopticpanel
EF012172
78
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
213
Max. number of luminaires per miniature circuit breaker B16 MCB
213
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Colour of light adjustable
Positions
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
C
Housing material quality
-
Power factor
0.9
Meets min. EIA lifetime criterion L90 at 50,000 hours at tq 25 C
-
Brands
OPPLE
Technical Sheet
