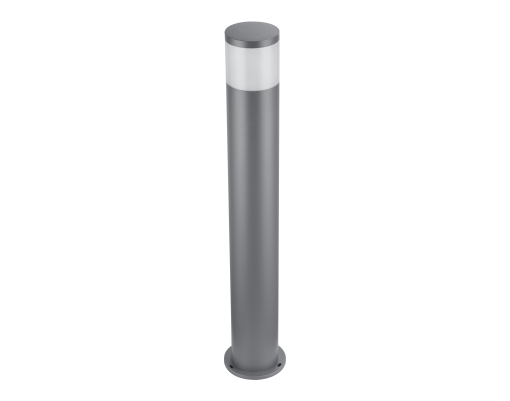

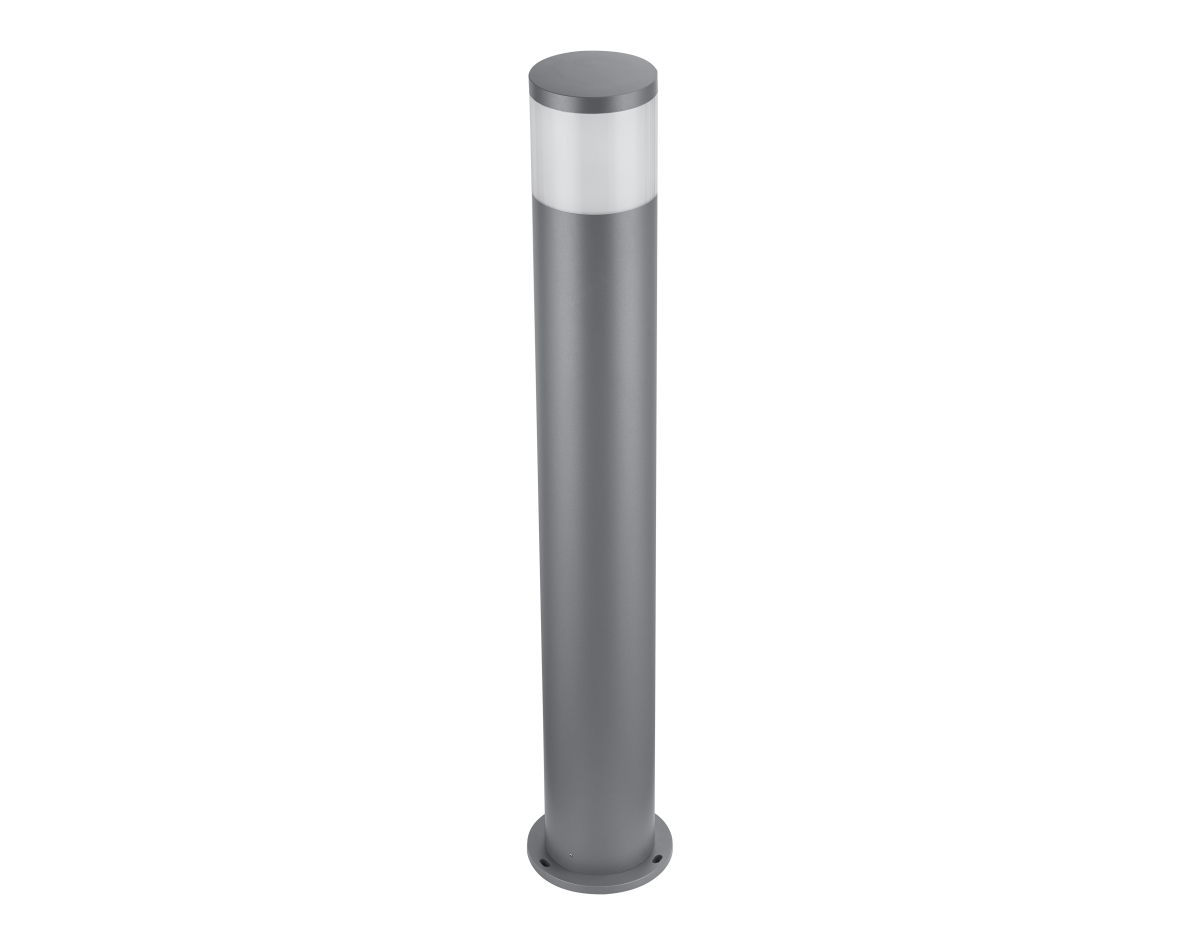

LEDBollard-P L900-105W-4000-W
Exterior
LEDBollard-P L900-105W-4000-W
Manufacturer Ref:
543012003000
Nortécnica Ref:
68543012003000
EAN:
6941408856841
Description
Technical Information
Attributes
Protection class according to IEC 61140
I
Largura
160
Lamp holder
None
Secção transversal do condutor
-
With base plate
Yes
Connection type
-
Housing colour
Grey
Surface protection
-
Voltage type
ACDC
With movement sensor
No
Suitable for lamp power
-
Type of control gear
LED operating device current-controlled
Índice de restituição de cor CRI
80-89
Diâmetro
-
With light sensor
No
Intensidade luminosa
-
Número de polos
-
Comprimento
160
Alturaprofundidade
900
Housing material
Aluminium
Lamp type
LED not exchangeable
Type of luminaire
Bollard luminaire
Light outlet
-
Light distribution
Asymmetric
Material cover
-
Impact strength
IK08
Nominal voltage
220
240
Degree of protection IP
IP65
With light source
Yes
Adequado para número de lâmpadas
-
With control gear
Yes
Beam angle
80 - Extreme wide beam
Nominal current
350
350
Colour temperature
4000
4000
Potência máx. do sistema
10.5
EF009349
1000
Colour of light
White
Constant light output CLO
No
IFTTT support available
No
Type of wiring
Ending
Vida útil nominal L70B50 a 25 C
50000
Degree of protection NEMA
-
Light distributor
Diffuser lensopticpanel
EF012172
95
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Número max. de luminárias por disjuntor C16
96
Número max. de luminárias por disjuntor B16
75
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
F
Housing material quality
-
Fator de potência
0.9
Meets min. EIA lifetime criterion L90 at 50,000 hours at tq 25 C
-
Brands
OPPLE
Technical Sheet
