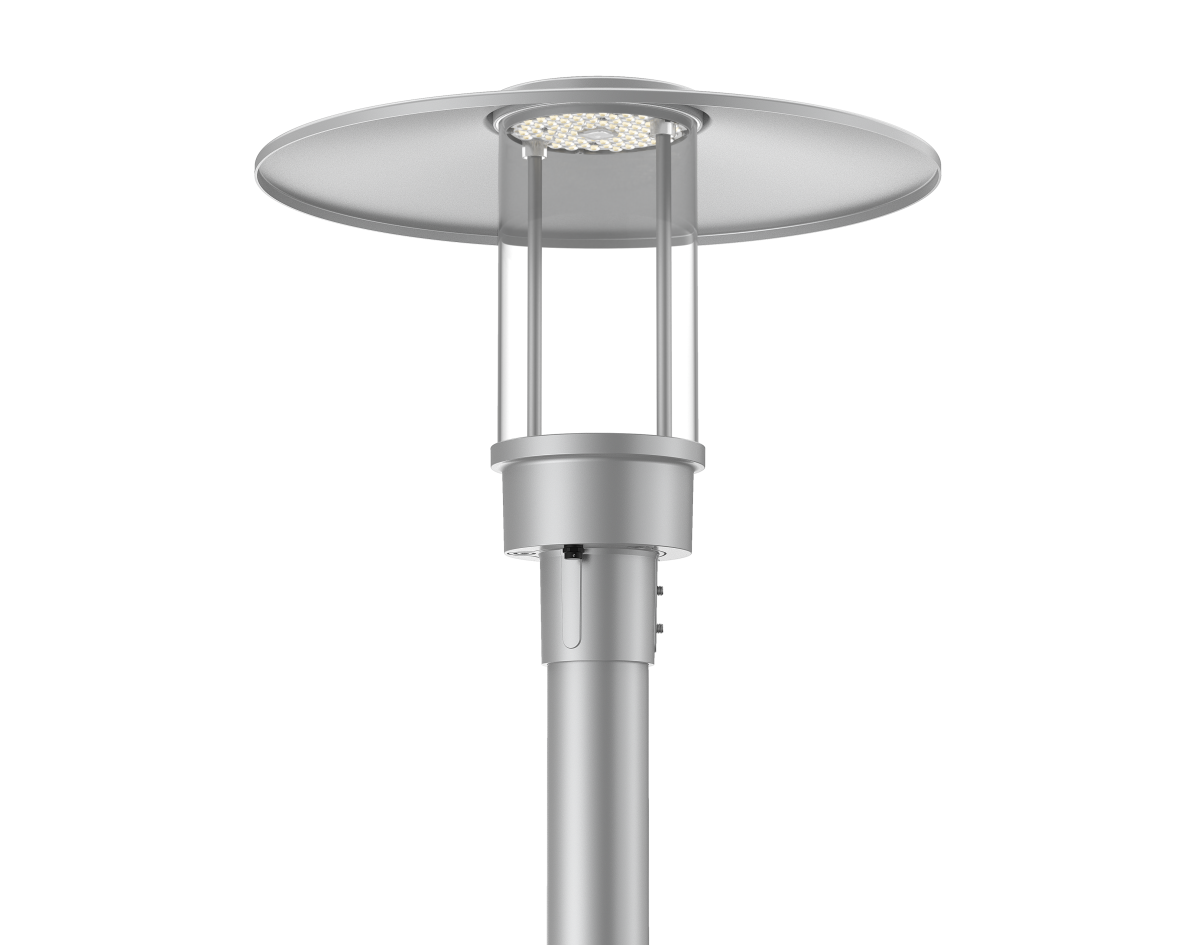

LEDPostTop-Po-P Rd550-35W-DA-730740-W
Exterior
LEDPostTop-Po-P Rd550-35W-DA-730740-W
Manufacturer Ref:
718004002500
Nortécnica Ref:
EAN:
6941491796925
Description
Technical Information
Attributes
Mounting method
Post top
EF000004
II
Width
550
Lamp holder
None
Conductor cross section
1.5
Connection type
-
Housing colour
Grey
Surface protection
-
Voltage type
AC
Suitable for lamp power
-
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
70-79
Cable length
0.3
Diameter
550
With light sensor
-
Number of poles
-
Length
550
Heightdepth
460
Housing material
Aluminium
Lamp type
LED not exchangeable
Material cover
Plastic transparent
Impact strength
IK08
With connection cable
Yes
Nominal voltage
176
264
Degree of protection IP
IP66
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Suitable for number of light sources
-
With control gear
Yes
Adjustable optics
No
Suitable for spigot size
-
Nominal current
165
165
Colour temperature
3000
4000
Max. system power
35
EF009349
4550
Colour of light
White
Remote control
None
With radio control
No
With light regulation program control
No
Constant light output CLO
No
IFTTT support available
No
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
100000
Colour consistency McAdam ellipse
SDCM5
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-30
50
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
Yes
Dimming phase cut-off trailing edge
Yes
Dimming phase cut-on leading edge
Yes
Dimming programmable
Yes
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
Yes
Dimming Zigbee
No
Dimming with push-button
Yes
EF012169
No
Light distributor
Focal lens
EF012172
35
Dimming DSI
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
31
Max. number of luminaires per miniature circuit breaker B16 MCB
18
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Exchangeable control gear
No
Type of connection for sensorcommunication module
-
Energy efficiency class of the light source according to EU regulation 20192015
-
Power factor
0.9
Brands
OPPLE
Technical Sheet
