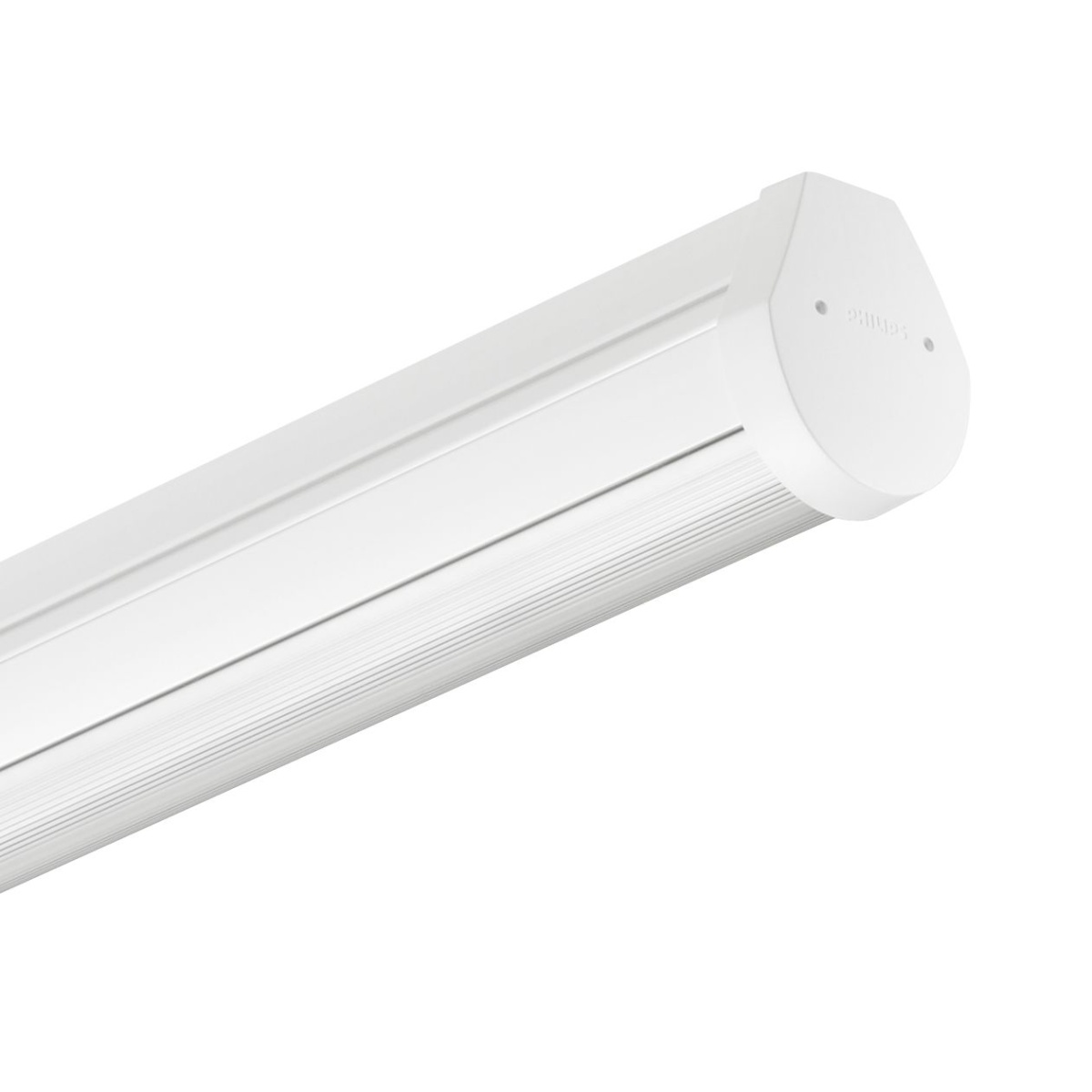

4MX900 581 LED50S840 PSU A30 WH
Industry
4MX900 581 LED50S840 PSU A30 WH
Manufacturer Ref:
66637999
Nortécnica Ref:
EAN:
4030732666379
Description
Technical Information
Attributes
EF000004
I

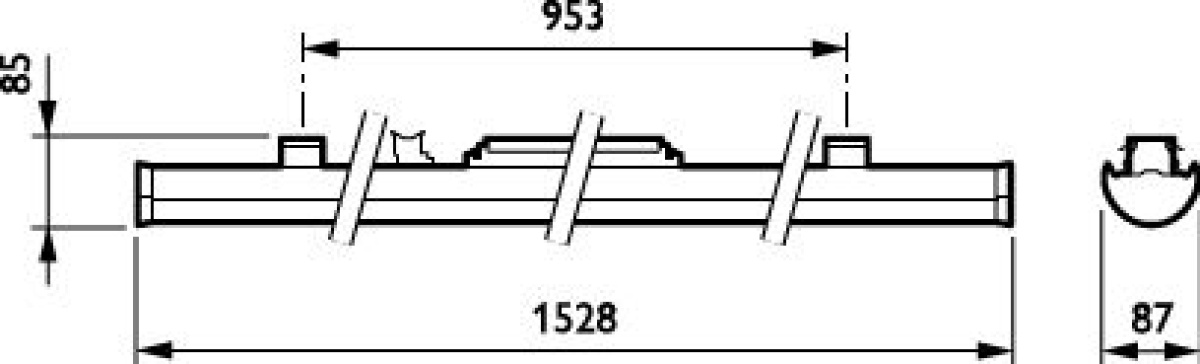

Width
87
Reflector
None
Lamp holder
Other
Conductor cross section
0.5
Connection type
Other
Housing colour
White
Voltage type
AC
Suitable for lamp power
-
-
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
80-89
Number of poles
3
Length
1530
Heightdepth
82
Housing material
Aluminium
Lamp type
LED not exchangeable
Suitable for emergency lighting
No
Light outlet
Direct
Light distribution
Asymmetric
Nominal voltage
220
240
Emergency power supply integrated
No
Degree of protection IP
IP40
With light source
Yes
Suitable for number of light sources
-
With control gear
Yes
Beam angle
21-40 - Medium beam
Nominal current
190
190
Colour temperature
4000
4000
Max. system power
32.2
EF009349
5000
Colour of light
White
Constant light output CLO
No
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
-
EF011871
-
Colour consistency McAdam ellipse
SDCM3
EF011947
20
Rated ambient temperature according to IEC 62722-2-1
25
25
Filament test according to IEC 60695-2-11
650 C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
Yes
Light distributor
Diffuser lensopticpanel
EF012172
155
Dimming DSI
No
Operation by Bluetooth
No
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
90
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
80
Failure rate at median useful life of 50,000 h at 25 C ambient tq
5
Failure rate at median useful life of 100,000 h at 25 C ambient tq
10
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
Yes
Compatible with Casambi
No
Energy efficiency class of the light source according to EU regulation 20192015
C
Power factor
0.9
Meets min. EIA lifetime criterion L90 at 50,000 hours at tq 25 C
Yes
Brands
PHILIPS
