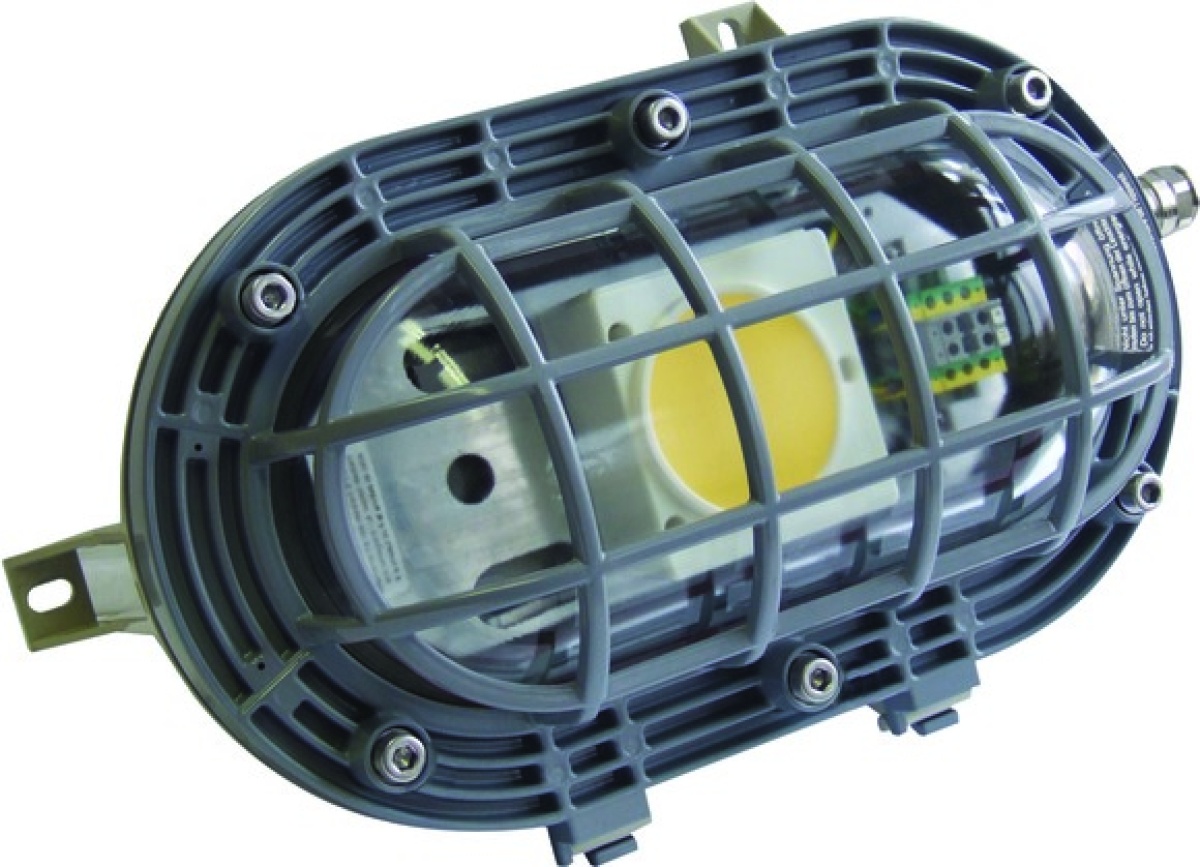

AB05 D IIB LED 1M25X1,52000LM22W
Industry
AB05 D IIB LED 1M25X1,52000LM22W
Manufacturer Ref:
AB052510210301
Nortécnica Ref:
EAN:
4250217403347
Description
Technical Information
Attributes
Mounting method
Wall-/ceiling mounting
EF000004
I
Width
230
Outer diameter
-
Lamp holder
None
Conductor cross section
4
Connection type
Screwed terminal
Voltage type
AC
Suitable for lamp power
22
22
Type of control gear
LED operating device voltage-controlled
Adjustable
No
Number of poles
3
Length
360
Heightdepth
175
Housing material
-
Lamp type
LED not exchangeable
Material cover
Glass transparent
Impact strength
IK10
Nominal voltage
230
230
Degree of protection IP
IP66
For Ex-zone gas
1, 2
With light source
Yes
Suitable for number of light sources
-
With control gear
Yes
Beam angle
41-80° - Wide beam
For Ex-zone dust
21, 22
Nominal current
-
Colour temperature
-
Max. system power
-
EF009349
1.453
Colour of light
-
Constant light output CLO
No
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
-
Degree of protection NEMA
Other
Rated ambient temperature according to IEC 62722-2-1
-
Light distributor
Reflector
EF012172
-
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Power factor
-
