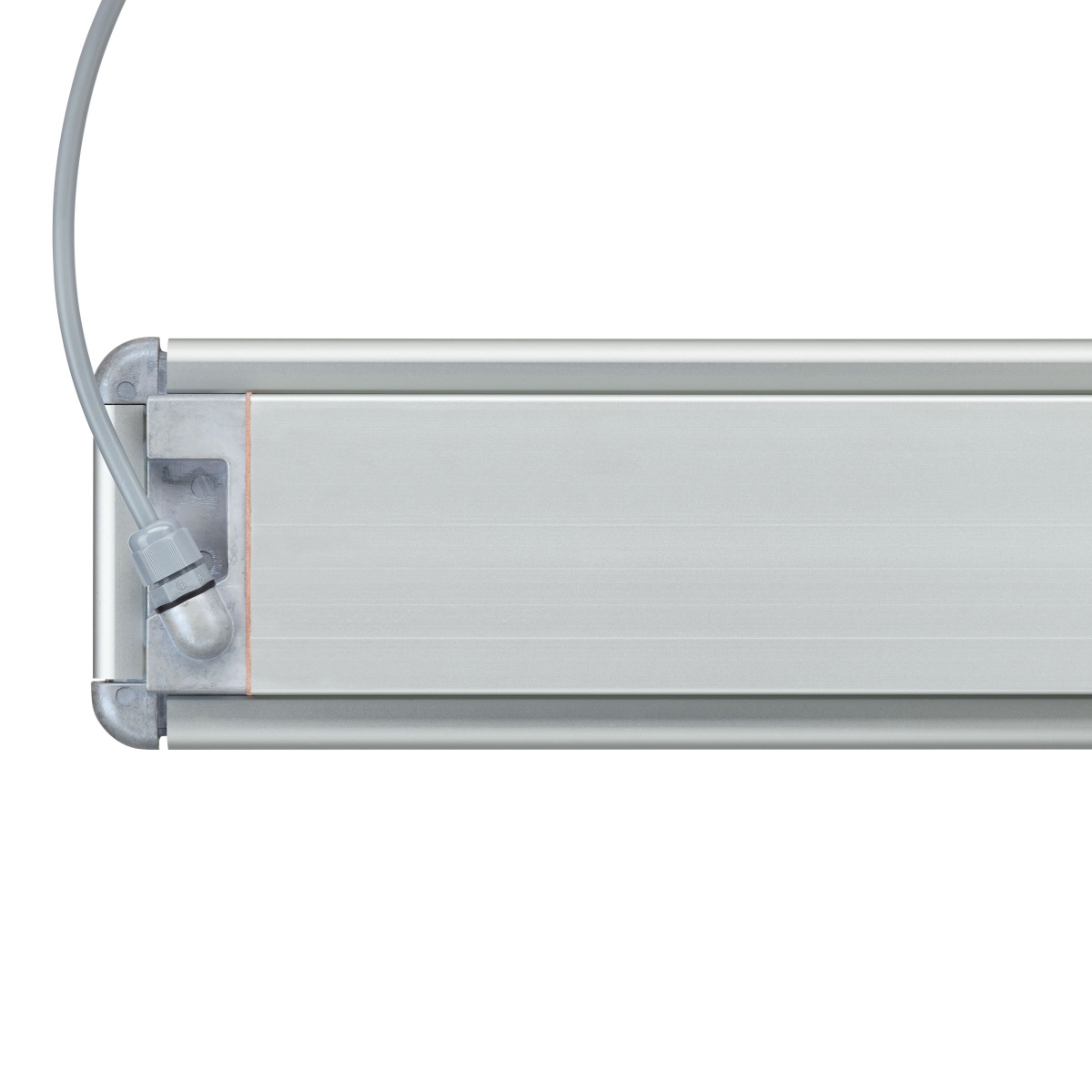

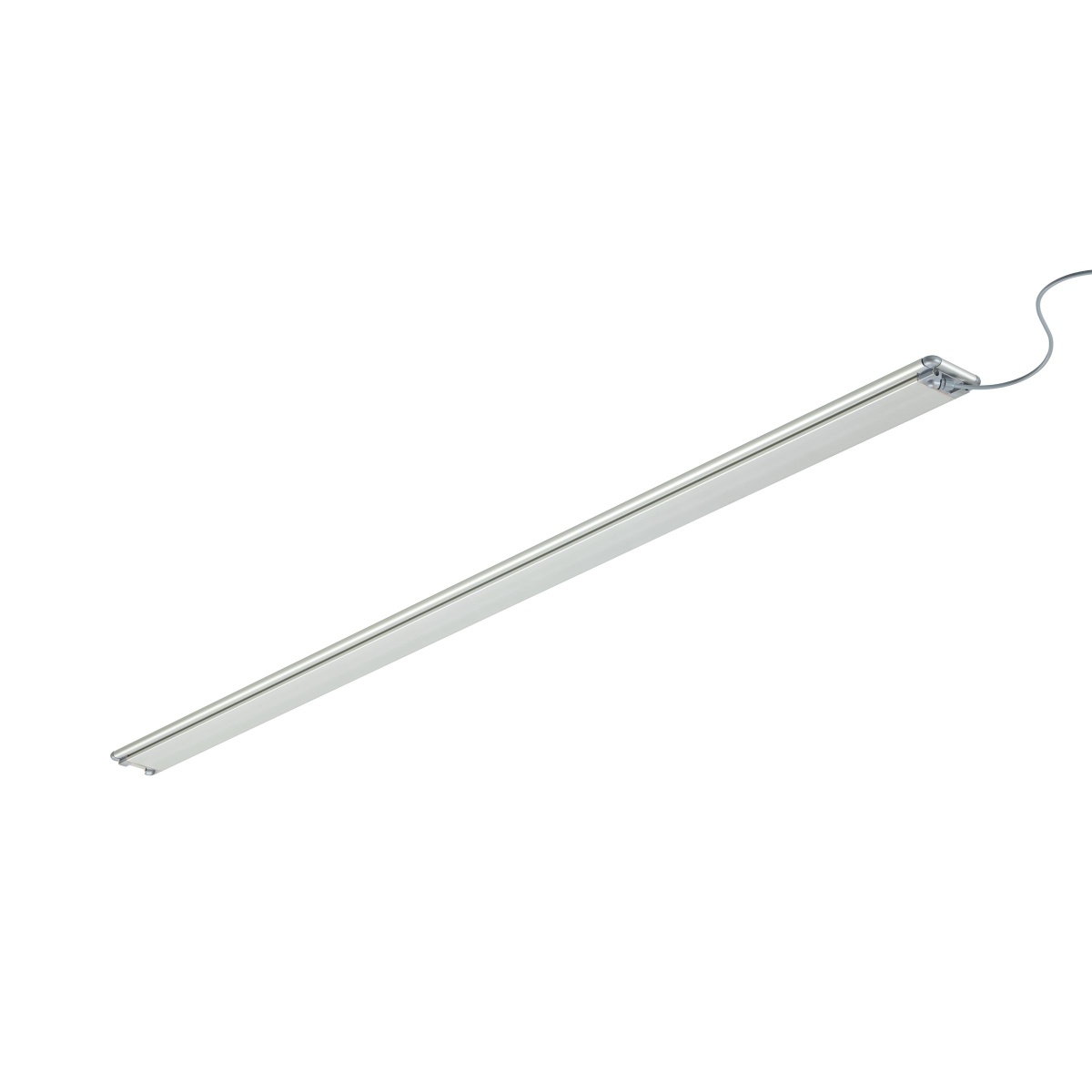

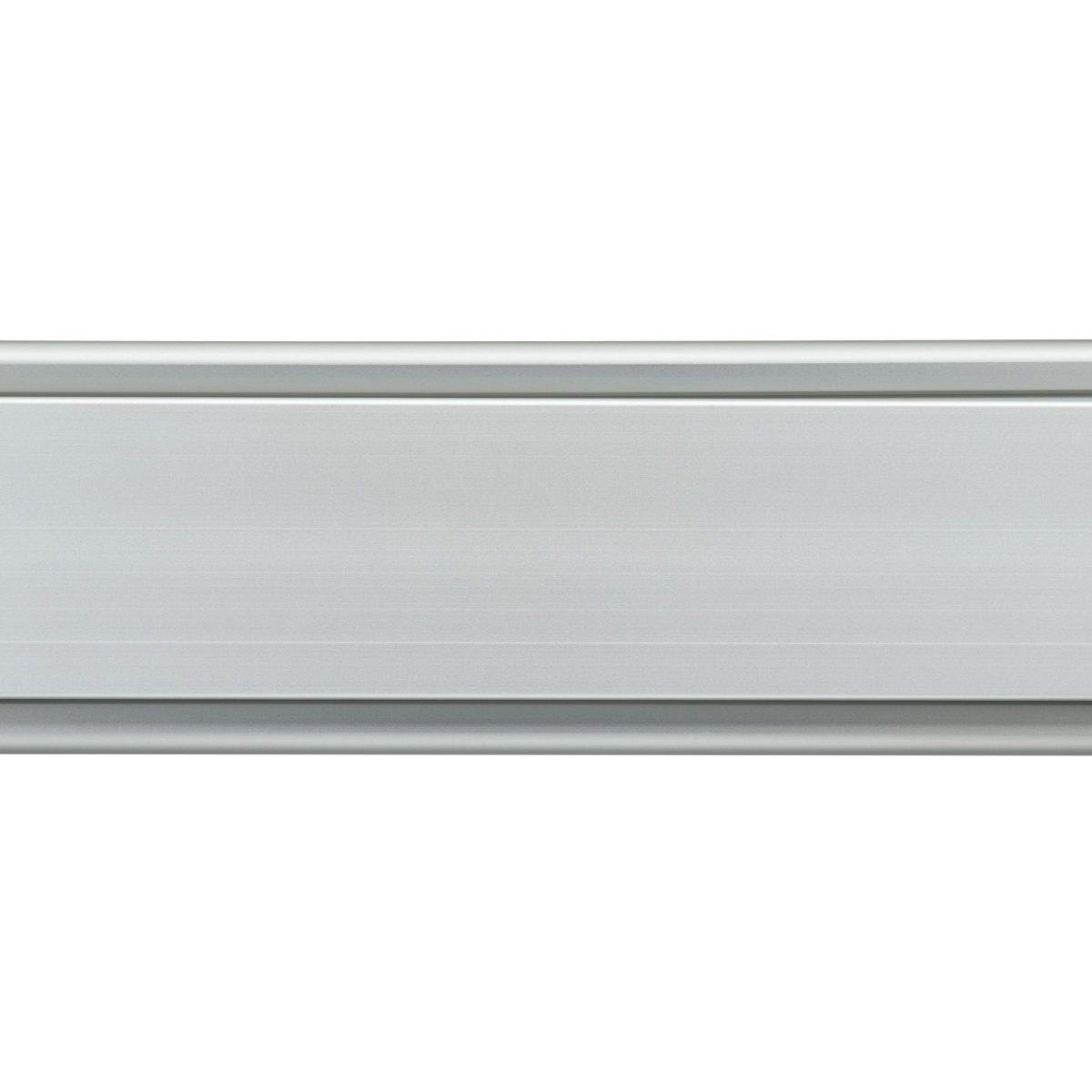

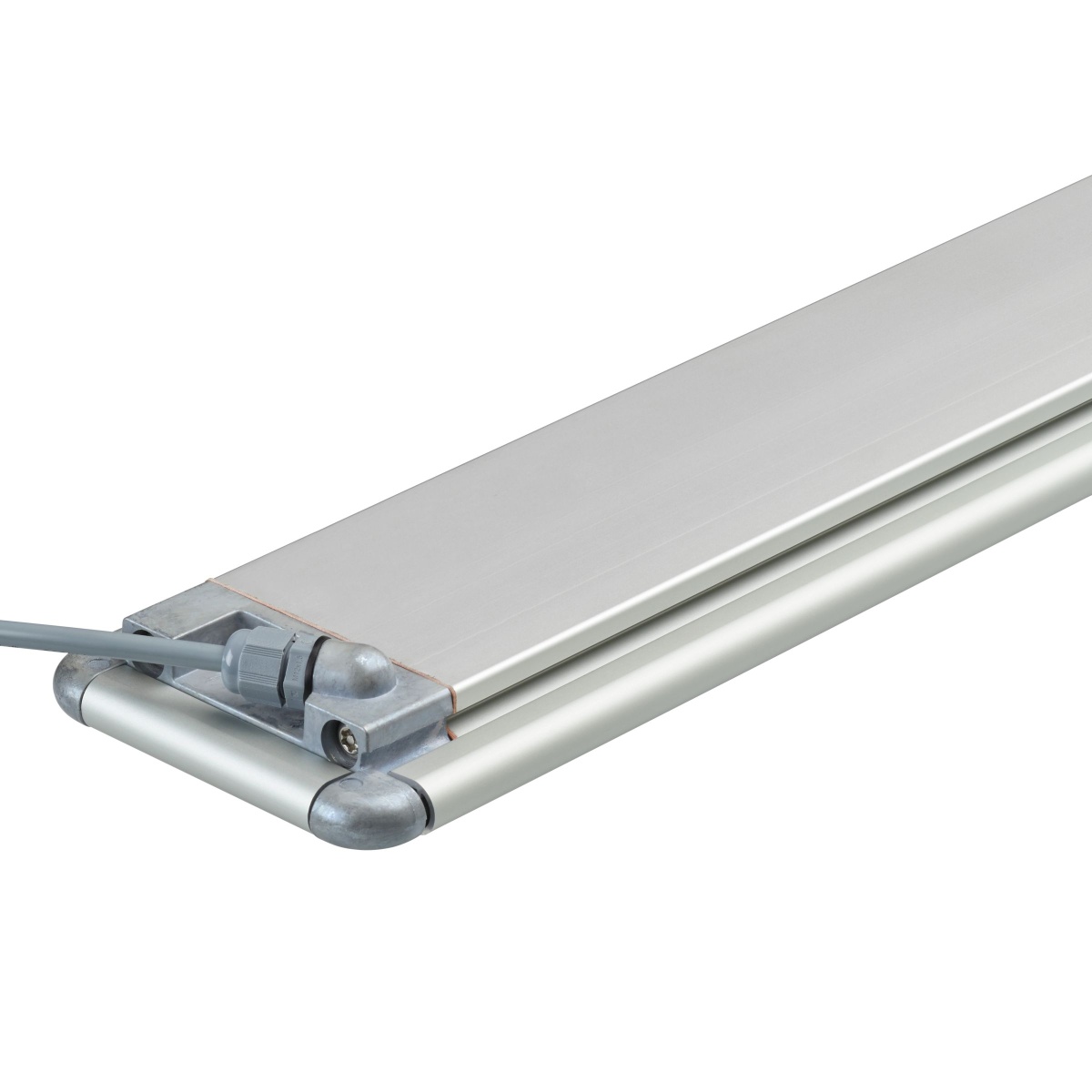

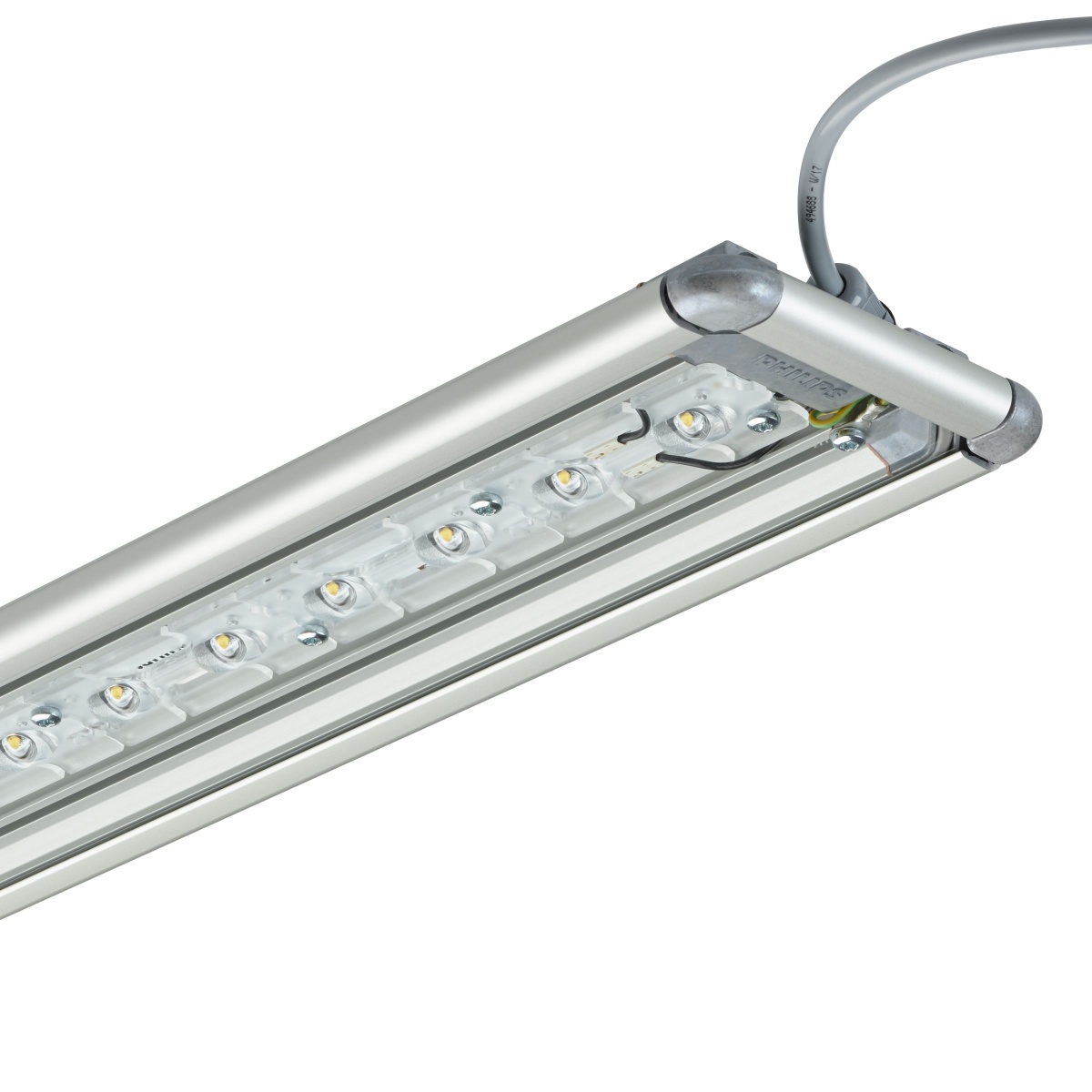

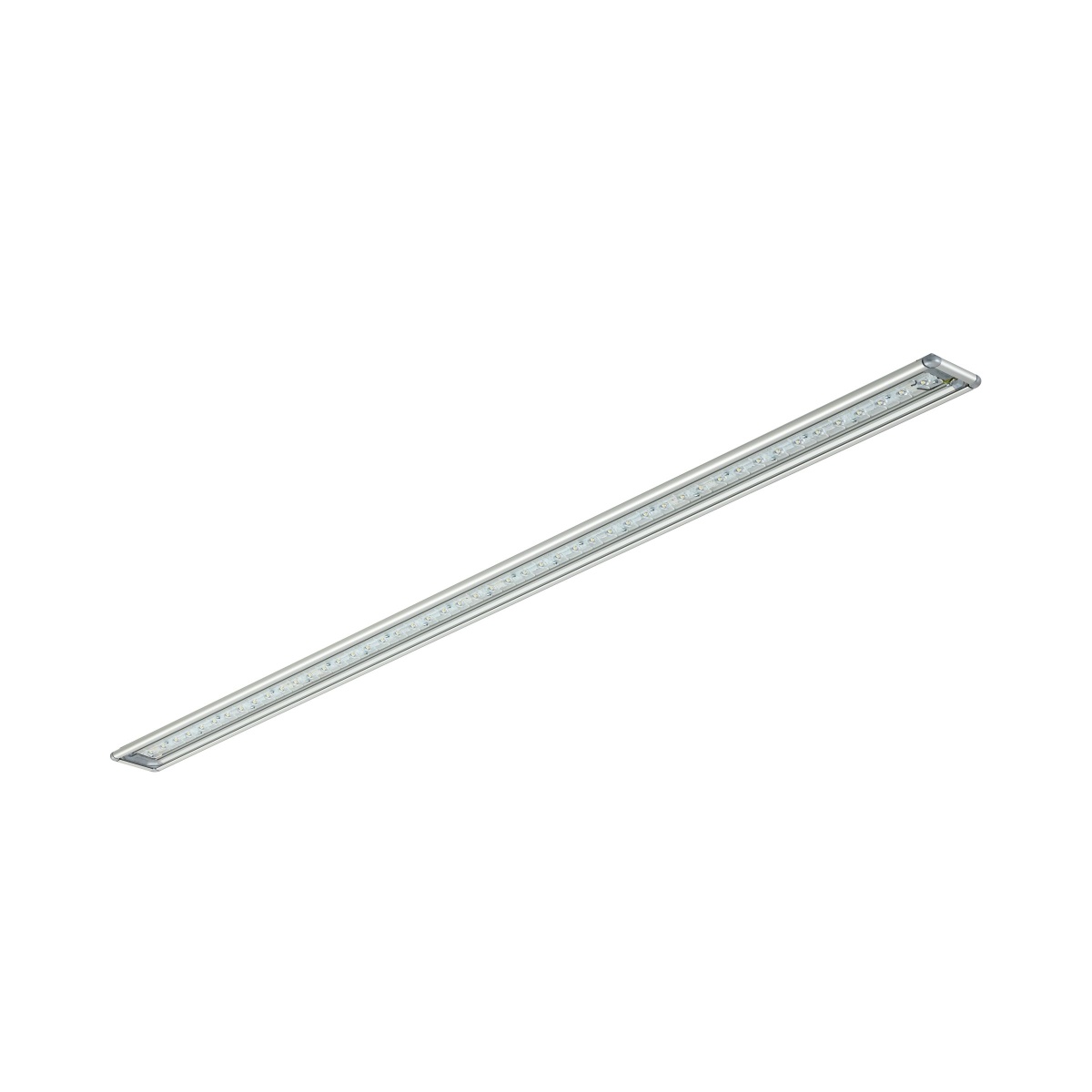

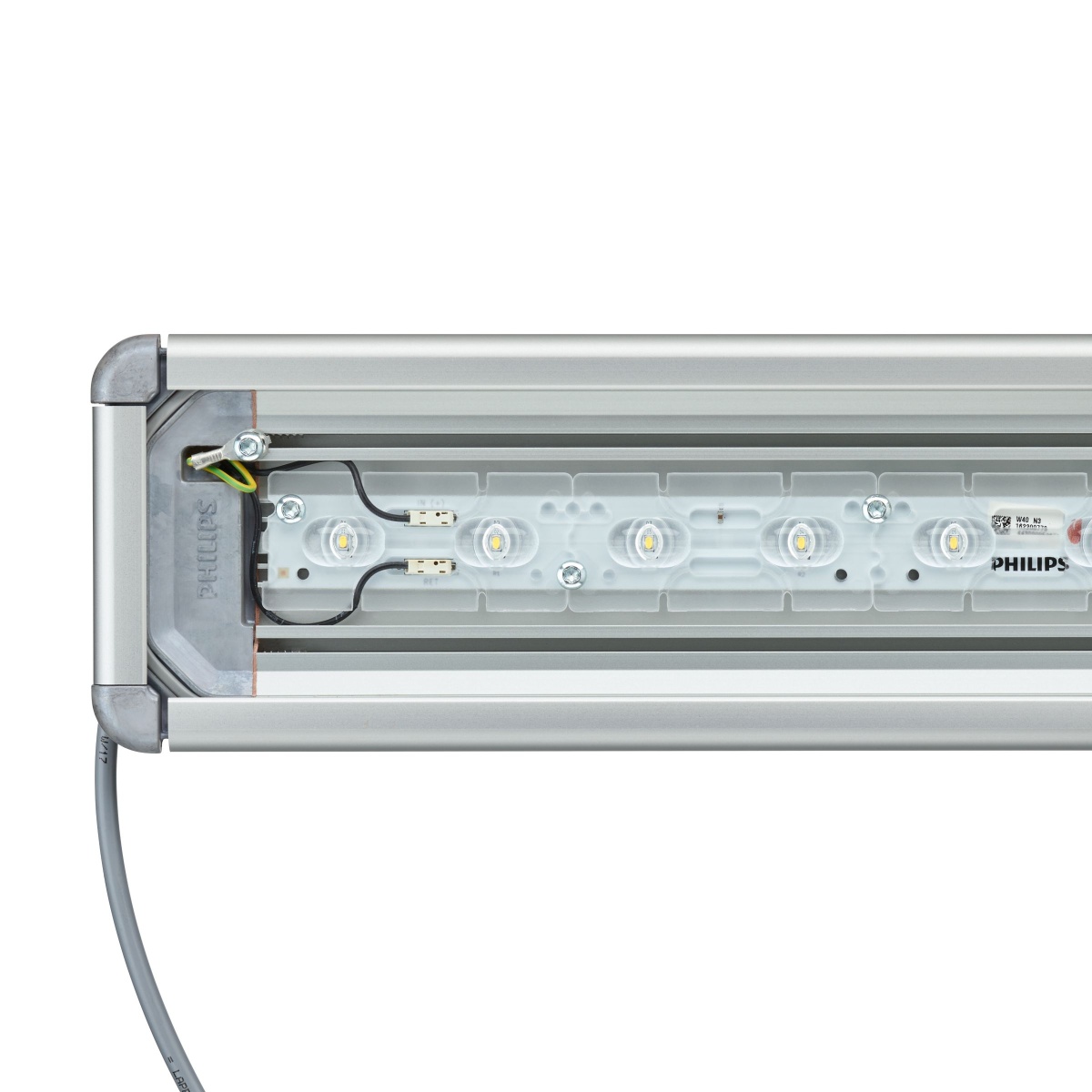

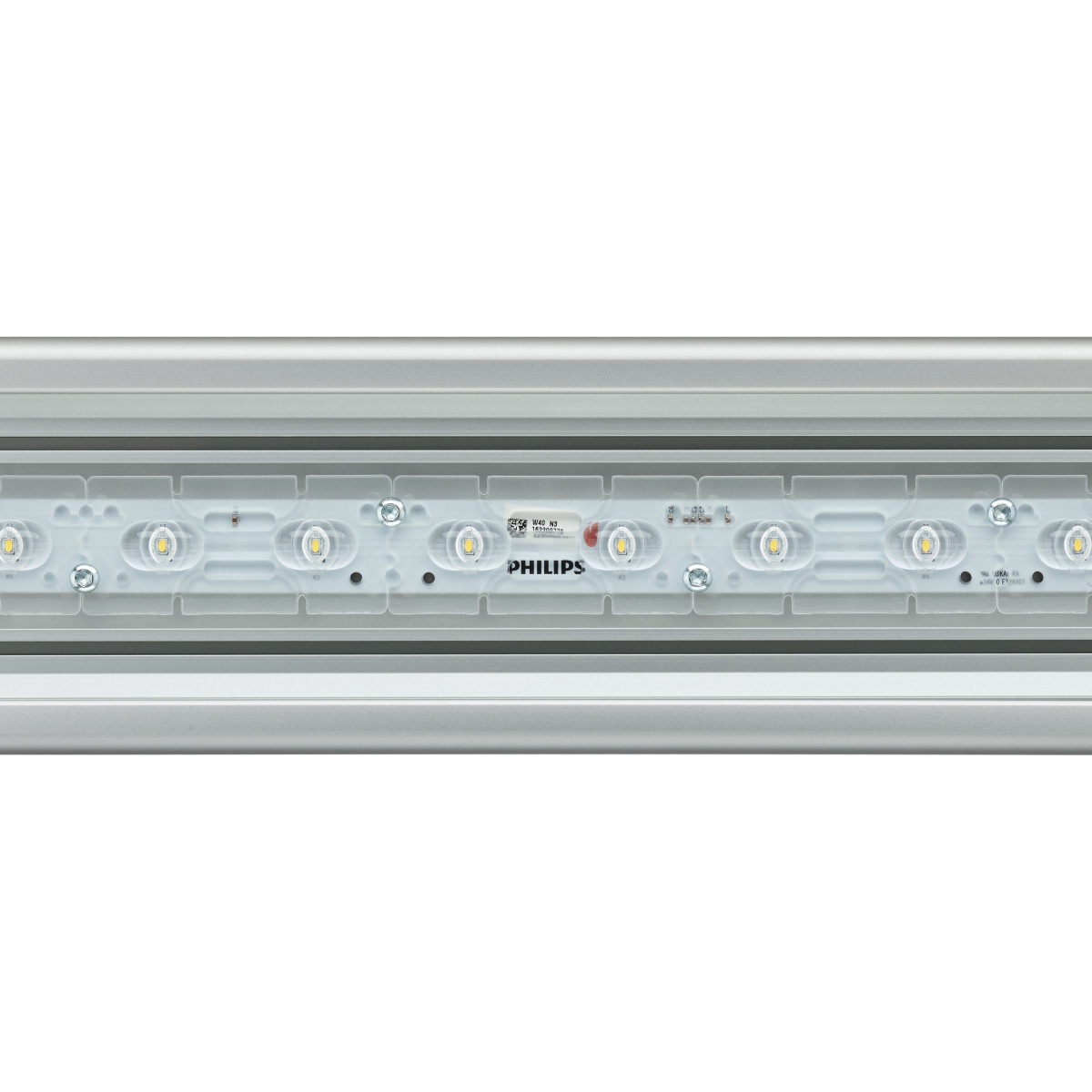

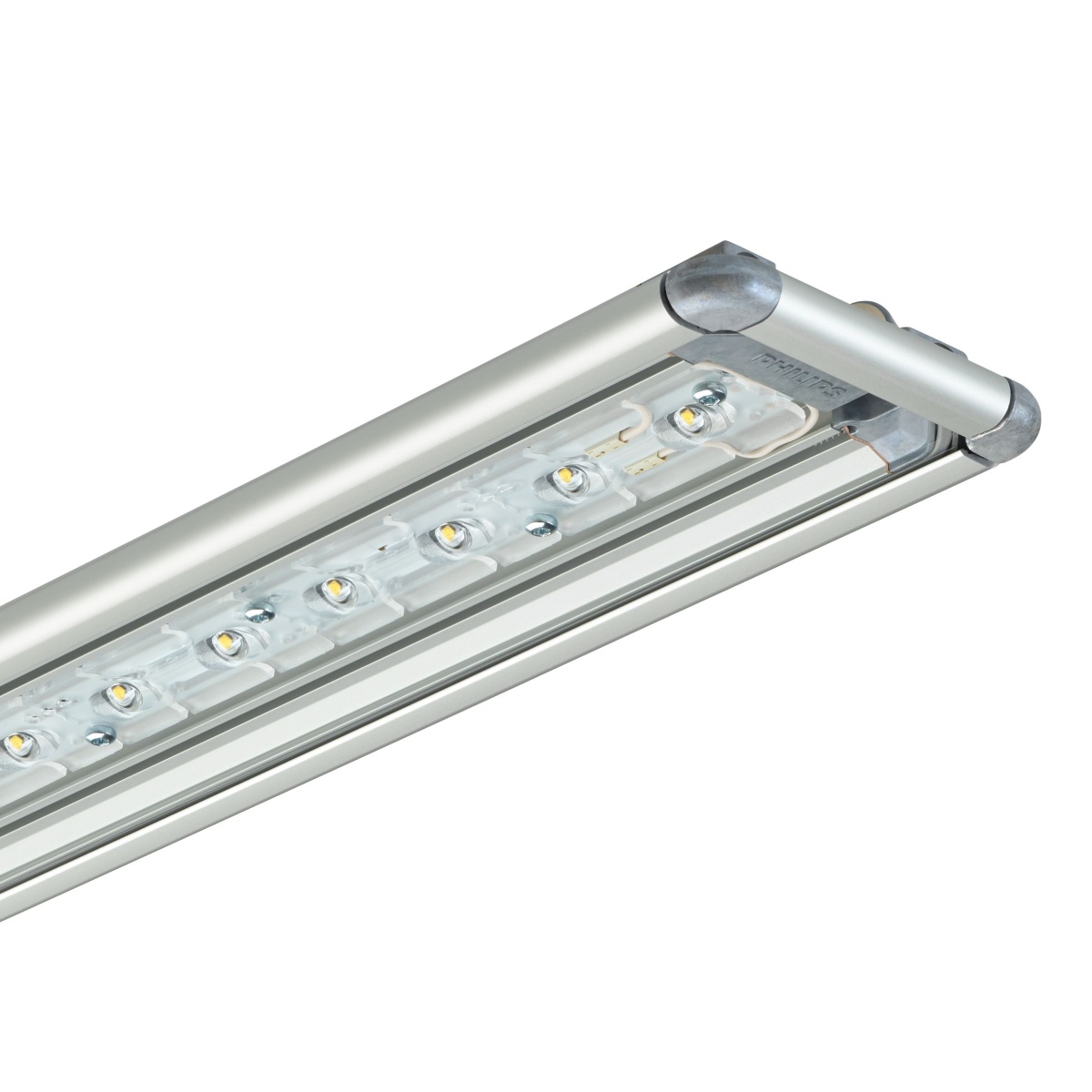

BGP360 LED60740 DTS CFW C250W GP
Industry
BGP360 LED60740 DTS CFW C250W GP
Manufacturer Ref:
09430000
Nortécnica Ref:
EAN:
8718699094300
Description
Technical Information
Attributes
Protection class according to IEC 61140
I
Largura
109
Lamp holder
Other
Secção transversal do condutor
0.5
Connection type
Insulation displacement connector
Voltage type
DC
Suitable for lamp power
-
-
Type of control gear
LED operating device current-controlled
Índice de restituição de cor CRI
70-79
Diâmetro
-
Número de polos
1
Comprimento
1998
Alturaprofundidade
34
Housing material
Aluminium
Lamp type
LED not exchangeable
Suitable for light line configuration
Yes
Impact strength
IK08
Nominal voltage
150
150
Degree of protection IP
IP66
With light source
Yes
Adequado para número de lâmpadas
-
With control gear
No
Nominal current
229
229
Colour temperature
4000
4000
Potência máx. do sistema
35.5
EF009349
5400
Colour of light
White
Constant light output CLO
No
Type of wiring
Ending
Vida útil nominal L70B50 a 25 C
-
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Regulação LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Regulação por redução da onda sinusoidal
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
Yes
Light distributor
None
EF012172
152
Dimming DSI
No
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
98
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
10
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
D
Fator de potência
0.96
Brands
Signify
