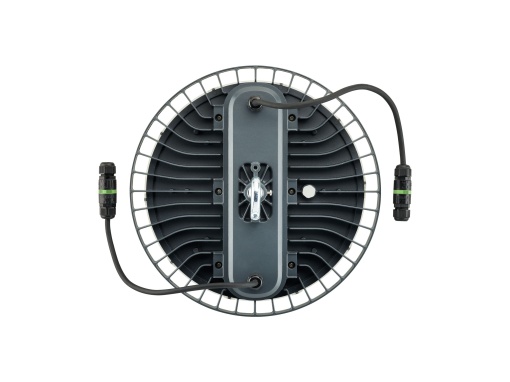

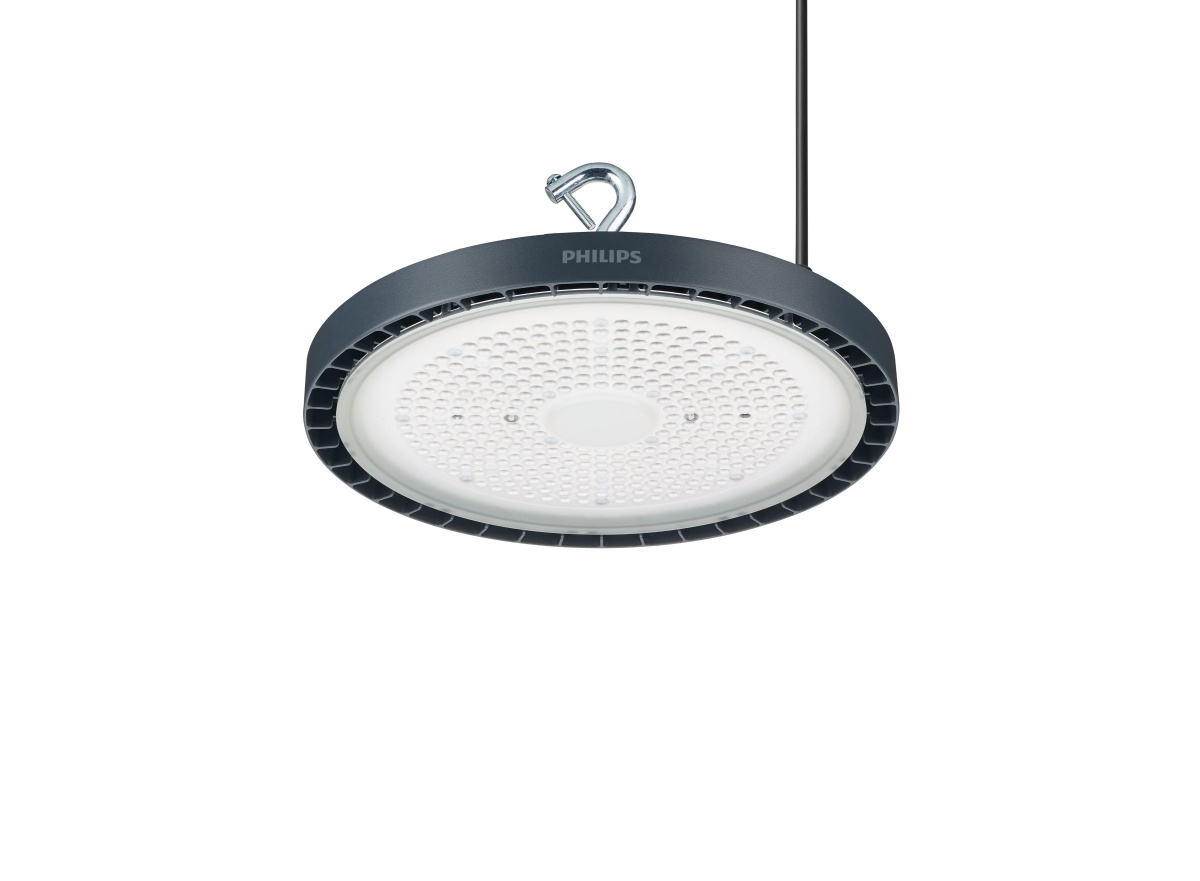

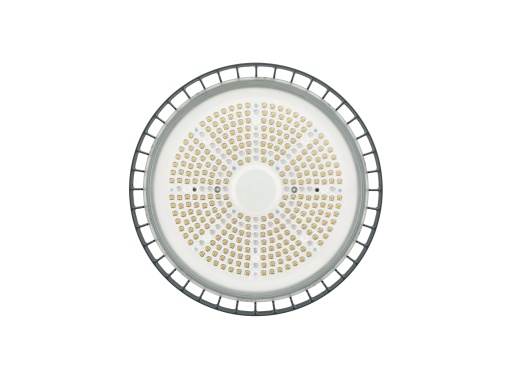

BY121P G5 LED150S840 PSD NB
Industry
BY121P G5 LED150S840 PSD NB
Manufacturer Ref:
95598100
Nortécnica Ref:
EAN:
8719514955981
Description
Technical Information
Attributes
Mounting method
EV006028
Protection class according to IEC 61140
I
Largura
-
Diâmetro externo
330
Reflector
None
Lamp holder
Other
Secção transversal do condutor
1
Connection type
Other
Housing colour
Grey
Voltage type
AC
Suitable for lamp power
83
102
Type of control gear
LED operating device current-controlled
Índice de restituição de cor CRI
80-89
EF001263
No
Número de polos
3
Comprimento
-
Alturaprofundidade
99
Housing material
Aluminium
Lamp type
LED not exchangeable
Reflector colour
Other
Suitable for emergency lighting
No
Light distribution
Symmetric
Material reflector
Other
Impact strength
IK08
Nominal voltage
220
240
EF005138
No
Degree of protection IP
IP65
With protective cover
Yes
With light source
No
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
1
With control gear
Yes
Beam angle
41-80° - Wide beam
Nominal current
440
540
Colour temperature
4000
4000
Potência máx. do sistema
102
EF009349
15000
Colour of light
White
Constant light output CLO
No
Type of wiring
Ending
Vida útil nominal L70B50 a 25 C
75000
Colour consistency McAdam ellipse
SDCM5
EF011947
0.15
Photobiological safety according to EN 62471
RG0
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
35
35
Filament test according to IEC 60695-2-11
650 °C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming potentiometer integrated
No
Regulação LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Regulação por redução da onda sinusoidal
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
No
Light distributor
Focal lens
EF012172
147
Dimming DSI
No
Suitable for auxiliary lamp
No
Operation by Bluetooth
No
Número max. de luminárias por disjuntor C16
13
Número max. de luminárias por disjuntor B16
8
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
85
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
75
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
5
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
10
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
Yes
Energy efficiency class of the light source according to EU regulation 20192015
C
Fator de potência
0.95
Meets min. EIA lifetime criterion L90 at 50,000 hours at tq 25 C
No
Brands
Signify
