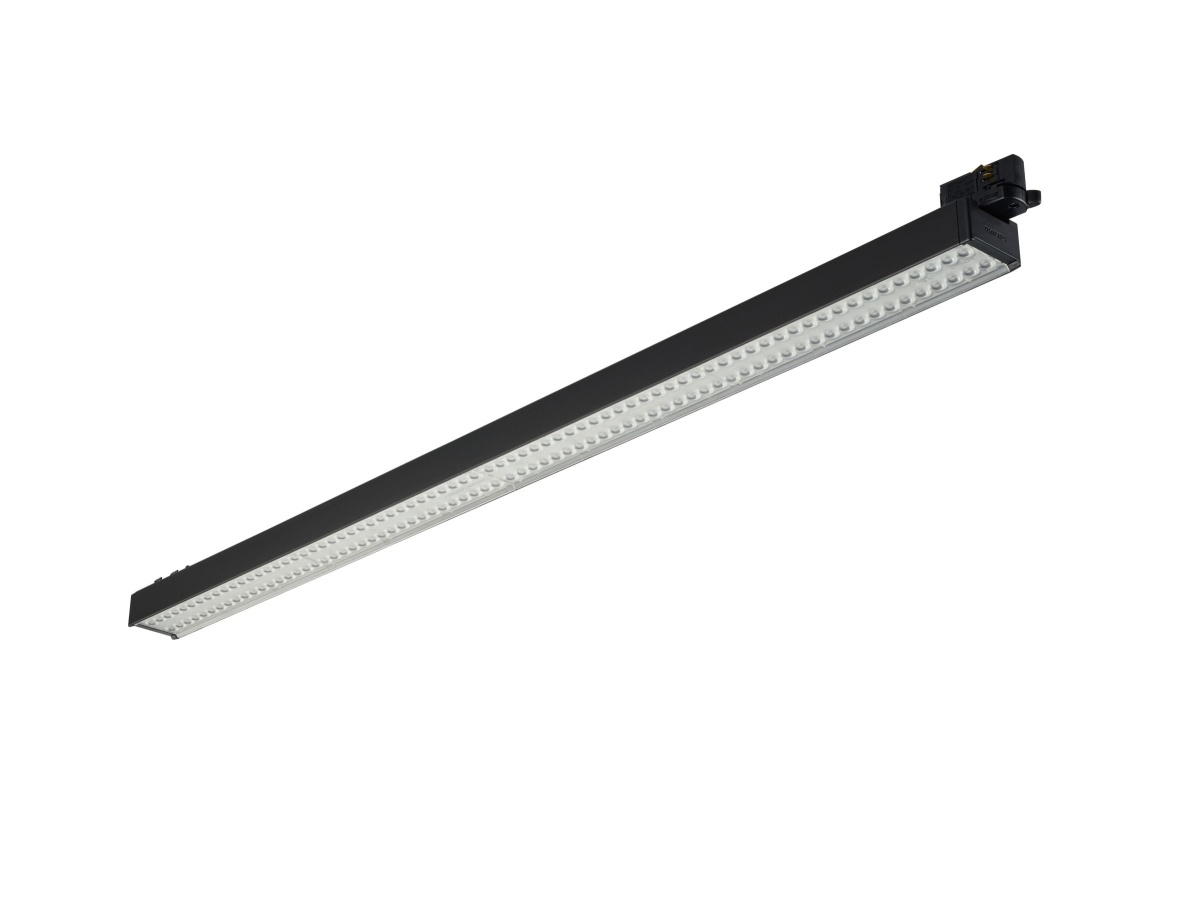

SM504T 61S840 DIA-VLC WB BK
Industry
SM504T 61S840 DIA-VLC WB BK
Manufacturer Ref:
01230100
Nortécnica Ref:
EAN:
8720169012301
Description
Technical Information
Attributes
EF000004
I
Width
64
Reflector
None
Lamp holder
Other
Conductor cross section
0.5
Connection type
Other
Housing colour
Black
Voltage type
AC
Suitable for lamp power
-
-
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
80-89
Number of poles
5
Length
1153
Heightdepth
74
Housing material
Aluminium
Lamp type
LED not exchangeable
Suitable for emergency lighting
No
Light outlet
Direct
Light distribution
Symmetric
Nominal voltage
220
240
Emergency power supply integrated
No
Degree of protection IP
IP20
With light source
Yes
Suitable for number of light sources
4
With control gear
Yes
Beam angle
41-80 - Wide beam
Nominal current
204
204
Colour temperature
4000
4000
Max. system power
47
EF009349
6100
Colour of light
White
Constant light output CLO
No
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
70000
EF011871
-
Colour consistency McAdam ellipse
SDCM3
EF011947
20
Rated ambient temperature according to IEC 62722-2-1
25
25
Filament test according to IEC 60695-2-11
650 C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
No
Light distributor
Diffuser lensopticpanel
EF012172
130
Dimming DSI
No
Operation by Bluetooth
No
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
90
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
80
Failure rate at median useful life of 50,000 h at 25 C ambient tq
5
Failure rate at median useful life of 100,000 h at 25 C ambient tq
10
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
Yes
Compatible with Casambi
No
Energy efficiency class of the light source according to EU regulation 20192015
D
Power factor
0.9
Meets min. EIA lifetime criterion L90 at 50,000 hours at tq 25 C
Yes
Brands
PHILIPS
