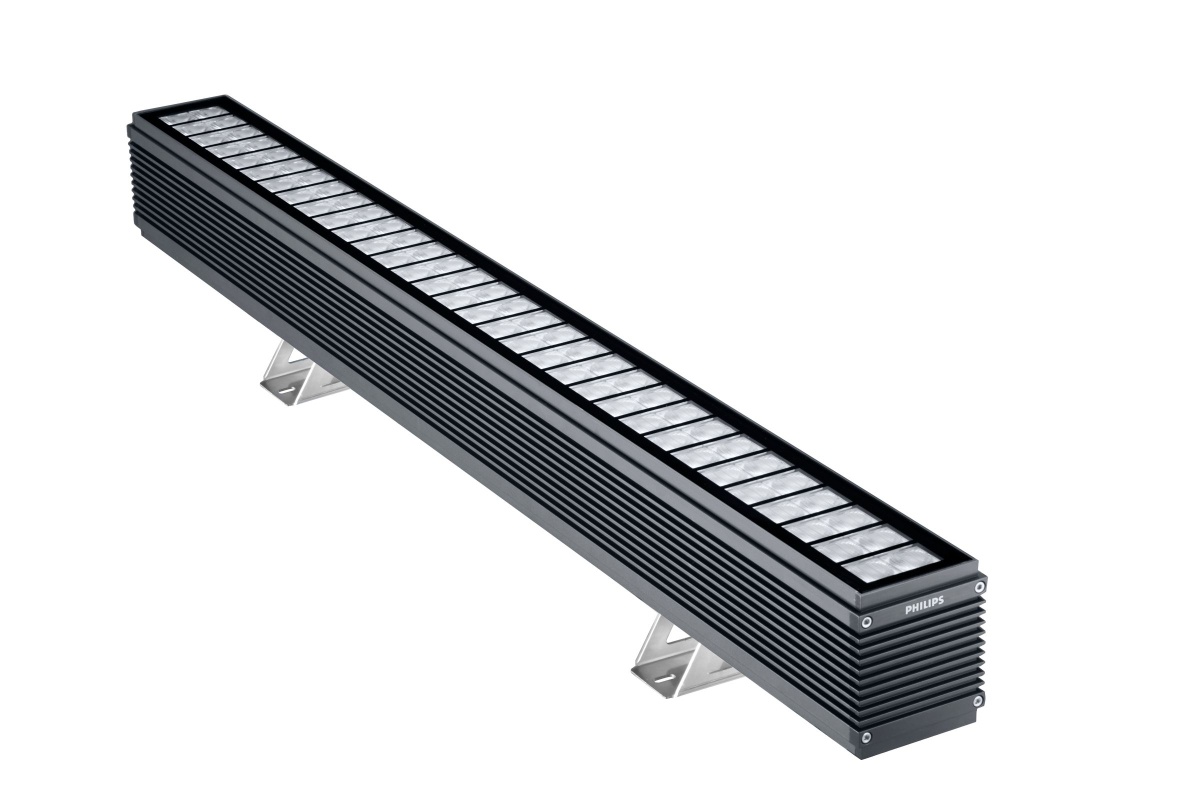

BCP385 60LED 30K 220V A1 L100 D3
Interior
BCP385 60LED 30K 220V A1 L100 D3
Manufacturer Ref:
92346199
Nortécnica Ref:
EAN:
8719514923461
Description
Technical Information
Attributes
Protection class according to IEC 61140
I
Largura
88
Diâmetro externo
-
Reflector
None
Lamp holder
None
Secção transversal do condutor
1.5
Connection type
Solder
Housing colour
Grey
Surface protection
Powder coating
Voltage type
AC
With movement sensor
No
Suitable for lamp power
-
-
Type of control gear
LED operating device current-controlled
Índice de restituição de cor CRI
80-89
Suitable for wall mounting
Yes
Largura para embutir
88
With light sensor
No
Suitable for suspended mounting
No
Intensidade luminosa
-
Número de polos
3
Comprimento
1000
Alturaprofundidade
103
Housing material
Aluminium
Lamp type
LED not exchangeable
Reflector colour
-
Comprimento para embutir
1000
Light outlet
Direct
Light distribution
Symmetric
Material cover
Glass transparent
Impact strength
IK06
Nominal voltage
220
240
EF005138
No
Degree of protection IP
EV006422
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Adequado para número de lâmpadas
-
Suitable for built-in mounting
No
With control gear
Yes
Suitable for workplace according to EN 12464-1
No
Suitable for surface mounting
Yes
Beam angle
5-10° - Extreme narrow beam
Connectable conductor cross section
1
1
Surface brushed
No
Nominal current
-
Colour temperature
2500
3500
Potência máx. do sistema
120
EF009349
6500
Colour of light
White
Adjustability
Rotatable
Suitable for traverse mounting
Yes
Suitable for pedestalfloor mounting
Yes
Suitable for light-track mounting
Yes
Suitable for clamp-mounting
Yes
Constant light output CLO
No
IFTTT support available
No
Luminous flux
5850
7150
Type of wiring
Suitable for loop-through wiring
Vida útil nominal L70B50 a 25 C
-
Colour consistency McAdam ellipse
SDCM4
EF011947
0.2
Photobiological safety according to EN 62471
RG2
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-40
50
Filament test according to IEC 60695-2-11
650 °C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Regulação LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Regulação por redução da onda sinusoidal
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
Yes
Light distributor
Diffuser lens/optic/panel
EF012172
54
Suitable for low voltage cable system
No
Dimming DSI
No
Fator de brilho unificado UGR
-
Operation by Bluetooth
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 35 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 35 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Dimming DALI-2
No
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
No
Built-in diameter
-
-
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for ceiling mounting
Yes
Alturaprofundidade para embutir
-
Fator de potência
0.9
Brands
Signify
Technical Sheet
