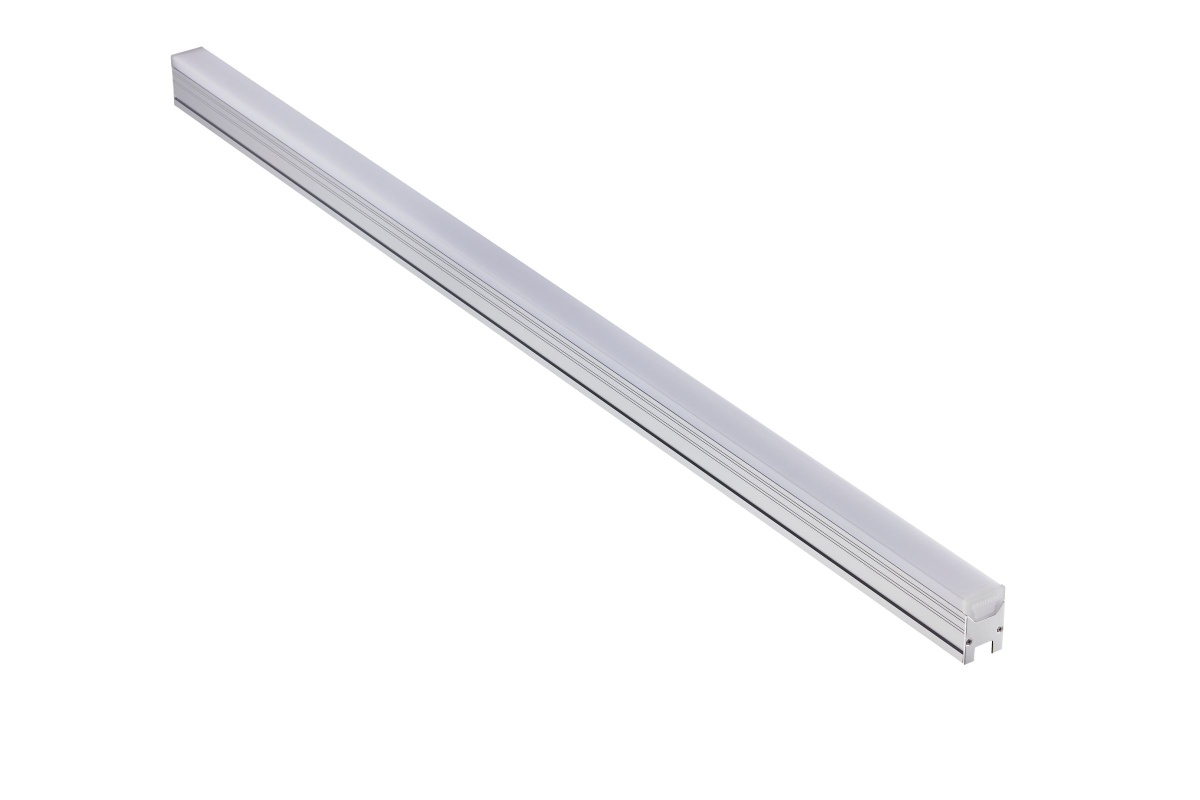

BCS341 18LED 30K 24V OC L30
Interior
BCS341 18LED 30K 24V OC L30
Manufacturer Ref:
52003599
Nortécnica Ref:
EAN:
8720169520035
Description
Technical Information
Attributes
Protection class according to IEC 61140
III
Largura
35
Diâmetro externo
-
Reflector
None
Lamp holder
None
Secção transversal do condutor
1
Connection type
Solder
Housing colour
Silver
Surface protection
Other
Voltage type
DC
With movement sensor
No
Suitable for lamp power
-
-
Type of control gear
LED operating device voltage-controlled
Índice de restituição de cor CRI
80-89
Suitable for wall mounting
Yes
Largura para embutir
-
With light sensor
No
Suitable for suspended mounting
Yes
Intensidade luminosa
-
Número de polos
2
Comprimento
300
Alturaprofundidade
65
Housing material
Aluminium
Lamp type
LED not exchangeable
Reflector colour
-
Comprimento para embutir
-
Light outlet
Direct
Light distribution
Asymmetric
Material cover
Plastic, opal
Impact strength
IK08
Nominal voltage
21.6
26.4
EF005138
No
Degree of protection IP
EV006422
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
Yes
Covering of the luminaire with thermally insulating material possible
No
Adequado para número de lâmpadas
-
Suitable for built-in mounting
No
With control gear
Yes
Suitable for workplace according to EN 12464-1
No
Suitable for surface mounting
Yes
Beam angle
Open beam/diffuse
Connectable conductor cross section
1
1
Surface brushed
No
Nominal current
-
Colour temperature
2500
3500
Potência máx. do sistema
4
EF009349
205
Colour of light
White
Adjustability
Not adjustable
Suitable for traverse mounting
Yes
Suitable for pedestalfloor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
Constant light output CLO
No
IFTTT support available
No
Luminous flux
185
226
Type of wiring
Loop-through wiring included
Vida útil nominal L70B50 a 25 C
-
Colour consistency McAdam ellipse
SDCM4
EF011947
0
Photobiological safety according to EN 62471
RG0
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-40
50
Filament test according to IEC 60695-2-11
650 °C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Regulação LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Regulação por redução da onda sinusoidal
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
Yes
Light distributor
Diffuser lens/optic/panel
EF012172
51
Suitable for low voltage cable system
Yes
Dimming DSI
No
Fator de brilho unificado UGR
-
Operation by Bluetooth
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 35 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 35 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Dimming DALI-2
No
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
No
Built-in diameter
-
-
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for ceiling mounting
Yes
Alturaprofundidade para embutir
-
Fator de potência
0.9
Brands
Signify
