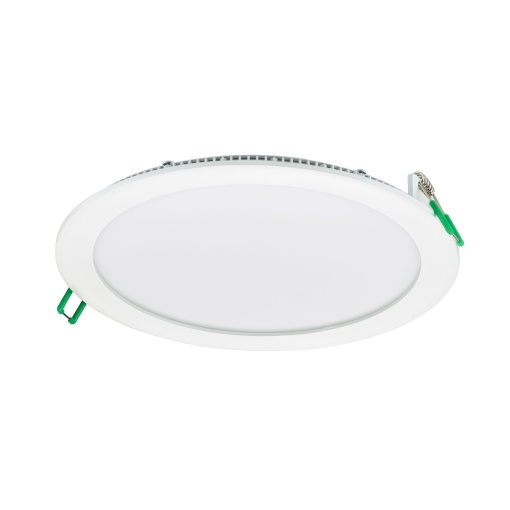

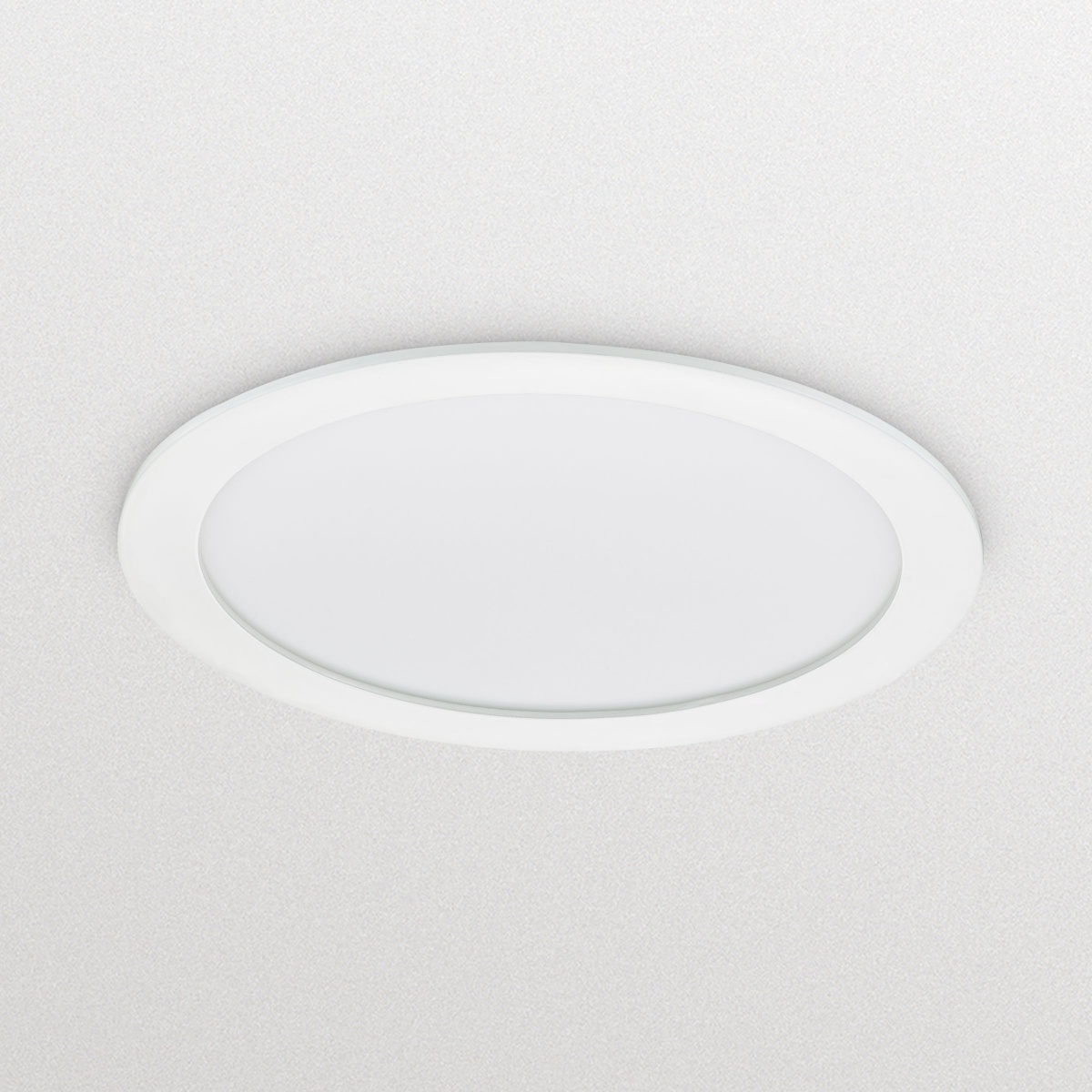

DN145B LED20S840 WIA-E WH
Interior
DN145B LED20S840 WIA-E WH
Manufacturer Ref:
97644699
Nortécnica Ref:
EAN:
8718699976446
Description
Technical Information
Attributes
Protection class according to IEC 61140
II
Width
-
Outer diameter
217
Reflector
None
Lamp holder
Other
Conductor cross section
1.5
Connection type
Other
Housing colour
White
Surface protection
Powder coating
Voltage type
AC
With movement sensor
No
Suitable for lamp power
-
-
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
80-89
Suitable for wall mounting
No
Built-in width
-
With light sensor
No
Suitable for suspended mounting
No
EF001357
-
Number of poles
2
Length
217
Heightdepth
28
Housing material
Aluminium
Lamp type
LED not exchangeable
Reflector colour
Other
Built-in length
-
Light outlet
Direct
Light distribution
Symmetric
Material cover
Plastic opal
Impact strength
IK02
Nominal voltage
220
240
Emergency power supply integrated
No
EF005474
EV006405
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Suitable for number of light sources
1
Suitable for built-in mounting
Yes
With control gear
Yes
Suitable for workplace according to EN 12464-1
No
Suitable for surface mounting
No
Beam angle
Open beamdiffuse
Connectable conductor cross section
0.5
1.5
Surface brushed
Yes
Nominal current
475
525
Colour temperature
4000
4000
Max. system power
22.5
EF009349
2100
Colour of light
White
Adjustability
Not adjustable
Suitable for traverse mounting
No
Suitable for pedestalfloor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
Constant light output CLO
No
IFTTT support available
No
EF011587
1900
2300
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
50000
Colour consistency McAdam ellipse
SDCM3
EF011947
20
Photobiological safety according to EN 62471
RG0
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
0
35
Filament test according to IEC 60695-2-11
650 C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
Yes
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
Yes
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
Yes
Dimming with push-button
No
EF012169
No
Light distributor
Diffuser lensopticpanel
EF012172
93
Suitable for low voltage cable system
No
Dimming DSI
No
Unified Glare Ratio UGR
28
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
40
Max. number of luminaires per miniature circuit breaker B16 MCB
24
Lumen maintenance at median useful life of 35,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
70
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 35,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
10
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Dimming DALI-2
No
Flickering value Pst LM
1
Stroboscope effect value SVM
0.4
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
Yes
Built-in diameter
203
208
Energy efficiency class of the light source according to EU regulation 20192015
F
Suitable for ceiling mounting
Yes
Built-in heightdepth
28
Power factor
0.9
Brands
PHILIPS
