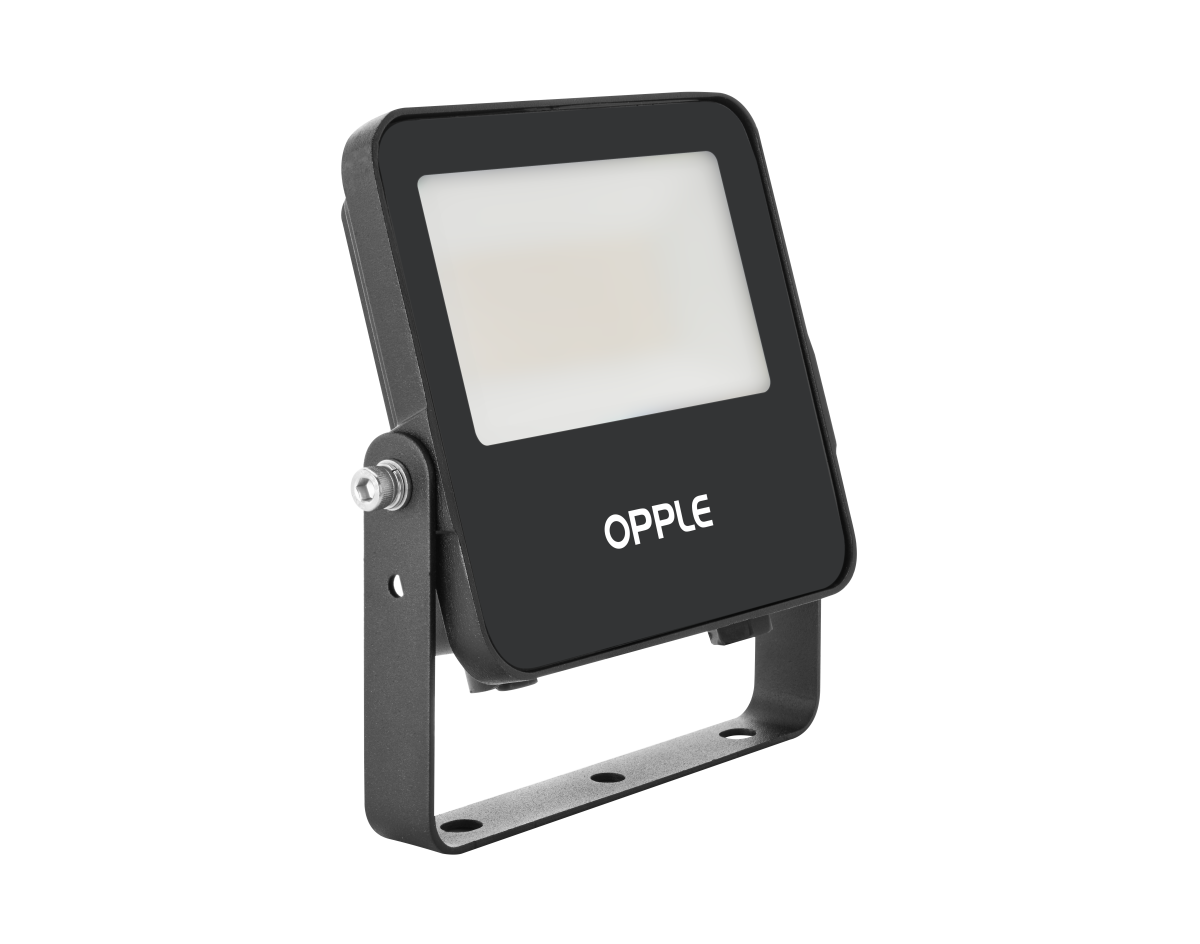

LEDFlood-E3 Re144-30W-840-BL
Interior
LEDFlood-E3 Re144-30W-840-BL
Manufacturer Ref:
709000072800
Nortécnica Ref:
68709000072800
EAN:
6941497776549
Description
Technical Information
Attributes
EF000004
I
Width
133
Outer diameter
-
Reflector
-
Lamp holder
None
Conductor cross section
-
Connection type
-
Housing colour
Black
Surface protection
-
Voltage type
AC
With movement sensor
No
Suitable for lamp power
-
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
80-89
Suitable for wall mounting
Yes
Built-in width
-
With light sensor
No
Suitable for suspended mounting
No
EF001357
-
Number of poles
-
Length
172
Heightdepth
34
Housing material
Aluminium
Lamp type
LED not exchangeable
Reflector colour
-
Built-in length
-
Light outlet
Direct
Light distribution
Symmetric
Material cover
Glass opal
Impact strength
IK07
Nominal voltage
220
240
Emergency power supply integrated
No
Degree of protection IP
EV006422
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
-
Suitable for number of light sources
-
Suitable for built-in mounting
No
With control gear
Yes
Suitable for workplace according to EN 12464-1
-
Suitable for surface mounting
Yes
Beam angle
80 - Extreme wide beam
Connectable conductor cross section
-
Surface brushed
No
Nominal current
-
Colour temperature
4000
4000
Max. system power
30
EF009349
3900
Colour of light
White
Adjustability
Swivelling
Suitable for traverse mounting
No
Suitable for pedestalfloor mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Constant light output CLO
No
IFTTT support available
No
EF011587
-
3900
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
50000
Colour consistency McAdam ellipse
SDCM4
EF011947
-
Photobiological safety according to EN 62471
RG1
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-30
50
Filament test according to IEC 60695-2-11
850 C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
Yes
Light distributor
Diffuser lensopticpanel
EF012172
130
Suitable for low voltage cable system
No
Dimming DSI
No
Unified Glare Ratio UGR
-
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
31
Max. number of luminaires per miniature circuit breaker B16 MCB
18
Lumen maintenance at median useful life of 35,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 35,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Dimming DALI-2
No
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
No
Built-in diameter
-
Energy efficiency class of the light source according to EU regulation 20192015
D
Suitable for ceiling mounting
Yes
Built-in heightdepth
-
Power factor
0.9
Brands
OPPLE
Technical Sheet
