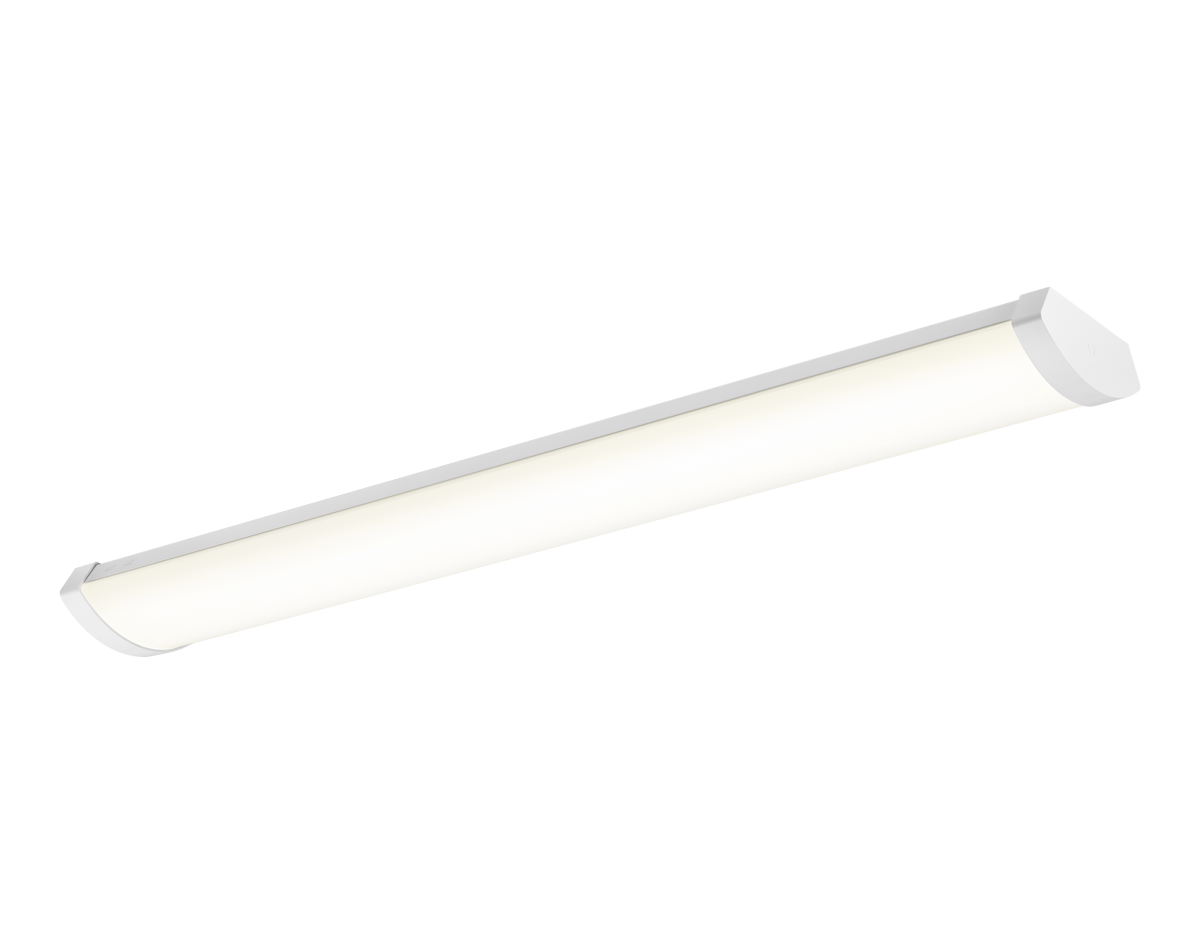

LEDLinear-E2 L12-2236W-830840
Interior
LEDLinear-E2 L12-2236W-830840
Manufacturer Ref:
531000019000
Nortécnica Ref:
68531000019000
EAN:
6941491742861
Description
Technical Information
Attributes
Protection class according to IEC 61140
I
Largura
180
Diâmetro externo
-
Lamp holder
-
Secção transversal do condutor
1
Connection type
Push-in clamp
Housing colour
White
Voltage type
ACDC
With movement sensor
No
Suitable for lamp power
-
Type of grid
-
Type of control gear
LED operating device current-controlled
Índice de restituição de cor CRI
80-89
Suitable for wall mounting
Yes
Largura para embutir
-
Built-in diameter
-
With light sensor
No
Suitable for suspended mounting
No
Intensidade luminosa
-
Número de polos
-
Comprimento
1200
Alturaprofundidade
75
Housing material
Steel
Lamp type
LED not exchangeable
Comprimento para embutir
-
Suitable for light line configuration
No
Suitable for emergency lighting
Yes
Light outlet
Direct
Light distribution
Symmetric
Material cover
Plastic mattsatinized
Impact strength
IK02
Nominal voltage
220
240
EF005138
No
Degree of protection IP
EV006418
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
-
Adequado para número de lâmpadas
-
Suitable for built-in mounting
No
With control gear
Yes
Suitable for workplace according to EN 12464-1
-
Suitable for surface mounting
Yes
Beam angle
80 - Extreme wide beam
Nominal current
350
350
Colour temperature
3000
4000
Potência máx. do sistema
36
EF009349
4680
Colour of light
White
With air slots
No
Constant light output CLO
No
IFTTT support available
No
Type of wiring
Ending
Vida útil nominal L70B50 a 25 C
70000
Colour consistency McAdam ellipse
SDCM6
EF011947
-
Photobiological safety according to EN 62471
RG1
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-25
40
Filament test according to IEC 60695-2-11
650 C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Regulação LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Regulação por redução da onda sinusoidal
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
Yes
Light distributor
Diffuser lensopticpanel
EF012172
130
Dimming DSI
No
Fator de brilho unificado UGR
22
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Número max. de luminárias por disjuntor C16
43
Número max. de luminárias por disjuntor B16
25
Depreciação do fluxo luminoso; vida útil média de 35 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Lumen maintenance at median useful life of 75,000 h at 25 C ambient tq
-
Taxa de falha, vida operacional média 35 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Failure rate at median useful life of 75,000 h at 25 C ambient tq
-
Dimming DALI-2
No
Valor estroboscópico Pst LM
1
Valor de efeito estroboscópico SVM
-
Colour of light adjustable
Positions
Luminous flux adjustable
Positions
Beam angle adjustable
No
Exchangeable control gear
Yes
Compatible with Casambi
No
Energy efficiency class of the light source according to EU regulation 20192015
C
Suitable for ceiling mounting
No
Alturaprofundidade para embutir
-
Surface protection housing
-
Fator de potência
0.9
Meets min. EIA lifetime criterion L90 at 50,000 hours at tq 25 C
-
Brands
OPPLE
