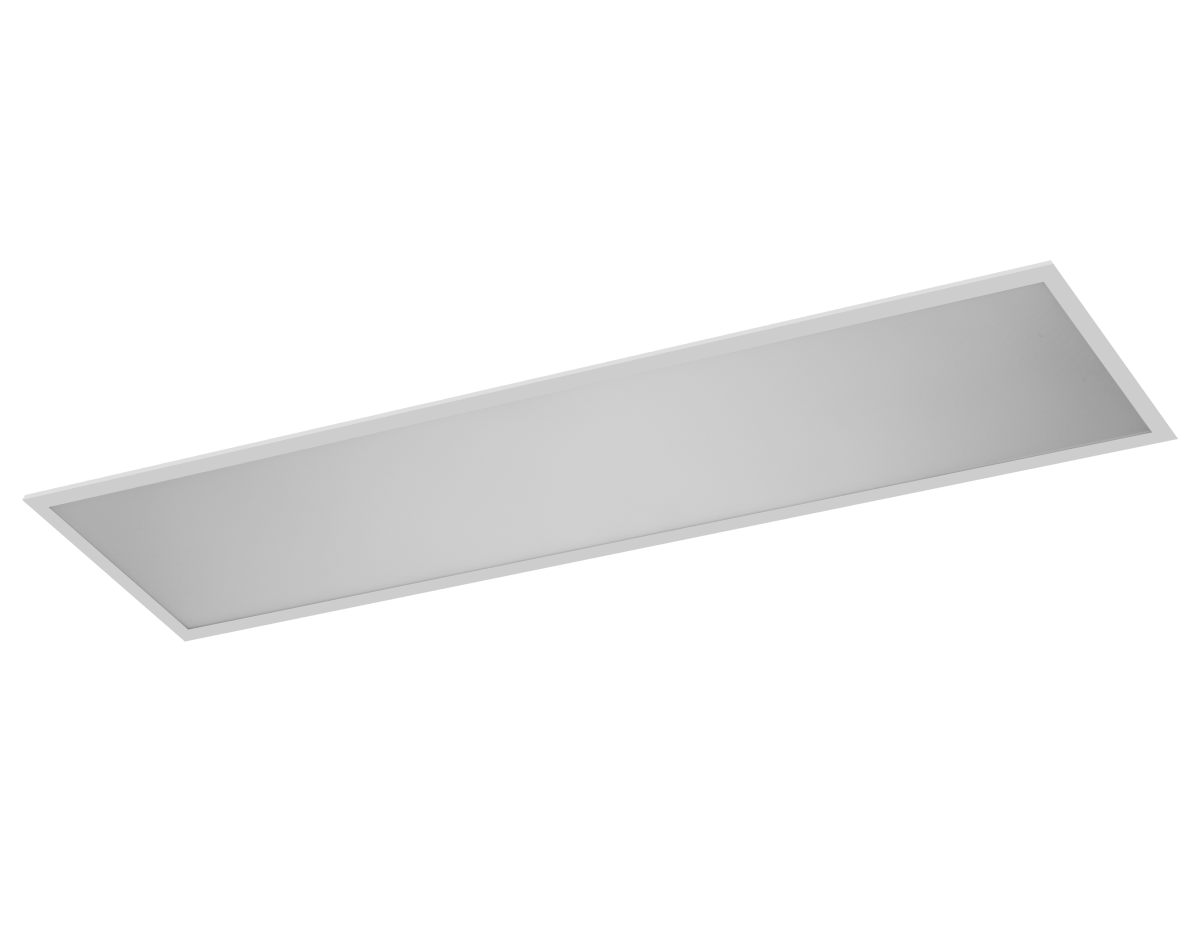

LEDPanelS-B3 Re295-32W-840-U19
Interior
LEDPanelS-B3 Re295-32W-840-U19
Manufacturer Ref:
542003097200
Nortécnica Ref:
68542003097200
EAN:
6941497771438
Description
Technical Information
Attributes
EF000004
II
Width
295
Outer diameter
-
Lamp holder
-
Conductor cross section
-
Connection type
Free conductor end
Housing colour
White
Voltage type
ACDC
With movement sensor
No
Suitable for lamp power
-
Type of grid
None
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
80-89
Suitable for wall mounting
No
Built-in width
-
Built-in diameter
-
With light sensor
No
Suitable for suspended mounting
Yes
EF001357
-
Number of poles
-
Length
1195
Heightdepth
35
Housing material
Aluminium
Lamp type
LED not exchangeable
Built-in length
-
Suitable for light line configuration
No
Suitable for emergency lighting
No
Light outlet
Direct
Light distribution
Symmetric
Material cover
Plastic structured
Impact strength
IK03
Nominal voltage
220
240
Emergency power supply integrated
No
Degree of protection IP
EV006405
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Suitable for number of light sources
-
Suitable for built-in mounting
Yes
With control gear
Yes
Suitable for workplace according to EN 12464-1
Yes
Suitable for surface mounting
Yes
Beam angle
80 - Extreme wide beam
Nominal current
790
790
Colour temperature
4000
4000
Max. system power
32
EF009349
3840
Colour of light
White
With air slots
No
Constant light output CLO
No
IFTTT support available
No
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
50000
Colour consistency McAdam ellipse
SDCM4
EF011947
-
Photobiological safety according to EN 62471
RG0
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-10
45
Filament test according to IEC 60695-2-11
650 C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
Yes
Light distributor
Diffuser lensopticpanel
EF012172
120
Dimming DSI
No
Unified Glare Ratio UGR
19
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
30
Max. number of luminaires per miniature circuit breaker B16 MCB
12
Lumen maintenance at median useful life of 35,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 75,000 h at 25 C ambient tq
-
Failure rate at median useful life of 35,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 75,000 h at 25 C ambient tq
-
Dimming DALI-2
No
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
Yes
Compatible with Casambi
No
Energy efficiency class of the light source according to EU regulation 20192015
D
Suitable for ceiling mounting
Yes
Built-in heightdepth
-
Surface protection housing
-
Power factor
0.9
Meets min. EIA lifetime criterion L90 at 50,000 hours at tq 25 C
-
Brands
OPPLE
