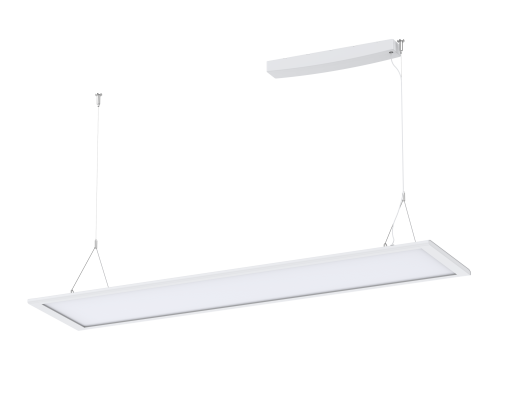

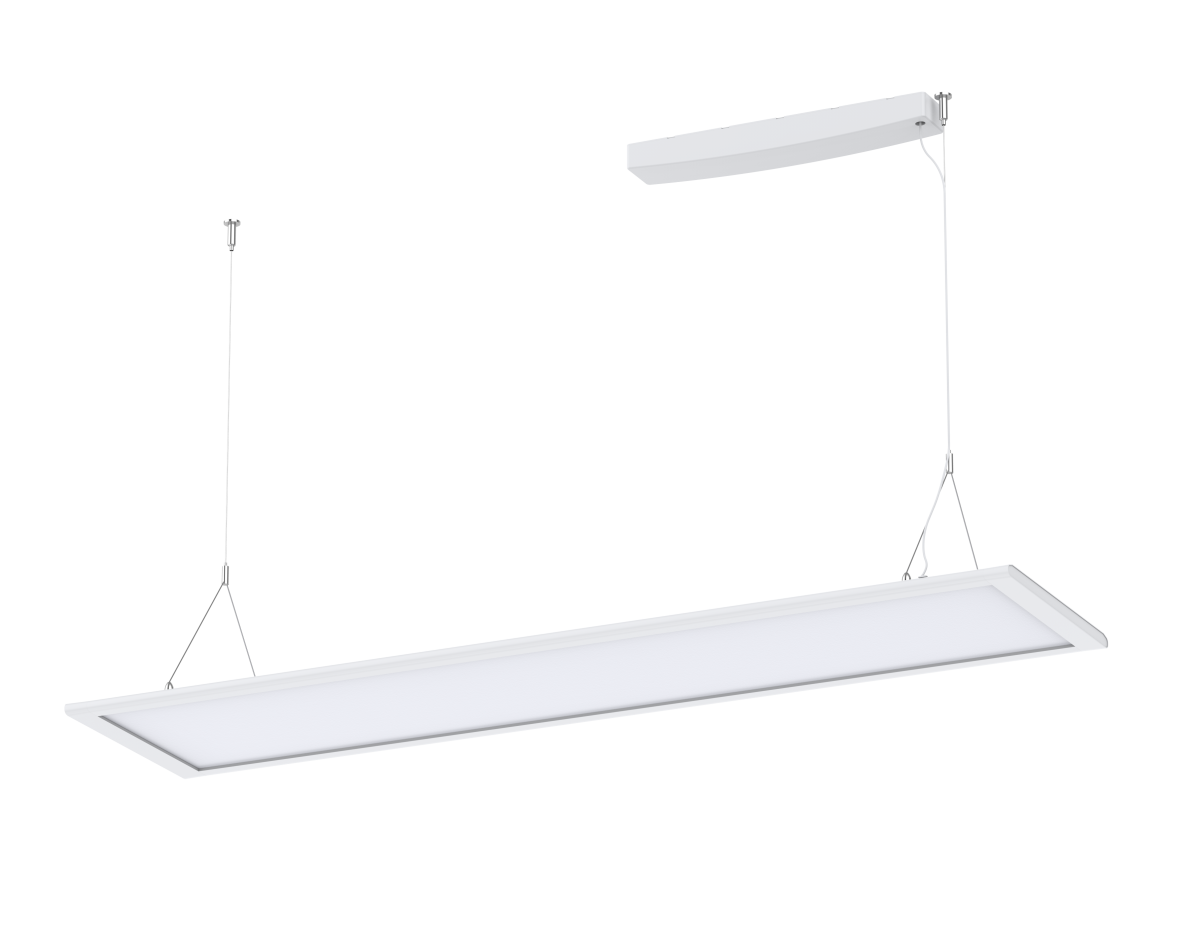

LEDRiga-P Re295-3440W-BLE2-830840
Interior
LEDRiga-P Re295-3440W-BLE2-830840
Manufacturer Ref:
542004095300
Nortécnica Ref:
EAN:
6931783034026
Description
Technical Information
Attributes
EF000004
II
Width
300
Reflector
None
Lamp holder
None
Conductor cross section
-
Connection type
Push-in clamp
Housing colour
White
Voltage type
ACDC
Suitable for lamp power
-
Type of grid
None
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
80-89
Diameter
-
Number of poles
-
Length
1200
Heightdepth
16.5
Housing material
Aluminium
Lamp type
LED not exchangeable
Direct-indirect proportion separately controllable
No
Suitable for light line configuration
No
Suitable for emergency lighting
No
Light outlet
Directindirect
Light distribution
Symmetric
Material cover
Plastic opal
Pendant length
300
1700
Impact strength
IK02
Nominal voltage
220
240
Emergency power supply integrated
No
Degree of protection IP
IP20
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Suitable for number of light sources
-
With control gear
Yes
With suspension
Yes
Suitable for workplace according to EN 12464-1
Yes
Nominal current
160
190
Colour temperature
3000
4000
Max. system power
40
EF009349
5000
Colour of light
White
Constant light output CLO
No
IFTTT support available
Yes
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
70000
Colour consistency McAdam ellipse
SDCM4
Degree of protection NEMA
-
Filament test according to IEC 60695-2-11
650 C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
Yes
Dimming RF
Yes
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
No
Light distributor
Diffuser lensopticpanel
EF012172
130
Dimming DSI
No
Unified Glare Ratio UGR
19
Operation by Bluetooth
Yes
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 75,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 75,000 h at 25 C ambient tq
-
Dimming DALI-2
No
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
Yes
Energy efficiency class of the light source according to EU regulation 20192015
D
Power factor
0.9
Brands
OPPLE
Technical Sheet
