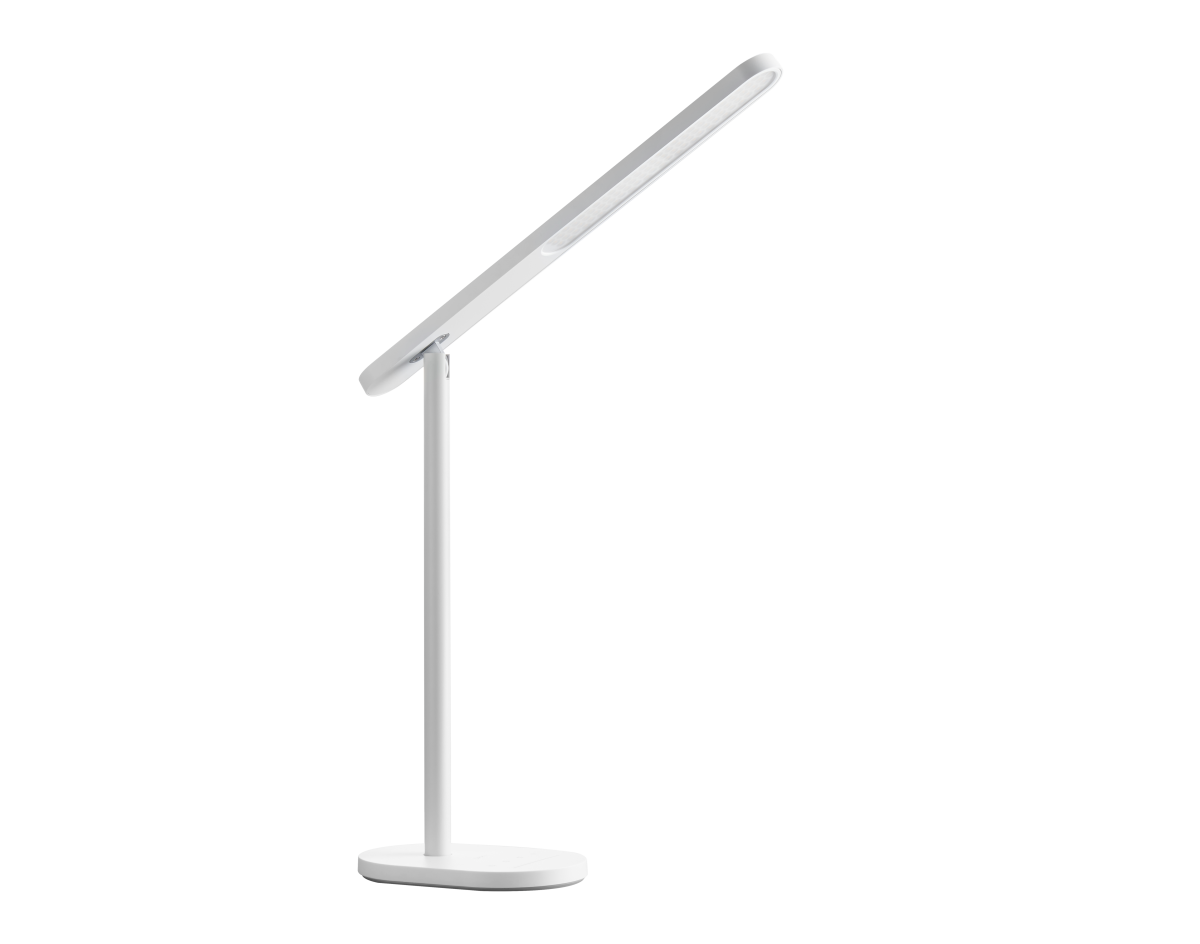

LEDSparrow-E 15W-DIM-830840850
Interior
LEDSparrow-E 15W-DIM-830840850
Manufacturer Ref:
523003011600
Nortécnica Ref:
68523003011600
EAN:
6941491725857
Description
Technical Information
Attributes
Mounting method
Stand base
Protection class according to IEC 61140
II
Largura
120
Lamp holder
-
Housing colour
White
Voltage type
AC
With dimmer
Yes
Suitable for lamp power
-
With socket outlet
Yes
Type of control gear
LED operating device current-controlled
Adjustable
No
Índice de restituição de cor CRI
80-89
Diâmetro
-
Suitable for wall mounting
No
With switch
Yes
Bendable
No
Comprimento
405
Alturaprofundidade
410
Housing material
Aluminium
Lamp type
LED not exchangeable
Type of luminaire
Desk luminaire
Direct-indirect proportion separately controllable
Yes
Electrical connection with connector system
-
Colour cover
White
Material cover
Plastic opal
Nominal voltage
220
240
With light source
Yes
Adequado para número de lâmpadas
-
With control gear
Yes
Suitable for workplace according to EN 12464-1
Yes
Colour temperature
3000
5000
Potência máx. do sistema
15
EF009349
1000
Colour of light
White
Constant light output CLO
No
IFTTT support available
No
Vida útil nominal L70B50 a 25 C
-
Colour consistency McAdam ellipse
SDCM4
Photobiological safety according to EN 62471
RG0
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Regulação LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Regulação por redução da onda sinusoidal
No
Dimming Touch and Dim
Yes
Dimming Zigbee
No
Dimming with push-button
Yes
EF012169
No
Light distributor
Diffuser lensopticpanel
EF012172
66
Dimming DSI
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Colour of light adjustable
Positions
Luminous flux adjustable
Positions
Beam angle adjustable
No
Exchangeable control gear
No
Compatible with Casambi
No
Energy efficiency class of the light source according to EU regulation 20192015
E
Adjustable height
No
Fator de potência
0.9
Brands
OPPLE
Technical Sheet
