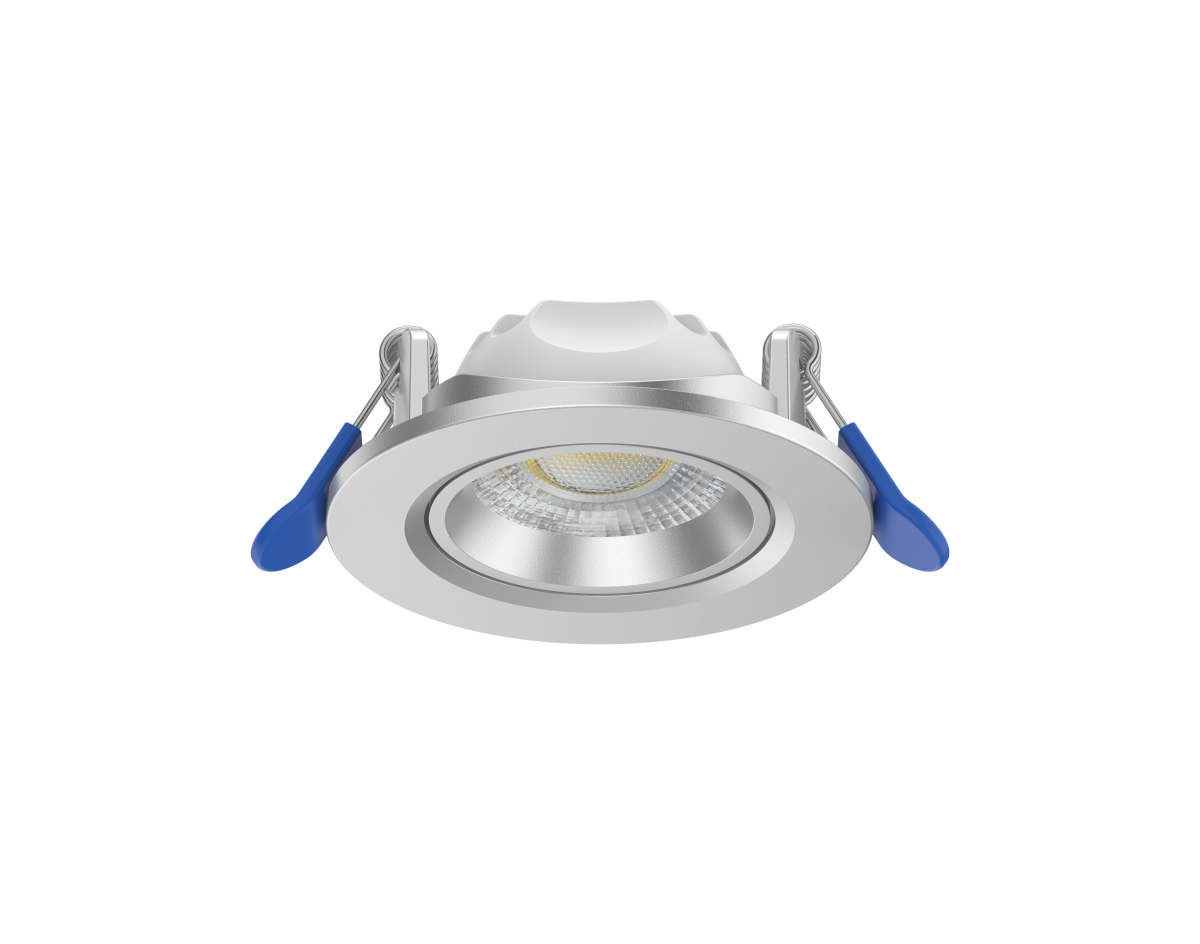

LEDSpotRA-Slim-E 7W-927930940-DIM-AL
Interior
LEDSpotRA-Slim-E 7W-927930940-DIM-AL
Manufacturer Ref:
541003767700
Nortécnica Ref:
EAN:
6931783047712
Description
Technical Information
Attributes
EF000004
II
Width
85
Outer diameter
85
Reflector
Matt
Lamp holder
None
Conductor cross section
-
Connection type
-
Housing colour
Aluminium
Surface protection
-
Voltage type
ACDC
With movement sensor
No
Suitable for lamp power
-
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
90-100
Suitable for wall mounting
No
Built-in width
-
With light sensor
No
Suitable for suspended mounting
No
EF001357
-
Number of poles
-
Length
85
Heightdepth
31
Housing material
Aluminium
Lamp type
LED not exchangeable
Reflector colour
-
Built-in length
-
Light outlet
Direct
Light distribution
Symmetric
Material cover
Plastic opal
Impact strength
IK02
Nominal voltage
220
240
Emergency power supply integrated
No
Degree of protection IP
EV006405
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Suitable for number of light sources
-
Suitable for built-in mounting
Yes
With control gear
Yes
Suitable for workplace according to EN 12464-1
-
Suitable for surface mounting
No
Beam angle
21-40 - Medium beam
Connectable conductor cross section
-
Surface brushed
No
Nominal current
47
47
Colour temperature
2700
4000
Max. system power
7
EF009349
735
Colour of light
White
Adjustability
Swivelling
Suitable for traverse mounting
No
Suitable for pedestalfloor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Constant light output CLO
No
IFTTT support available
No
EF011587
735
735
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
50000
Colour consistency McAdam ellipse
SDCM6
EF011947
-
Photobiological safety according to EN 62471
RG0
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-10
40
Filament test according to IEC 60695-2-11
650 C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
Yes
Dimming phase cut-on leading edge
Yes
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
No
Light distributor
Focal lens
EF012172
105
Suitable for low voltage cable system
No
Dimming DSI
No
Unified Glare Ratio UGR
-
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
129
Max. number of luminaires per miniature circuit breaker B16 MCB
77
Lumen maintenance at median useful life of 35,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 35,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Dimming DALI-2
No
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Colour of light adjustable
Positions
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Exchangeable control gear
Yes
Built-in diameter
68
85
Energy efficiency class of the light source according to EU regulation 20192015
E
Suitable for ceiling mounting
No
Built-in heightdepth
-
Power factor
0.9
Brands
OPPLE
