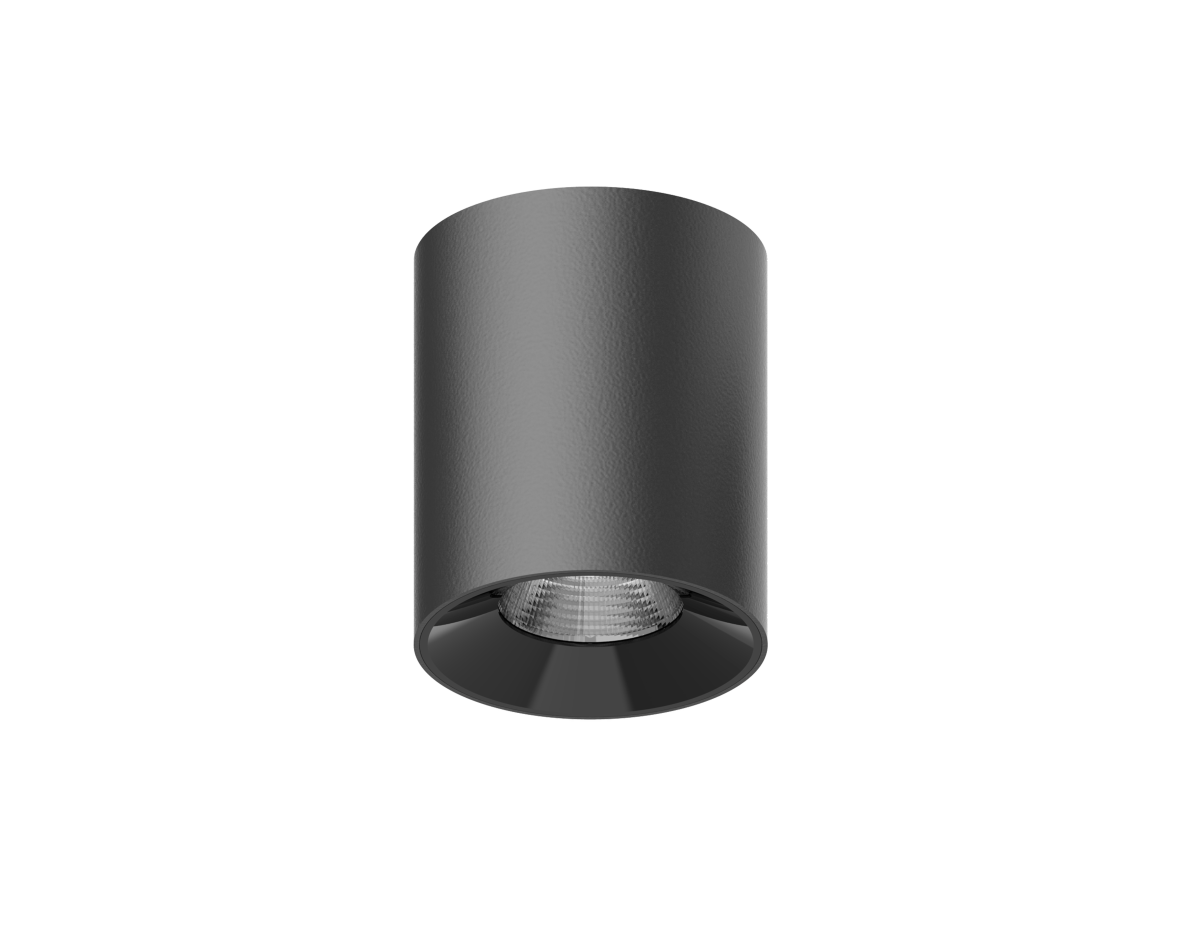

LEDSpotRF-Selena-E 7W-DIM-930-55D-BL
Interior
LEDSpotRF-Selena-E 7W-DIM-930-55D-BL
Manufacturer Ref:
541003590500
Nortécnica Ref:
EAN:
6941497787224
Description
Technical Information
Attributes
Protection class according to IEC 61140
II
Width
75
Outer diameter
75
Reflector
High-gloss
Lamp holder
None
Conductor cross section
-
Connection type
-
Housing colour
Black
Surface protection
-
Voltage type
ACDC
With movement sensor
No
Suitable for lamp power
-
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
90-100
Suitable for wall mounting
Yes
EF000846
-
With light sensor
No
Suitable for suspended mounting
No
EF001357
-
Number of poles
-
Length
75
Heightdepth
101
Housing material
Aluminium
Lamp type
LED not exchangeable
Reflector colour
-
EF004265
-
Light outlet
-
Light distribution
Symmetric
Material cover
-
Impact strength
IK02
Nominal voltage
220
240
EF005138
No
Degree of protection IP
EV006405
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
-
Covering of the luminaire with thermally insulating material possible
No
Suitable for number of light sources
-
Suitable for built-in mounting
No
With control gear
Yes
Suitable for workplace according to EN 12464-1
-
Suitable for surface mounting
Yes
Beam angle
41-80 - Wide beam
Connectable conductor cross section
-
Surface brushed
No
Nominal current
-
Colour temperature
3000
3000
Max. system power
7
EF009349
560
Colour of light
White
Adjustability
Not adjustable
Suitable for traverse mounting
No
Suitable for pedestalfloor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Constant light output CLO
-
IFTTT support available
No
EF011587
560
560
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
50000
Colour consistency McAdam ellipse
SDCM4
EF011947
-
Photobiological safety according to EN 62471
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-10
40
Filament test according to IEC 60695-2-11
650 C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
Yes
Dimming phase cut-on leading edge
Yes
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
No
Light distributor
Reflector
EF012172
80
Suitable for low voltage cable system
No
Dimming DSI
No
Unified Glare Ratio UGR
-
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 35,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 35,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Dimming DALI-2
No
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
No
Built-in diameter
-
Energy efficiency class of the light source according to EU regulation 20192015
E
Suitable for ceiling mounting
Yes
EF023518
-
Power factor
0.9
Brands
OPPLE
