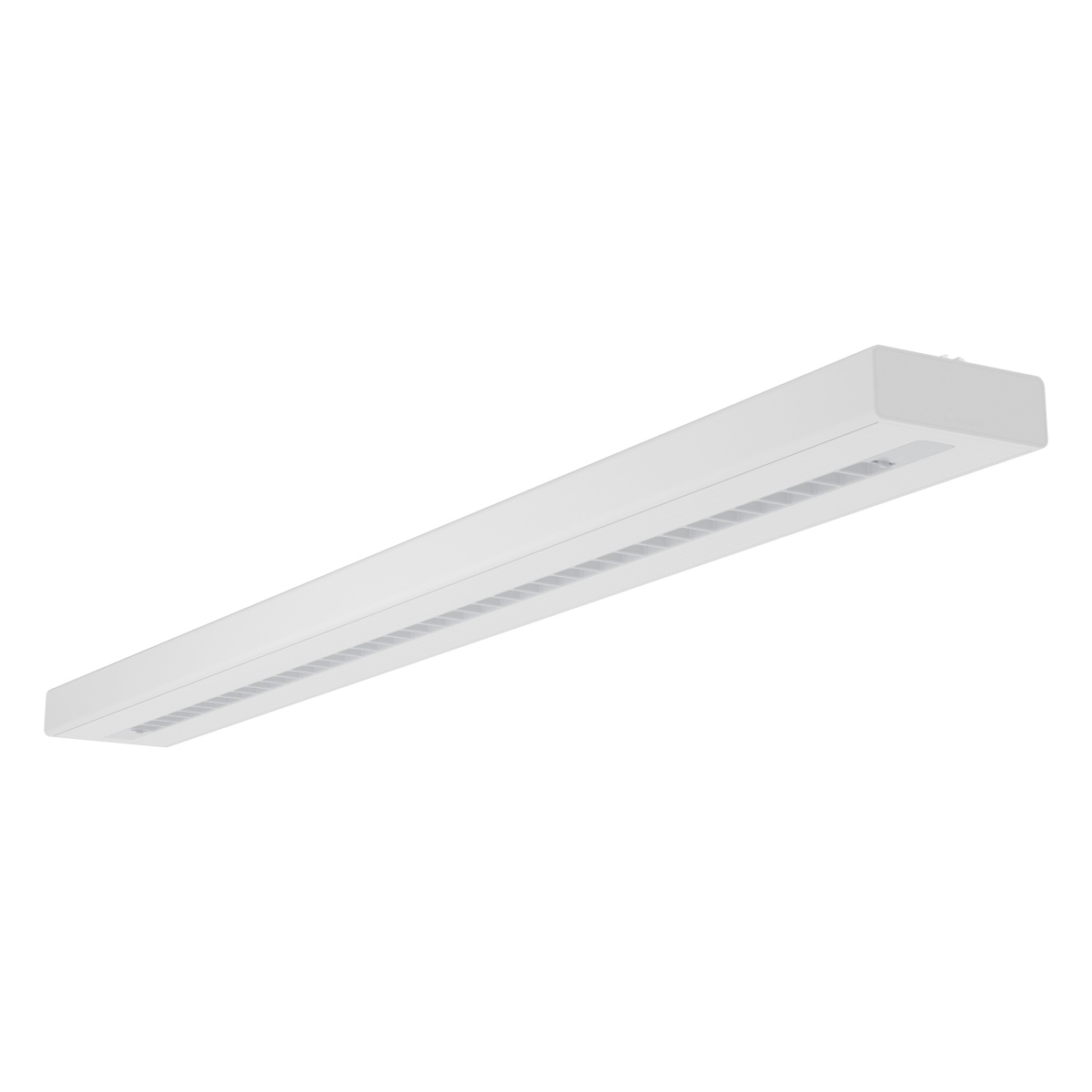

LINEAR INDIVILED DIRECT 1200 DALI 1200 P 40W 940 DAVR WT
Interior
LINEAR INDIVILED DIRECT 1200 DALI 1200 P 40W 940 DAVR WT
Manufacturer Ref:
4099854135736
Nortécnica Ref:
07135736
EAN:
4099854135736
Description
Technical Information
Attributes
Protection class according to IEC 61140
I
Largura
125.00
Diâmetro externo
-
Lamp holder
-
Secção transversal do condutor
-
Connection type
Push-in clamp
Housing colour
White
Voltage type
AC
With movement sensor
No
Suitable for lamp power
-
Type of grid
Other
Type of control gear
Electronic ballast
Índice de restituição de cor CRI
90-100
Suitable for wall mounting
No
Largura para embutir
-
Built-in diameter
-
With light sensor
No
Suitable for suspended mounting
Yes
Intensidade luminosa
-
Número de polos
5
Comprimento
1210.00
Alturaprofundidade
43.00
Housing material
Aluminium
Lamp type
-
Comprimento para embutir
-
Suitable for light line configuration
No
Suitable for emergency lighting
Yes
Light outlet
Direct
Light distribution
-
Material cover
-
Impact strength
IK06
Nominal voltage
220
240
EF005138
No
Degree of protection IP
EV006405
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Adequado para número de lâmpadas
-
Suitable for built-in mounting
No
With control gear
Yes
Suitable for workplace according to EN 12464-1
No
Suitable for surface mounting
Yes
Beam angle
-
Nominal current
120
177
Colour temperature
4000
4000
Potência máx. do sistema
40
EF009349
5050
Colour of light
White
With air slots
No
Constant light output CLO
No
IFTTT support available
Yes
Type of wiring
Suitable for loop-through wiring
Vida útil nominal L70B50 a 25 C
100000
Colour consistency McAdam ellipse
SDCM3
EF011947
-
Photobiological safety according to EN 62471
RG0
Degree of protection NEMA
1
Rated ambient temperature according to IEC 62722-2-1
-20
+50
Filament test according to IEC 60695-2-11
-
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming potentiometer integrated
No
Regulação LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Regulação por redução da onda sinusoidal
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
No
Light distributor
Focal lens
EF012172
126
Dimming DSI
No
Fator de brilho unificado UGR
19
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Número max. de luminárias por disjuntor C16
32
Número max. de luminárias por disjuntor B16
20
Depreciação do fluxo luminoso; vida útil média de 35 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Lumen maintenance at median useful life of 75,000 h at 25 C ambient tq
-
Taxa de falha, vida operacional média 35 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Failure rate at median useful life of 75,000 h at 25 C ambient tq
-
Dimming DALI-2
Yes
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Colour of light adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Exchangeable control gear
Yes
Compatible with Casambi
No
Energy efficiency class of the light source according to EU regulation 20192015
E
Suitable for ceiling mounting
Yes
Alturaprofundidade para embutir
-
Surface protection housing
Powder coating
Fator de potência
0.90
Meets min. EIA lifetime criterion L90 at 50,000 hours at tq 25 C
No
Brands
LEDVANCE GmbH
Technical Sheet
