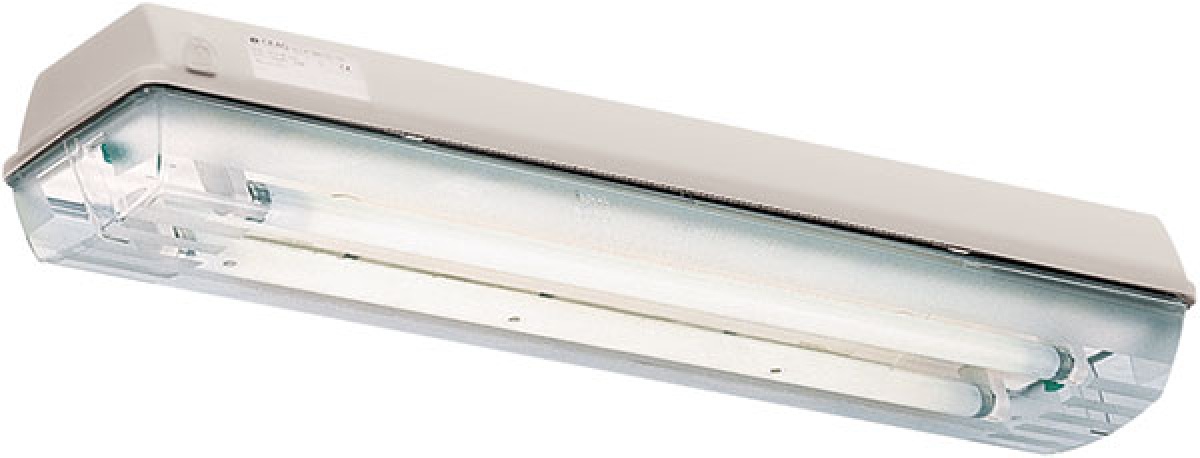

LLK98 LED 600 13 M20M 230V
Interior
LLK98 LED 600 13 M20M 230V
Manufacturer Ref:
13463218031
Nortécnica Ref:
EAN:
4250959948472
Description
Technical Information
Attributes
EF000004
I
Width
188
Outer diameter
0
Lamp holder
G13
Conductor cross section
1.5
Connection type
Cable
Housing colour
-
Voltage type
AC/DC
With movement sensor
No
Suitable for lamp power
8.7
8.7
Type of grid
None
Type of control gear
Not required
Colour rendering index CRI
80-89
Suitable for wall mounting
Yes
Built-in width
188
Built-in diameter
0
With light sensor
No
Suitable for suspended mounting
Yes
EF001357
-
Number of poles
3
Length
760
Heightdepth
130
Housing material
-
Lamp type
LED exchangeable
Built-in length
760
Suitable for light line configuration
Yes
Suitable for emergency lighting
No
Light outlet
Direct
Light distribution
Symmetric/asymmetric
Material cover
Plastic, transparent
Impact strength
IK10
Nominal voltage
220
240
Emergency power supply integrated
No
Degree of protection IP
EV006422
With light source
No
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
-
Covering of the luminaire with thermally insulating material possible
No
Suitable for number of light sources
-
Suitable for built-in mounting
No
With control gear
Yes
Suitable for workplace according to EN 12464-1
No
Suitable for surface mounting
Yes
Beam angle
41-80° - Wide beam
Nominal current
100
100
Colour temperature
5000
5500
Max. system power
17.4
EF009349
2.2
Colour of light
White
With air slots
No
Constant light output CLO
No
IFTTT support available
No
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
-
Colour consistency McAdam ellipse
-
EF011947
-
Photobiological safety according to EN 62471
Other
Degree of protection NEMA
Other
Rated ambient temperature according to IEC 62722-2-1
-
Filament test according to IEC 60695-2-11
-
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
Yes
Light distributor
Other
EF012172
-
Dimming DSI
No
Unified Glare Ratio UGR
-
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 35,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 75,000 h at 25 C ambient tq
-
Failure rate at median useful life of 35,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 75,000 h at 25 C ambient tq
-
Dimming DALI-2
No
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Colour of light adjustable
-
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
Yes
Compatible with Casambi
-
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for ceiling mounting
Yes
Built-in heightdepth
130
Surface protection housing
Untreated
Power factor
0.9
Meets min. EIA lifetime criterion L90 at 50,000 hours at tq 25 C
-
