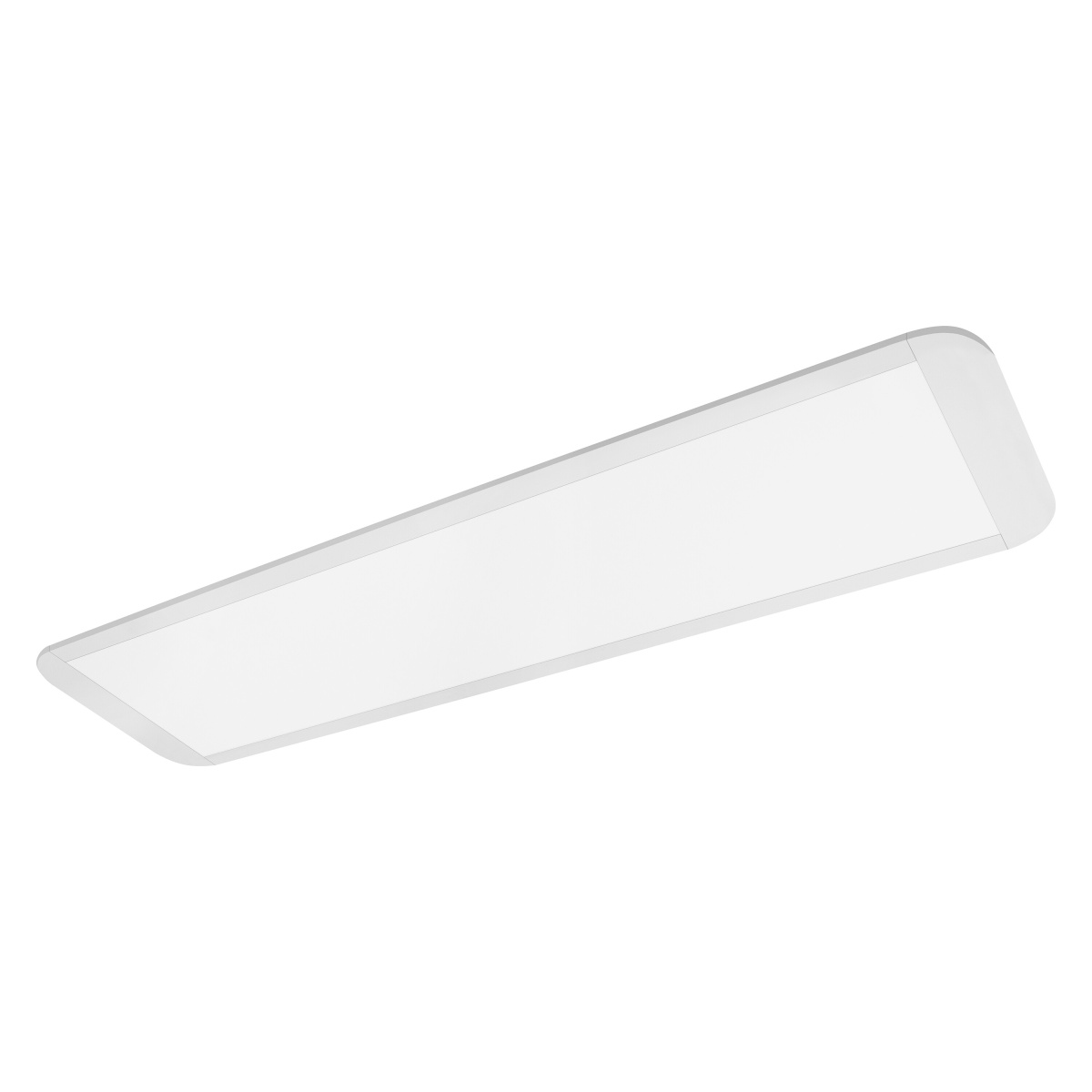

PANEL DIRECTINDIRECT 1200 UGR < 19 36 W 3000 K UGR19
Interior
PANEL DIRECTINDIRECT 1200 UGR < 19 36 W 3000 K UGR19
Manufacturer Ref:
4058075144606
Nortécnica Ref:
07144606
EAN:
4058075144606
Description
Technical Information
Attributes
EF000004
I
Width
300.00
Reflector
-
Lamp holder
None
Conductor cross section
-
Connection type
Push-in clamp
Housing colour
White
Voltage type
AC
Suitable for lamp power
-
Type of grid
Other
Type of control gear
-
Colour rendering index CRI
80-89
Diameter
-
Number of poles
2
Length
1200.00
Heightdepth
16.00
Housing material
Aluminium
Lamp type
LED not exchangeable
Direct-indirect proportion separately controllable
No
Suitable for light line configuration
No
Suitable for emergency lighting
No
Light outlet
Direct/indirect
Light distribution
Symmetric
Material cover
Plastic, transparent
Pendant length
2000
2000
Impact strength
IK03
Nominal voltage
220
240
Emergency power supply integrated
No
Degree of protection IP
IP20
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Suitable for number of light sources
0
With control gear
Yes
With suspension
Yes
Suitable for workplace according to EN 12464-1
No
Nominal current
230.000
230.000
Colour temperature
3000
3000
Max. system power
36.00
EF009349
3800
Colour of light
White
Constant light output CLO
-
IFTTT support available
Yes
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
80000
Colour consistency McAdam ellipse
SDCM4
Degree of protection NEMA
-
Filament test according to IEC 60695-2-11
-
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
Yes
Light distributor
Diffuser lens/optic/panel
EF012172
105
Dimming DSI
No
Unified Glare Ratio UGR
19
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
55
Max. number of luminaires per miniature circuit breaker B16 MCB
47
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 75,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 75,000 h at 25 C ambient tq
-
Dimming DALI-2
No
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
Yes
Energy efficiency class of the light source according to EU regulation 20192015
-
Power factor
0.90
Brands
LEDVANCE
Technical Sheet
