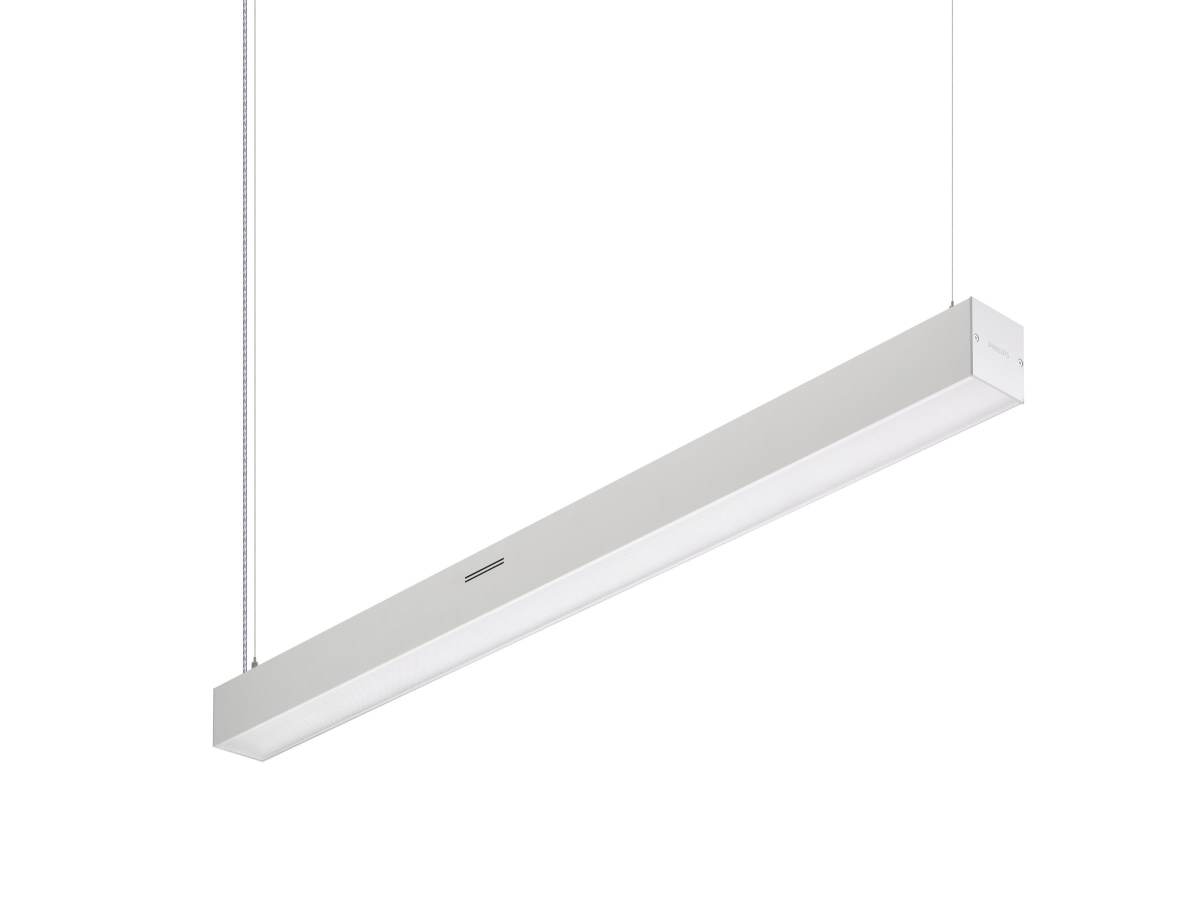

SM350C 40S840 WIA PCS L1200 WH
Interior
SM350C 40S840 WIA PCS L1200 WH
Manufacturer Ref:
62430600
Nortécnica Ref:
EAN:
8719514624306
Description
Technical Information
Attributes
EF000004
I
Width
70
Reflector
White
Lamp holder
Other
Conductor cross section
0.5
Connection type
Other
Housing colour
White
Voltage type
AC
Suitable for lamp power
-
-
Type of grid
None
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
80-89
Diameter
-
Number of poles
3
Length
1127
Heightdepth
70
Housing material
Aluminium
Lamp type
LED not exchangeable
Direct-indirect proportion separately controllable
No
Suitable for light line configuration
Yes
Suitable for emergency lighting
No
Light outlet
Direct
Light distribution
Symmetric
Material cover
Plastic structured
Pendant length
0
0
Impact strength
IK06
Nominal voltage
220
240
Emergency power supply integrated
No
Degree of protection IP
IP20
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Suitable for number of light sources
1
With control gear
Yes
With suspension
No
Suitable for workplace according to EN 12464-1
Yes
Nominal current
140
140
Colour temperature
4000
4000
Max. system power
30
EF009349
4200
Colour of light
White
Constant light output CLO
No
IFTTT support available
No
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
-
Colour consistency McAdam ellipse
SDCM3
Degree of protection NEMA
-
Filament test according to IEC 60695-2-11
650 C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
Yes
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
Yes
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
Yes
Dimming with push-button
No
EF012169
No
Light distributor
Diffuser lensopticpanel
EF012172
140
Dimming DSI
No
Unified Glare Ratio UGR
19
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
28
Max. number of luminaires per miniature circuit breaker B16 MCB
24
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
90
Lumen maintenance at median useful life of 75,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
5
Failure rate at median useful life of 75,000 h at 25 C ambient tq
-
Dimming DALI-2
Yes
Flickering value Pst LM
1
Stroboscope effect value SVM
0.4
Colour of light adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Exchangeable control gear
Yes
Energy efficiency class of the light source according to EU regulation 20192015
D
Power factor
0.9
Brands
PHILIPS
