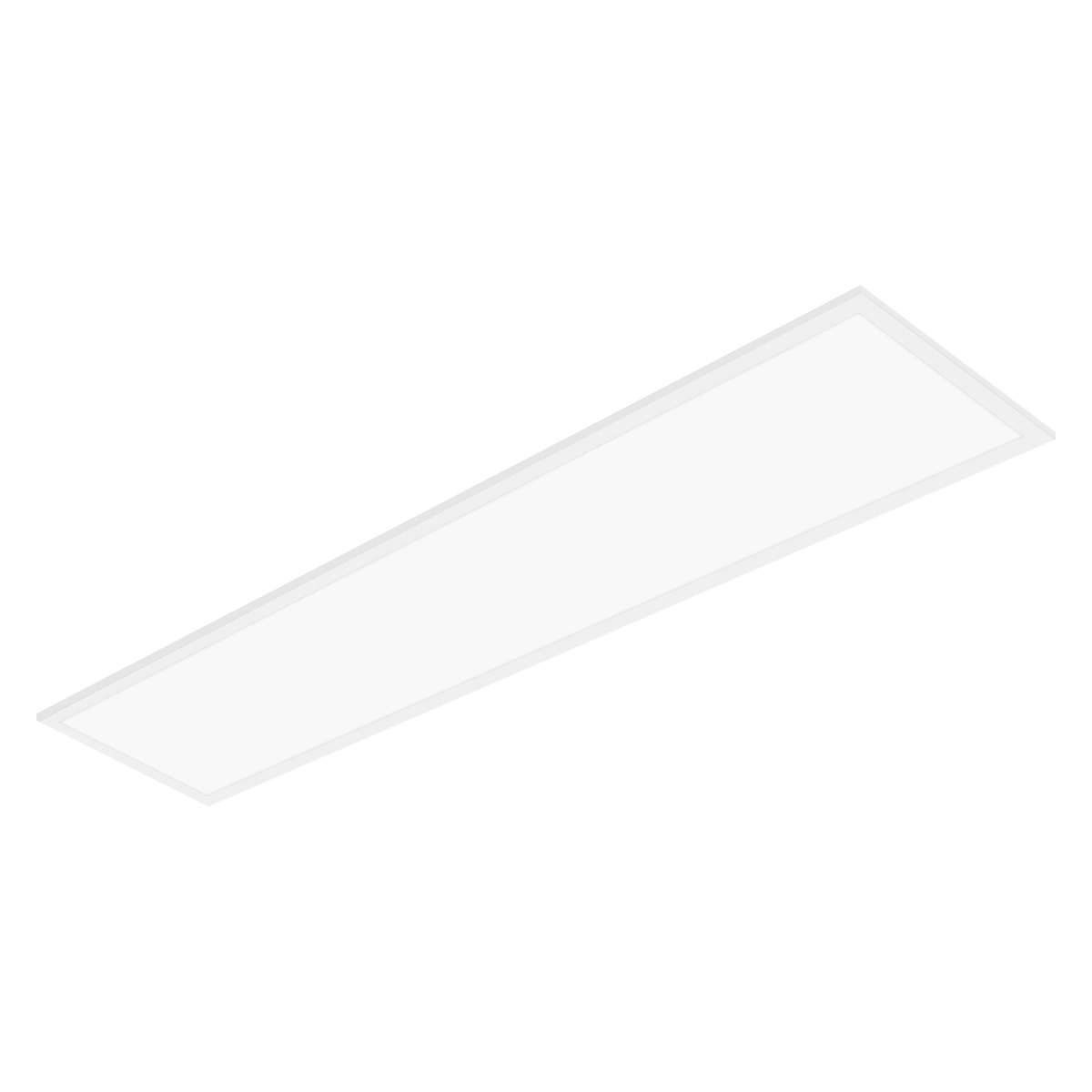

ZIGBEE BIOLUX HUMAN CENTRIC LIGHTING 1200 S 37W TW ZB
Interior
ZIGBEE BIOLUX HUMAN CENTRIC LIGHTING 1200 S 37W TW ZB
Manufacturer Ref:
4058075724587
Nortécnica Ref:
EAN:
4058075724587
Description
Technical Information
Attributes
Protection class according to IEC 61140
II

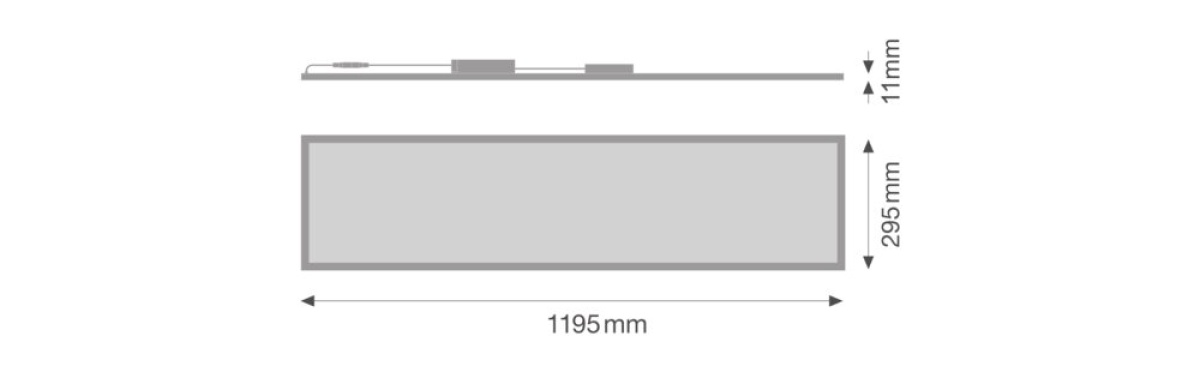

Largura
295.00
Diâmetro externo
-
Lamp holder
-
Secção transversal do condutor
-
Connection type
Push-in clamp
Housing colour
White
Voltage type
AC
With movement sensor
No
Suitable for lamp power
-
Type of grid
Matt
Type of control gear
Electronic ballast
Índice de restituição de cor CRI
90-100
Suitable for wall mounting
No
Largura para embutir
290.0
Built-in diameter
-
With light sensor
No
Suitable for suspended mounting
Yes
Intensidade luminosa
-
Número de polos
2
Comprimento
1195.00
Alturaprofundidade
11.00
Housing material
Aluminium
Lamp type
LED not exchangeable
Comprimento para embutir
1190
Suitable for light line configuration
No
Suitable for emergency lighting
No
Light outlet
Direct
Light distribution
-
Material cover
-
Impact strength
IK02
Nominal voltage
220
240
EF005138
No
Degree of protection IP
EV006405
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Adequado para número de lâmpadas
0
Suitable for built-in mounting
Yes
With control gear
Yes
Suitable for workplace according to EN 12464-1
Yes
Suitable for surface mounting
Yes
Beam angle
-
Nominal current
190.000
190.000
Colour temperature
2700
2700
Potência máx. do sistema
37.00
EF009349
4100
Colour of light
-
With air slots
No
Constant light output CLO
No
IFTTT support available
Yes
Type of wiring
Ending
Vida útil nominal L70B50 a 25 C
50000
Colour consistency McAdam ellipse
SDCM3
EF011947
-
Photobiological safety according to EN 62471
RG0
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-20
+40
Filament test according to IEC 60695-2-11
-
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Regulação LineSwitch
No
Dimming manufacturer's proprietary system
Yes
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
Yes
Dimming RF
No
Regulação por redução da onda sinusoidal
No
Dimming Touch and Dim
No
Dimming Zigbee
Yes
Dimming with push-button
No
EF012169
No
Light distributor
Diffuser lens/optic/panel
EF012172
110
Dimming DSI
No
Fator de brilho unificado UGR
19
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Número max. de luminárias por disjuntor C16
74
Número max. de luminárias por disjuntor B16
74
Depreciação do fluxo luminoso; vida útil média de 35 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Lumen maintenance at median useful life of 75,000 h at 25 C ambient tq
-
Taxa de falha, vida operacional média 35 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Failure rate at median useful life of 75,000 h at 25 C ambient tq
-
Dimming DALI-2
No
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Colour of light adjustable
Continuously variable
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
Yes
Compatible with Casambi
-
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for ceiling mounting
Yes
Alturaprofundidade para embutir
50.0
Surface protection housing
Powder coating
Fator de potência
0.90
Brands
LEDVANCE GmbH
