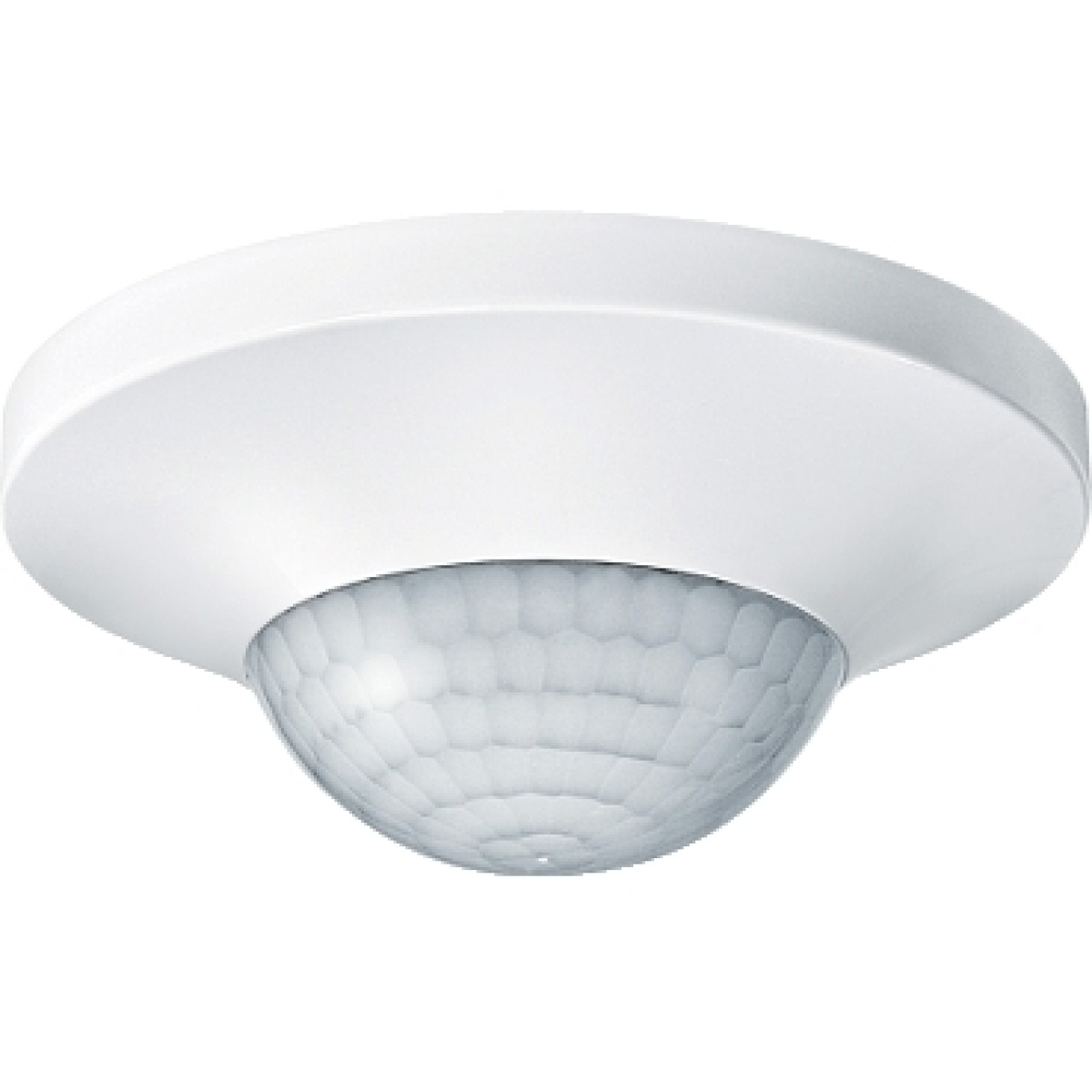

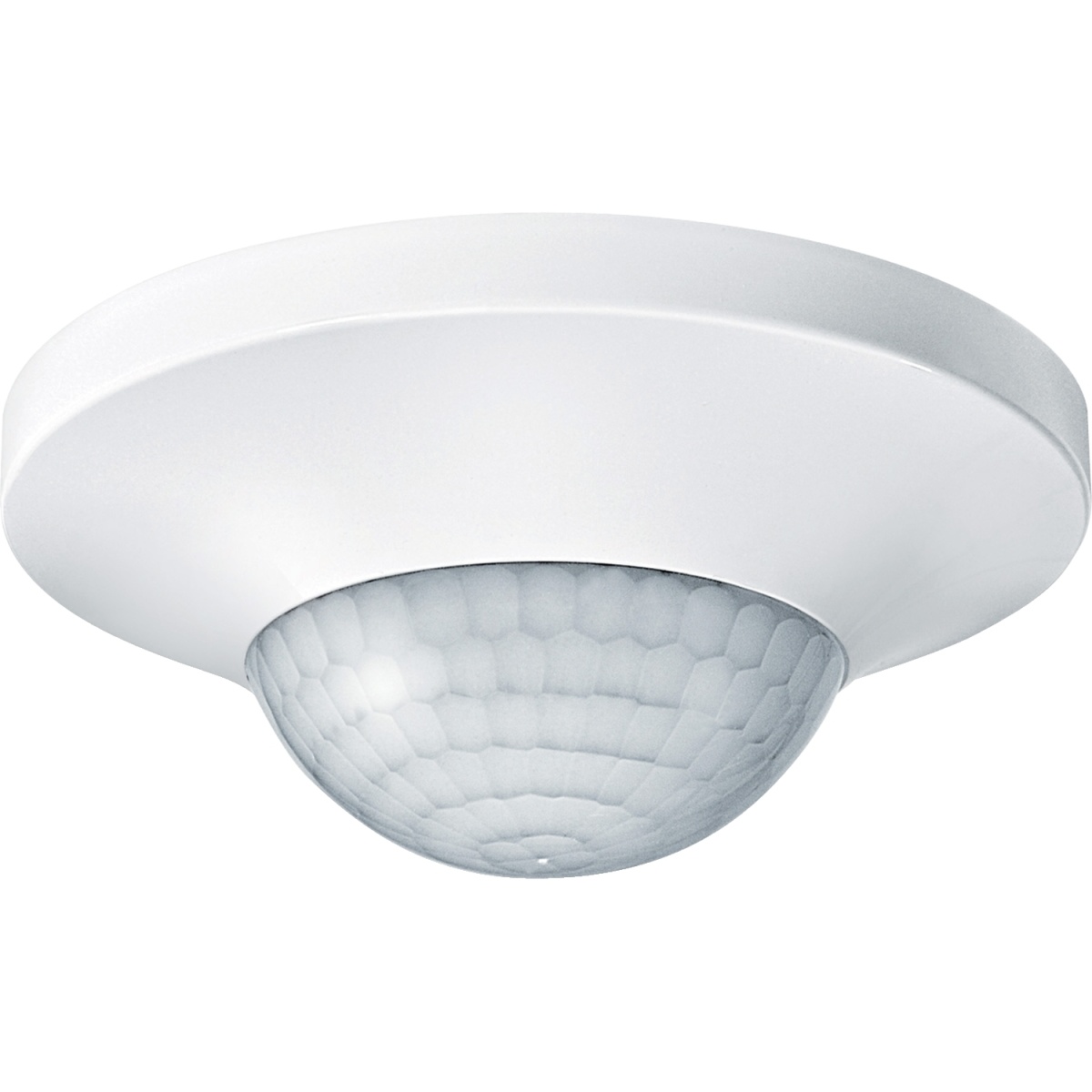

ARGUS Presence Master with IR, 1-10 V, polar white
Motion and Presence Detectors
ARGUS Presence Master with IR, 1-10 V, polar white
Manufacturer Ref:
MTN5510-1419
Nortécnica Ref:
EAN:
3606480467431
Description
Technical Information
Attributes
Mounting method
Other
Colour
White
Width
116
Model
Presence detector
Halogen free
Yes
Height
116
Depth
72
Connection type
Screwed terminal
Surface protection
Untreated
Creep-under protection
Yes
Voltage type
AC
Switching-on delay
0
Switch-off delay
1800
Built-in depth
-
Frequency
50
60
With remote control
Yes
Diameter
-
Suitable for wall mounting
-
Built-in width
-
Built-in diameter
-
Staircase light controller
Yes
Bridging switch
No
Suitable for wireless transmission
No
Material quality
Thermoplastic
Max. reach frontally
7
Max. reach sideways
7
Max. switching power
2200
EF001731
0
25
Max. starting current
10
Material
Plastic
Response value sensitivity adjustable
No
Connection cable length
-
Dim function with dimmer basic element
No
Response value luminosity
10
1000
Suitable for C-load
Yes
Diameter reach on floor
14
Remote operation
Yes
HVAC-control
No
Constant light control
Yes
Substation input
No
RAL-number similar
9010
With signal unit
No
Control current
50
Teach-function for response value luminosity
No
Networkable
Yes
Forced switch off
No
Scan angle
360
Built-in length
-
Impact strength
IK02
With connection cable
No
Nominal voltage
220
230
Degree of protection IP
IP20
With alarm function
No
Transparent
No
Animal zone
No
Surface finishing
Glossy
Detection angle horizontal
0
360
Min. switch-on time
10
Max. duty cycle
30
Response value luminosity adjustable
Yes
Optimum mounting height
2.5
Pivoting range sensor, horizontal
-
-
Pivoting range sensor, vertical
-
-
Number of switching zones
136
With DALI interface
No
IFTTT support available
No
Forced switch on
No
Min. starting current
0
Min. depth of built-in installation box
-
Max. presence range
113
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. switching power LED
-
Background monitoring
No
With acoustic sensor
No
EF020270
EV007611
Suitable for ceiling mounting
Yes
Anti-bacterial treatment
No
Brands
Schneider
Technical Sheet
