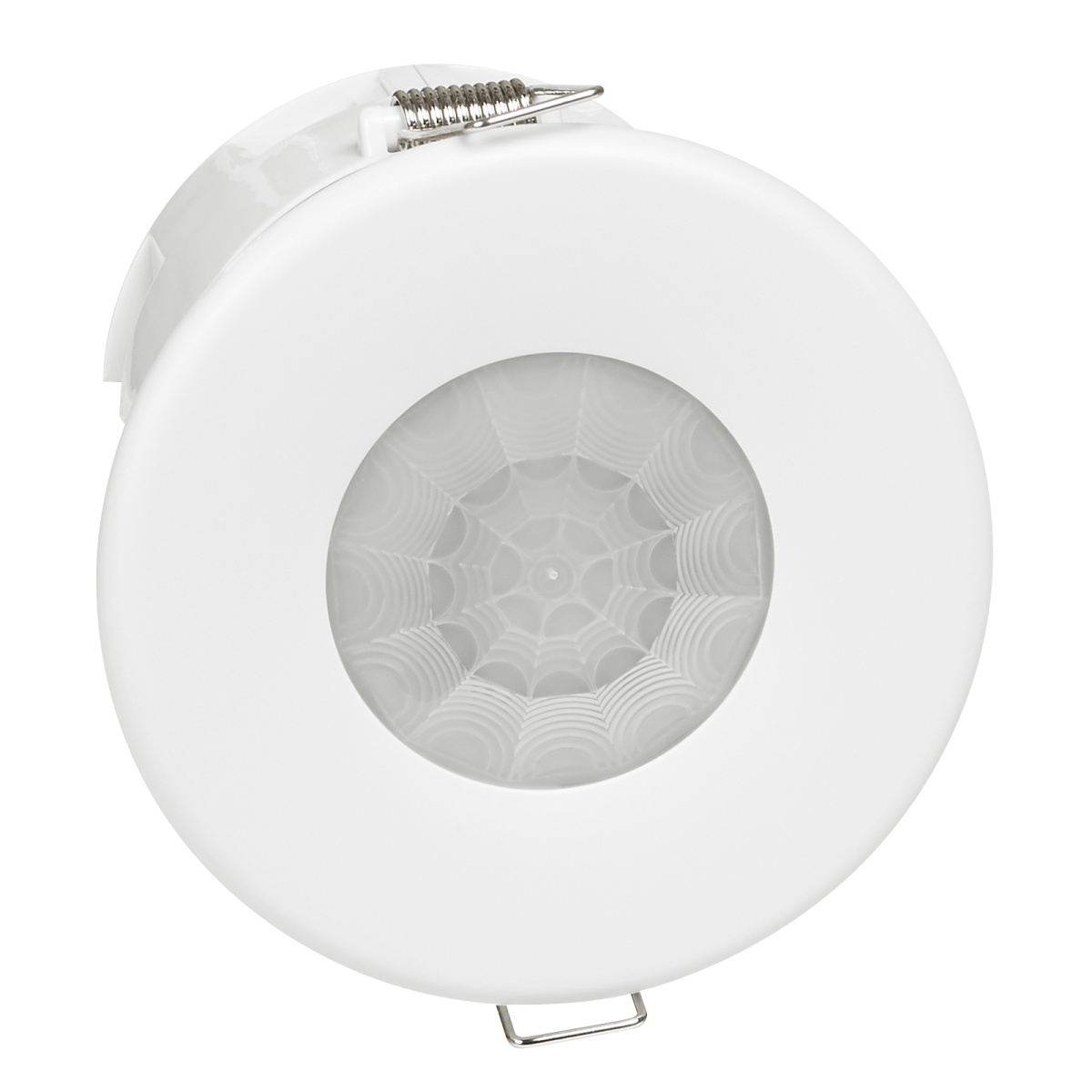

DET IV COMPACTO DALI
Motion and Presence Detectors
DET IV COMPACTO DALI
Manufacturer Ref:
048964
Nortécnica Ref:
EAN:
3414972095686
Description
Technical Information
Attributes
Mounting method
Flush-mounted
Colour
White
Width
76
Model
Presence detector
Halogen free
Yes
Height
-
Depth
69.5
Connection type
Screwed terminal
Surface protection
Untreated
Creep-under protection
No
Voltage type
AC
Switching-on delay
1
Switch-off delay
10
Built-in depth
64.8
Frequency
50
50
With remote control
Yes
Diameter
76
Suitable for wall mounting
No
Built-in width
-
Built-in diameter
65
Staircase light controller
Yes
Bridging switch
No
Suitable for wireless transmission
No
Material quality
Thermoplastic
Max. reach frontally
3.5
Max. reach sideways
3.5
Max. switching power
2300
EF001731
-10
30
Max. starting current
80
Material
Plastic
Response value sensitivity adjustable
Yes
Connection cable length
0
Dim function with dimmer basic element
Yes
Response value luminosity
0
2000
Suitable for C-load
No
Diameter reach on floor
7
Remote operation
Yes
HVAC-control
No
Constant light control
Yes
Substation input
Yes
RAL-number similar
9002
With signal unit
No
Control current
2.7173913043
Teach-function for response value luminosity
No
Networkable
No
Forced switch off
Yes
Scan angle
-
Built-in length
-
Impact strength
IK05
With connection cable
No
Nominal voltage
230
230
Degree of protection IP
IP40
With alarm function
No
Transparent
No
Animal zone
No
Surface finishing
Matt
Detection angle horizontal
360
360
Min. switch-on time
0.5
Max. duty cycle
99
Response value luminosity adjustable
Yes
Optimum mounting height
2.8
Pivoting range sensor, horizontal
0
0
Pivoting range sensor, vertical
0
0
Number of switching zones
1
With DALI interface
Yes
IFTTT support available
No
Forced switch on
-
Min. starting current
-
Min. depth of built-in installation box
-
Max. presence range
2
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. switching power LED
-
Background monitoring
No
With acoustic sensor
No
EF020270
EV007611
Suitable for ceiling mounting
Yes
Anti-bacterial treatment
No
Brands
Legrand
Technical Sheet
