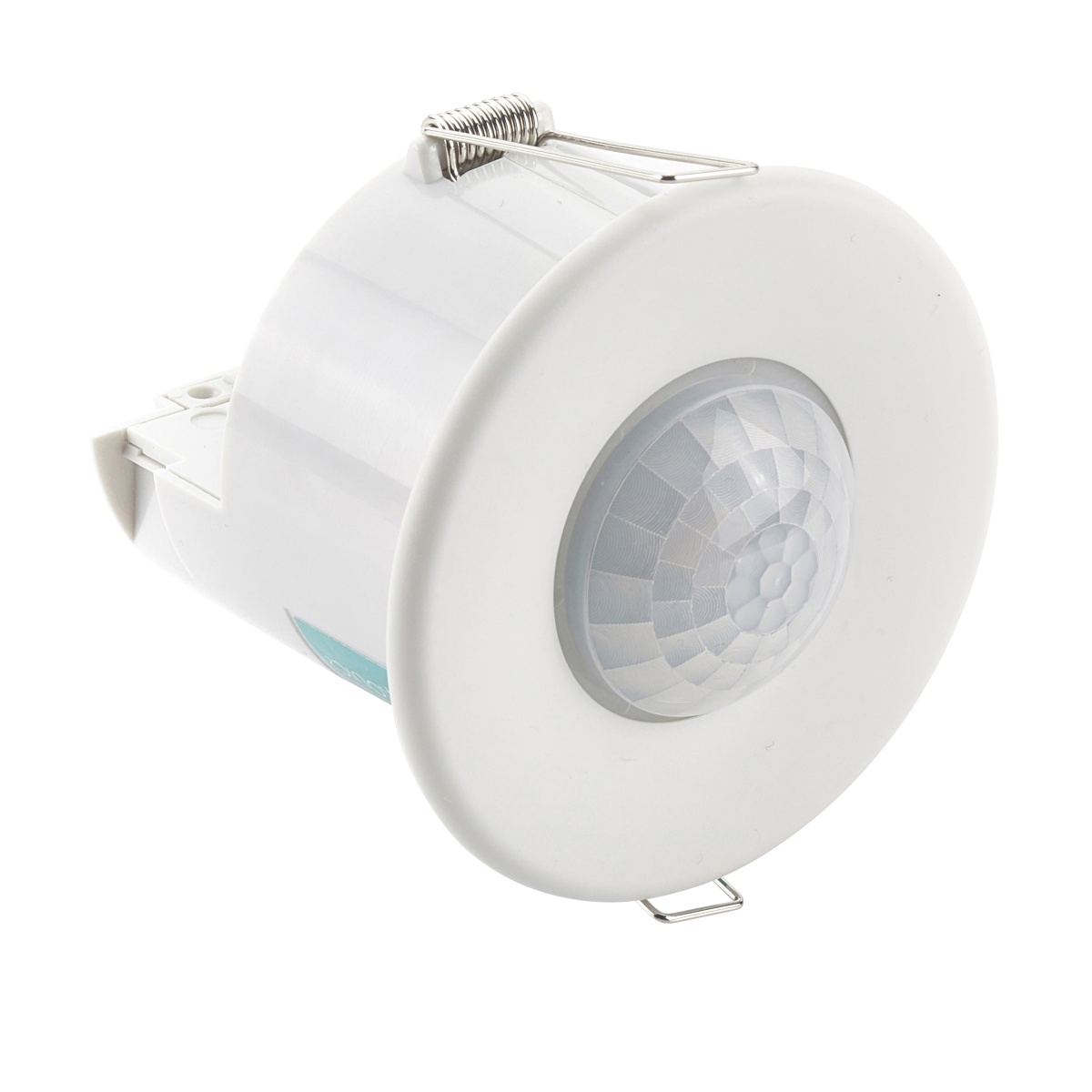

EBDMR-PRM_DET.PIR ONOFF IP40
Motion and Presence Detectors
EBDMR-PRM_DET.PIR ONOFF IP40
Manufacturer Ref:
CP110000
Nortécnica Ref:
EAN:
5012774622482
Description
Technical Information
Attributes
Mounting method
Flush-mounted
Colour
White
Width
76
Model
Presence detector
Halogen free
Yes
Height
76
Depth
77
Connection type
-
Surface protection
Untreated
Creep-under protection
No
Voltage type
AC
Switching-on delay
1
Switch-off delay
10
Built-in depth
65
Frequency
50
50
With remote control
Yes
Diameter
-
Suitable for wall mounting
-
Built-in width
-
Built-in diameter
-
Staircase light controller
Yes
Bridging switch
No
Suitable for wireless transmission
No
Material quality
Thermoplastic
Max. reach frontally
7.5
Max. reach sideways
7.5
Max. switching power
2300
EF001731
-10
30
Max. starting current
80
Material
Plastic
Response value sensitivity adjustable
Yes
Connection cable length
0
Dim function with dimmer basic element
No
Response value luminosity
0
2000
Suitable for C-load
No
Diameter reach on floor
15
Remote operation
Yes
HVAC-control
No
Constant light control
Yes
Substation input
No
RAL-number similar
9002
With signal unit
No
Control current
-
Teach-function for response value luminosity
No
Networkable
No
Forced switch off
Yes
Scan angle
-
Built-in length
-
Impact strength
IK05
With connection cable
No
Nominal voltage
230
230
Degree of protection IP
IP40
With alarm function
No
Transparent
No
Animal zone
No
Surface finishing
Matt
Detection angle horizontal
360
360
Min. switch-on time
0.5
Max. duty cycle
99
Response value luminosity adjustable
Yes
Optimum mounting height
2.8
Pivoting range sensor, horizontal
0
0
Pivoting range sensor, vertical
0
0
Number of switching zones
1
With DALI interface
No
IFTTT support available
-
Forced switch on
-
Min. starting current
-
Min. depth of built-in installation box
-
Max. presence range
-
Compatible with Apple HomeKit
-
Compatible with Google Assistant
-
Compatible with Amazon Alexa
-
Max. switching power LED
-
Background monitoring
No
With acoustic sensor
No
EF020270
EV007611
Suitable for ceiling mounting
-
Anti-bacterial treatment
No
Brands
Legrand
Technical Sheet
