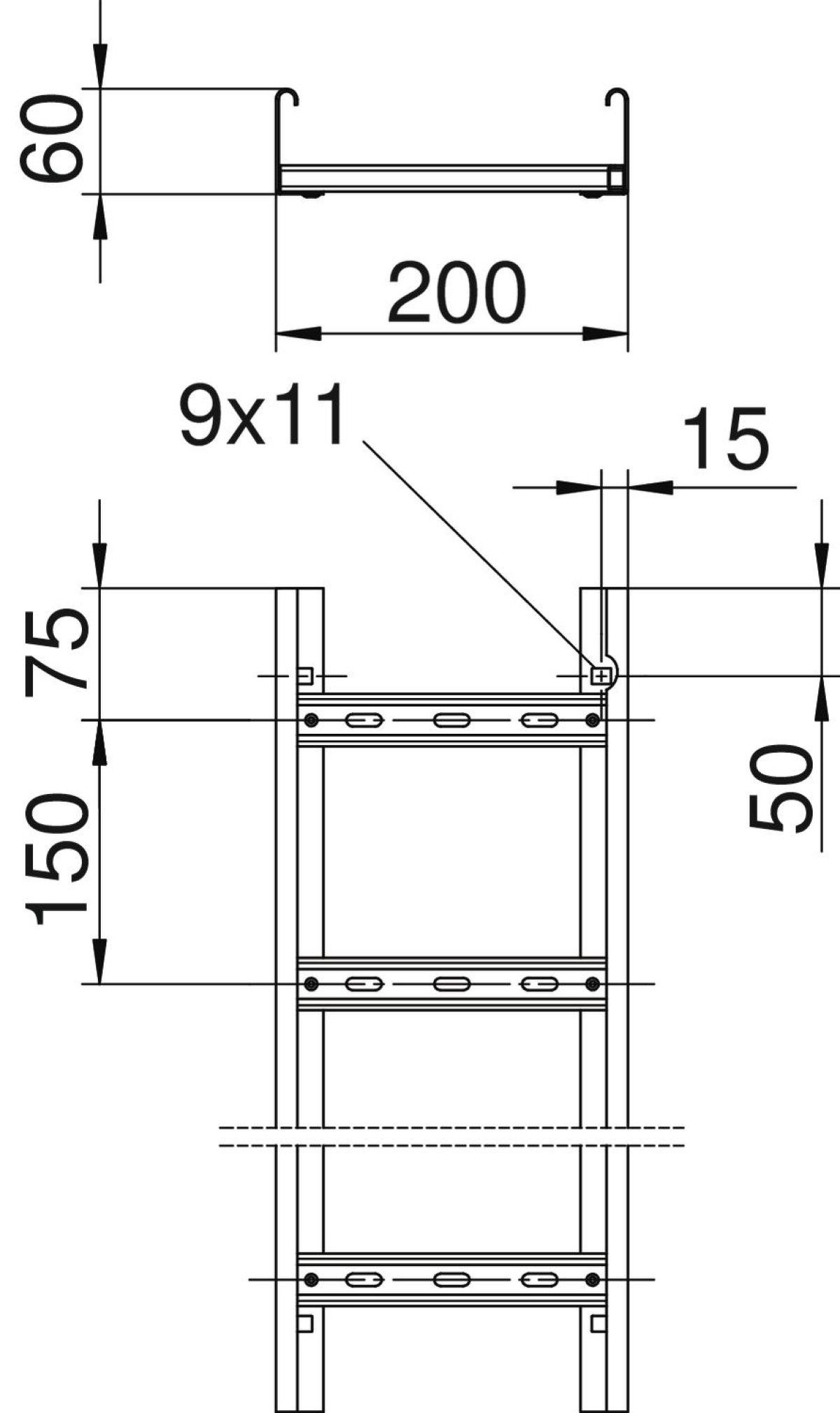

Escada para a colocação vertical de cabos e condutores. Aplicável como estrutura de suporte normalizada para a manutenção de funções conforme a DIN 4102 parte 12 Classes de manutenção de funções E30 até E90. Com degrau em perfil C rebitado com abertura para cima.
Cable Routes
C. cabos escada manut. funções Distância entre degraus 150mm 60x200x6000 Aço galvanizado pelo método Sendzimir zinco
Nortécnica Ref:
EAN:
4012195299639
Description
Technical Information
Attributes
Colour
Zinc
Largura
200
Altura
60
Número RAL
-
Surface protection
Continuously galvanised
Peso
3.12
Type of rung
Perforated profile
Side perforation
Yes
Material quality
-
Comprimento
6000
Working temperature
-
-
Material
Steel
Usable cross section
9800
Working length
-
Type of side joist
Profile (open)
Suitable for circuit integrity
Yes
Rung centre spacing
150
Fixation rung
Blind rivetted
Load test type according to IEC 61537
-
Vertical cable ladder
No
Possible support spacing
-
-
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
-
Safe working load according to IEC 61537 with support spacing 1.5 m
-
Safe working load according to IEC 61537 with support spacing 2.0 m
-
Safe working load according to IEC 61537 with support spacing 2.5 m
-
Safe working load according to IEC 61537 with support spacing 3.0 m
-
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
OBO
