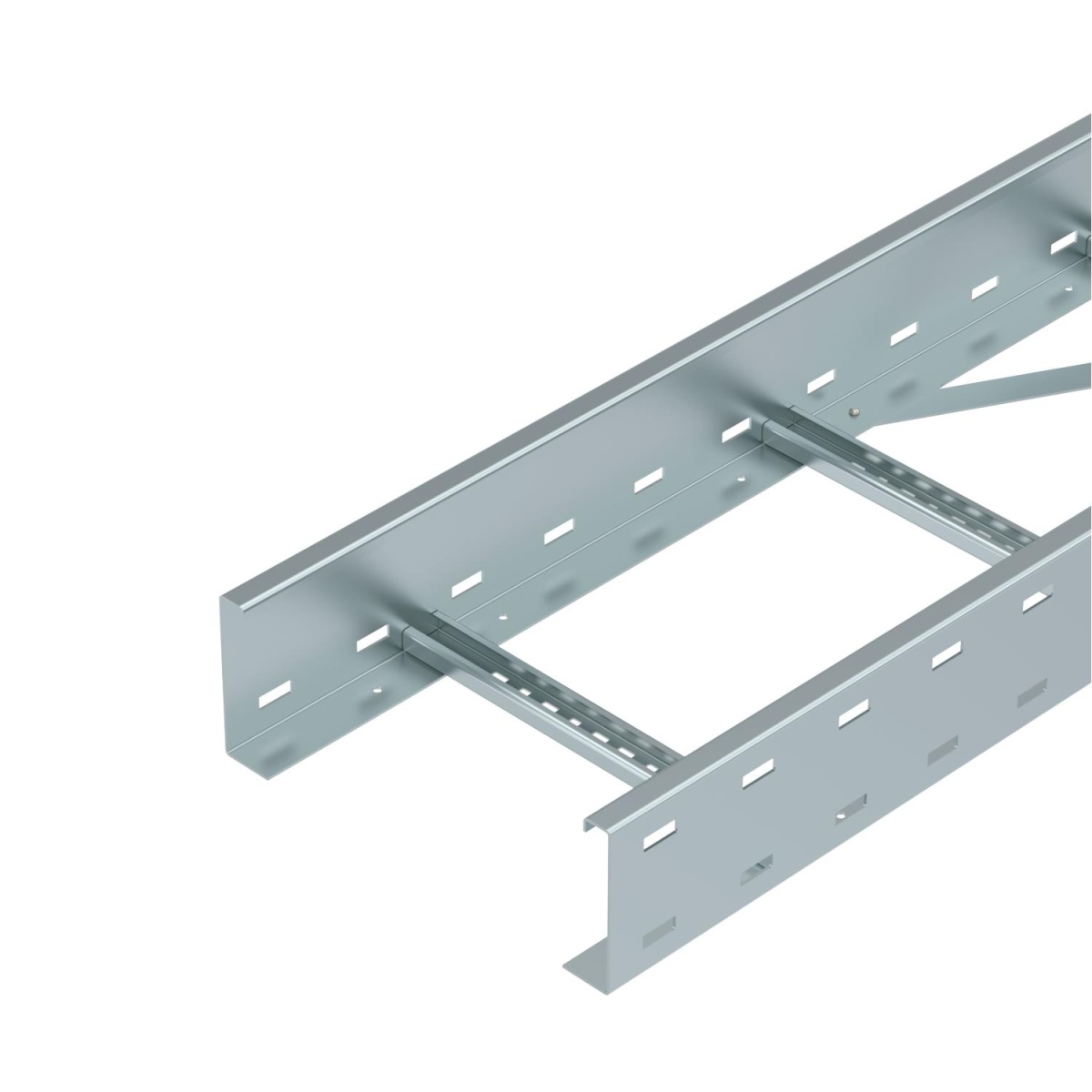

Caminho cabo escada grande vão aba perfurada 110x300x6000 Aço galvanizado pelo método Sendzimir zinco
Cable Routes
Caminho cabo escada grande vão aba perfurada 110x300x6000 Aço galvanizado pelo método Sendzimir zinco
Nortécnica Ref:
EAN:
4012196883097
Description
Technical Information
Attributes
Colour
Zinc
Width
300
Height
110
RAL-number
-
Surface protection
Continuously galvanised
Weight
5.83
Type of rung
Perforated profile
Side perforation
Yes
Material quality
-
Length
6000
Working temperature
-
-
Material
Steel
Usable cross section
28100
Working length
-
Type of side joist
Profile (open)
Suitable for circuit integrity
No
Rung centre spacing
-
Fixation rung
-
Load test type according to IEC 61537
-
Vertical cable ladder
No
Possible support spacing
3
7
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
-
Safe working load according to IEC 61537 with support spacing 1.5 m
-
Safe working load according to IEC 61537 with support spacing 2.0 m
-
Safe working load according to IEC 61537 with support spacing 2.5 m
-
Safe working load according to IEC 61537 with support spacing 3.0 m
2500
Safe working load according to IEC 61537 with support spacing 4.0 m
1600
Safe working load according to IEC 61537 with support spacing 5.0 m
1100
Safe working load according to IEC 61537 with support spacing 6.0 m
800
Safe working load according to IEC 61537 with support spacing 7.0 m
400
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
OBO
