Caminho de cabos em chapa não perfurado com união de encaixe rápido integrada. Revestimento preto.
Cable Routes

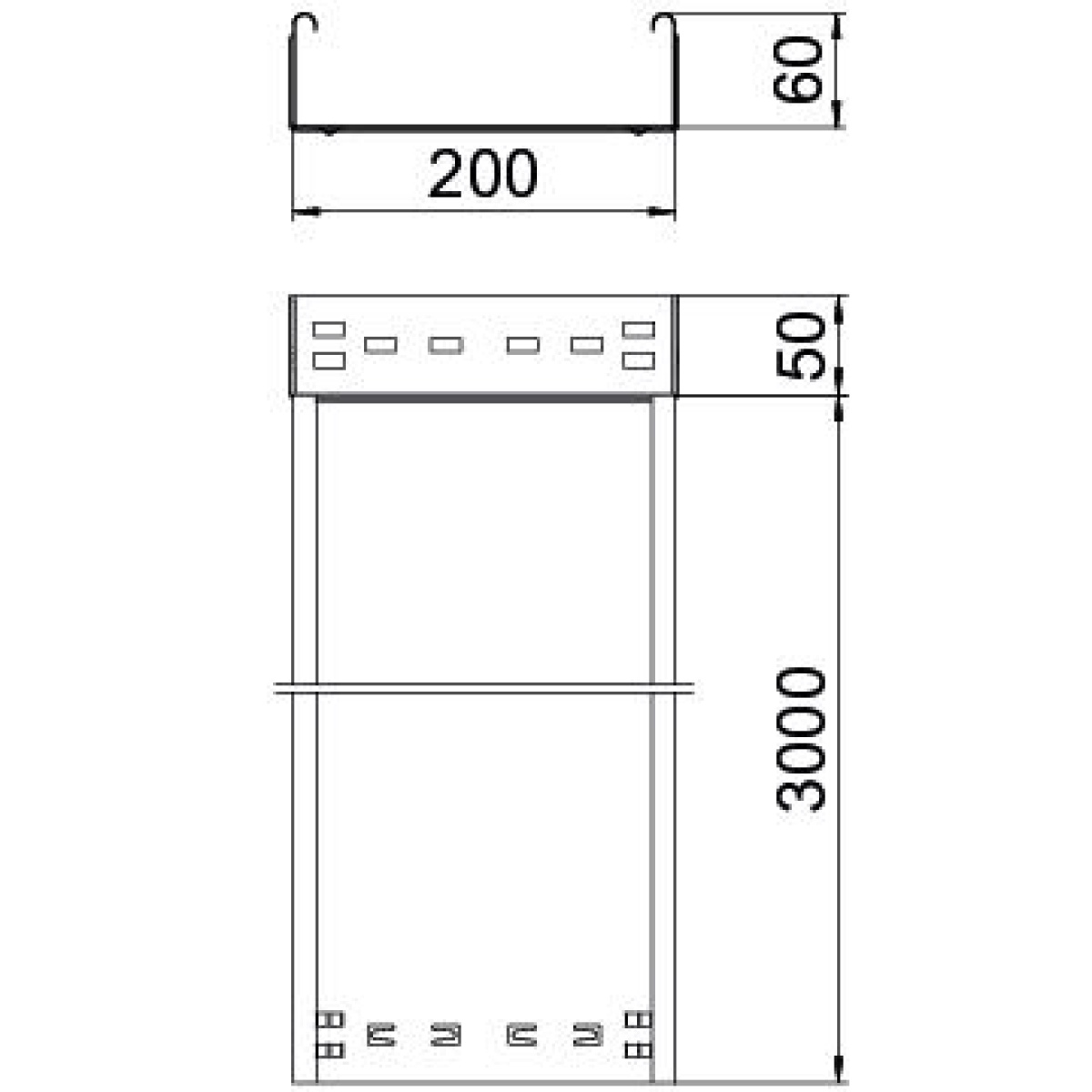

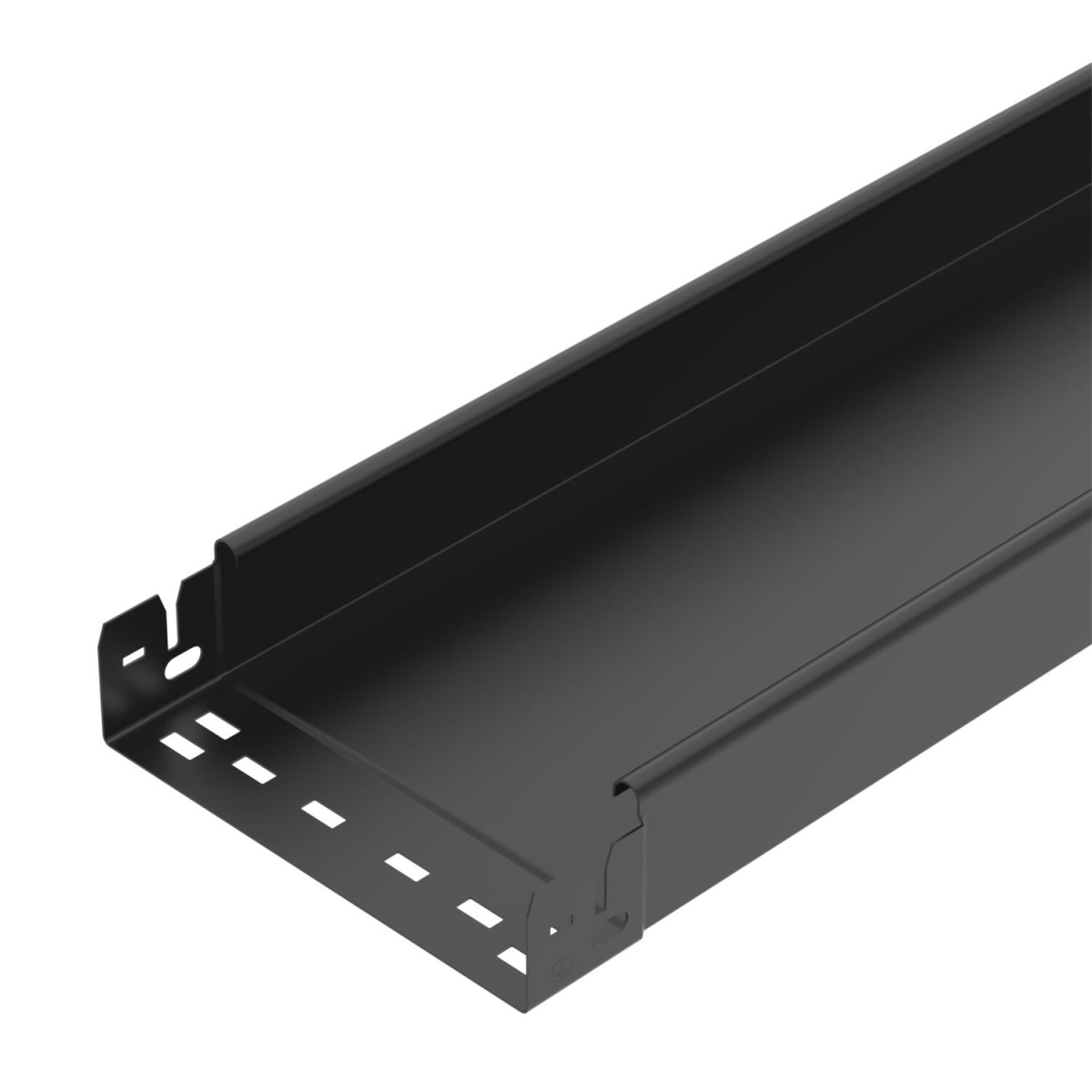

Caminho de cabos chapa MKSMU não perfurado,união de encaixe 60x200x3050 Aço PES135 - Poliéster preto RAL 9005
Nortécnica Ref:
EAN:
4012197442187
Description
Technical Information
Attributes
Colour
Black
Width
200
Model
Integrated connector
Height
60
Type of connection
Click in mounting
RAL-number
9005
Surface protection
Powder coating
Weight
2.85
Material thickness
1
Side perforation
No
Material quality
-
Length
3050
Working temperature
-
-
Material
Steel
Bottom perforation
No
Usable cross section
11800
NATO-mounting holes
No
Working length
3000
Suitable for circuit integrity
No
With cover
No
Load test type according to IEC 61537
-
Possible support spacing
1.5
2.5
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
-
Safe working load according to IEC 61537 with support spacing 1.5 m
1500
Safe working load according to IEC 61537 with support spacing 2.0 m
1000
Safe working load according to IEC 61537 with support spacing 2.5 m
500
Safe working load according to IEC 61537 with support spacing 3.0 m
-
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
OBO
Long Description
Caminho de cabos em chapa não perfurado com união de encaixe rápido integrada. Revestimento preto.
