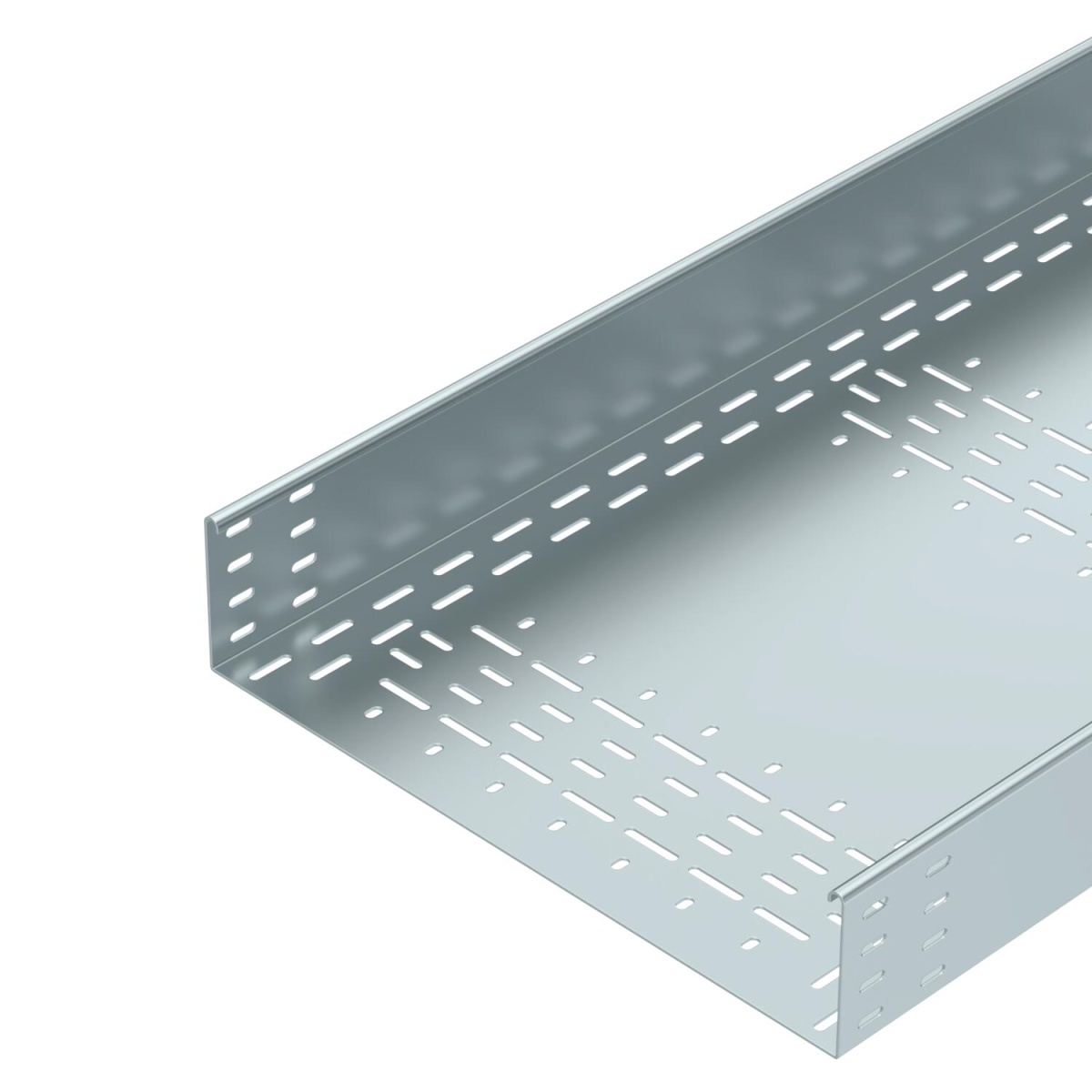

Caminho de cabos em chapa BKRS para passagens 110x500x3000 Aço galvanizado pelo método Sendzimir zinco
Cable Routes
Caminho de cabos em chapa BKRS para passagens 110x500x3000 Aço galvanizado pelo método Sendzimir zinco
Nortécnica Ref:
EAN:
4012196147069
Description
Technical Information
Attributes
Colour
Zinc
Width
500
Model
Without connector
Height
110
Type of connection
Screwed
RAL-number
-
Surface protection
Continuously galvanised
EF000141
EV000115
Weight
11.03
Material thickness
2
Side perforation
No
Material quality
-
Length
3000
Working temperature
-
-
Material
Steel
Bottom perforation
Yes
Usable cross section
49600
NATO-mounting holes
No
Working length
-
Suitable for circuit integrity
No
With cover
No
Load test type according to IEC 61537
Type II
Possible support spacing
1.5
3
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
-
Safe working load according to IEC 61537 with support spacing 1.5 m
1670
Safe working load according to IEC 61537 with support spacing 2.0 m
1460
Safe working load according to IEC 61537 with support spacing 2.5 m
1200
Safe working load according to IEC 61537 with support spacing 3.0 m
920
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
OBO
