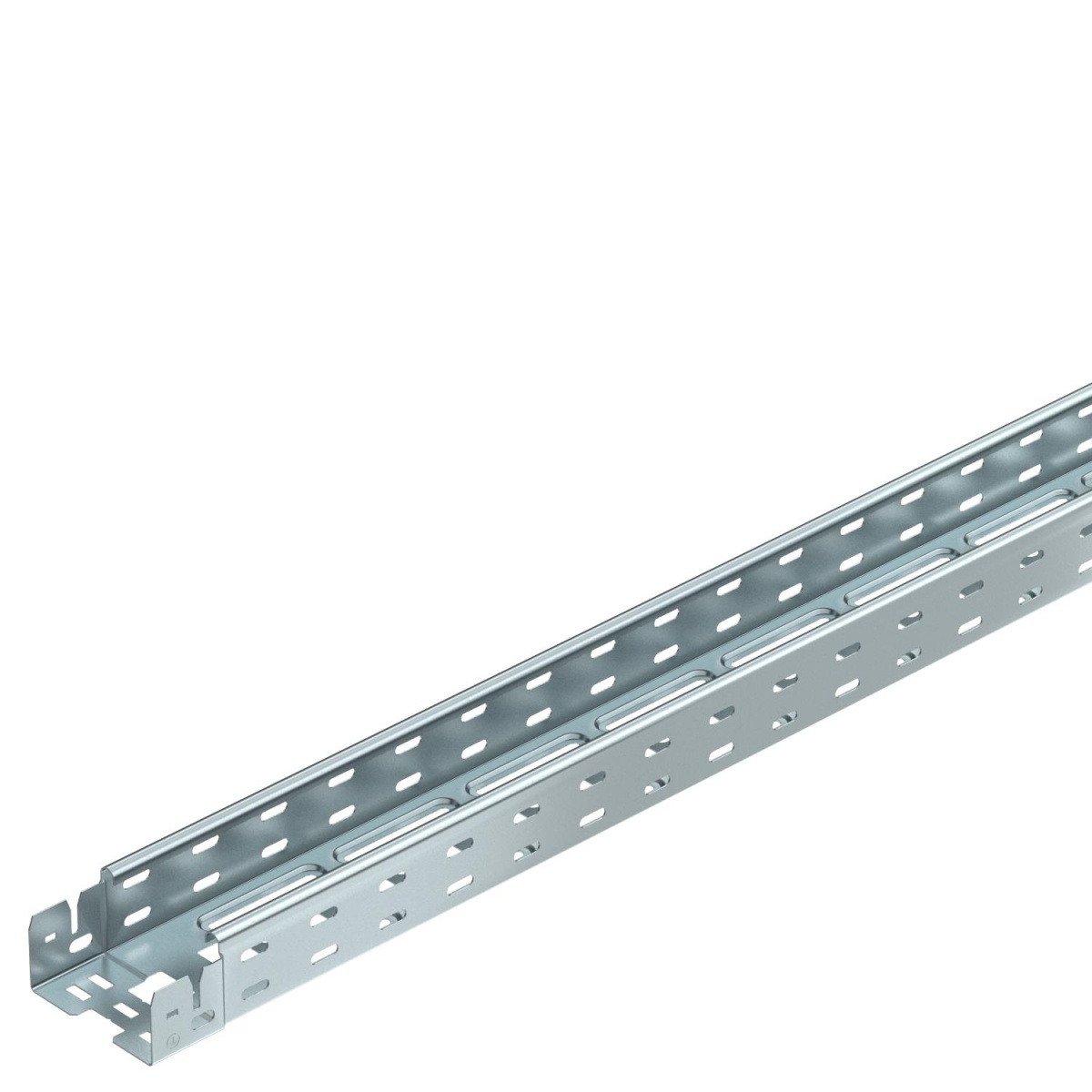

Caminho de cabos em chapa MKSM perfurado, união de encaixe 60x100x3050 Aço galvanizado pelo método Sendzimir zinco
Cable Routes
Caminho de cabos em chapa MKSM perfurado, união de encaixe 60x100x3050 Aço galvanizado pelo método Sendzimir zinco
Nortécnica Ref:
256059000
EAN:
4012195829553
Description
Technical Information
Attributes
Colour
Zinc
Width
100
Model
Integrated connector
Height
60
Type of connection
Click in mounting
RAL-number
-
Surface protection
Continuously galvanised
EF000141
EV008273
Weight
1.66
Material thickness
1
Side perforation
Yes
Material quality
-
Length
3050
Working temperature
-
-
Material
Steel
Bottom perforation
Yes
Usable cross section
5800
NATO-mounting holes
No
Working length
3000
Suitable for circuit integrity
No
With cover
No
Load test type according to IEC 61537
Type II
Possible support spacing
1.5
2.5
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
-
Safe working load according to IEC 61537 with support spacing 1.5 m
1600
Safe working load according to IEC 61537 with support spacing 2.0 m
1100
Safe working load according to IEC 61537 with support spacing 2.5 m
700
Safe working load according to IEC 61537 with support spacing 3.0 m
-
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
OBO
