RKS 35 = Sistema de caminhos de cabos com altura lateral de 35 mm.
Cable Routes

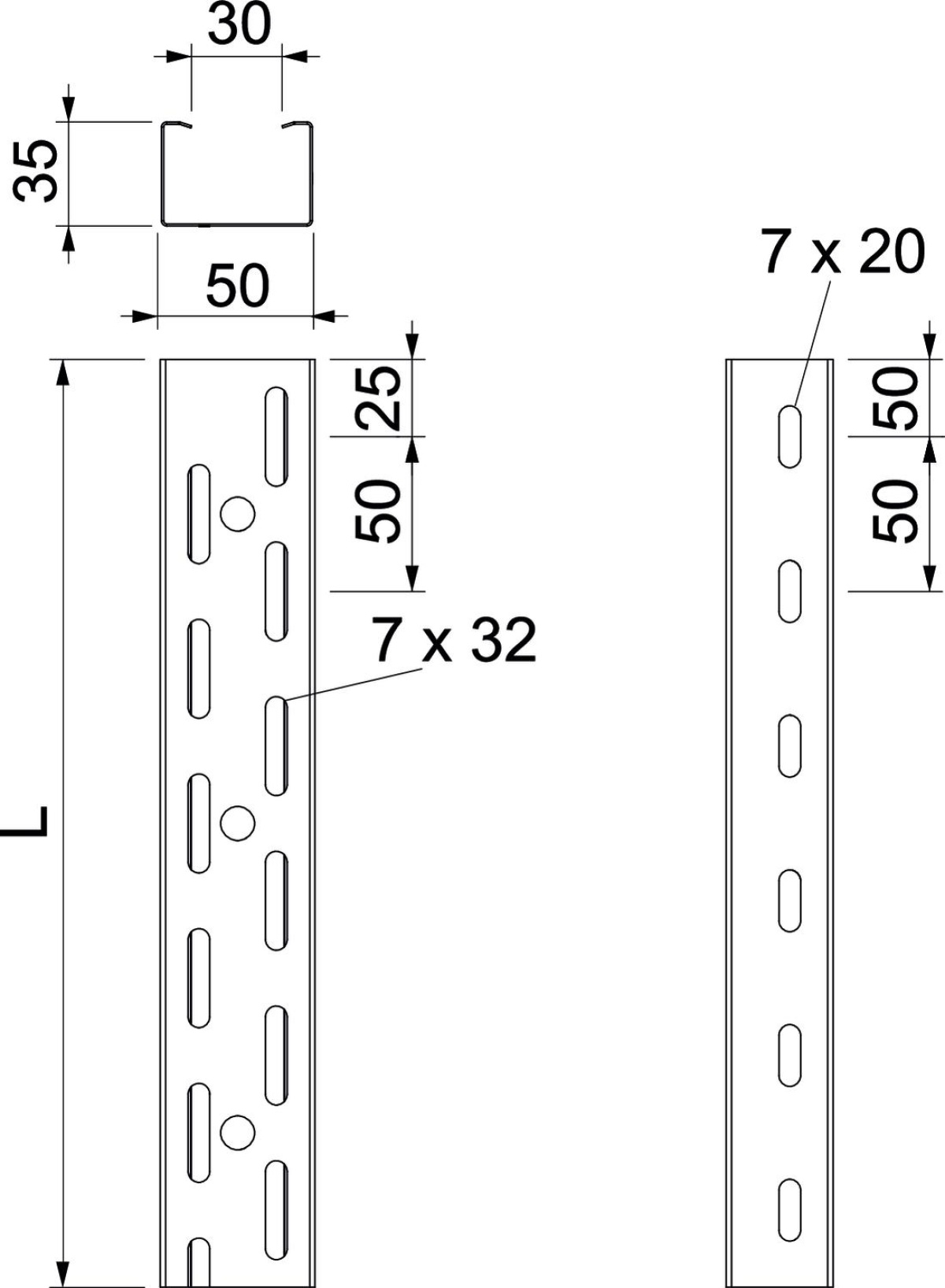

Caminho de cabos em chapa RKS perfurado 35x50x3000 Aço galvanizado pelo método Sendzimir zinco
Nortécnica Ref:
256047410
EAN:
4012196662104
Description
Technical Information
Attributes
Colour
Zinc
Largura
50
Model
Without connector
Altura
35
Type of connection
Screwed
Número RAL
-
Surface protection
Continuously galvanised
EF000141
EV000115
Weight
0.7
Material thickness
0.75
Side perforation
Yes
Material quality
-
Comprimento
3000
Working temperature
-
-
Material
Steel
Bottom perforation
Yes
Secção transversal útil
1600
NATO-mounting holes
No
Working length
-
Suitable for circuit integrity
No
With cover
No
Load test type according to IEC 61537
Type II
Possible support spacing
1
3
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
1200
Safe working load according to IEC 61537 with support spacing 1.5 m
500
Safe working load according to IEC 61537 with support spacing 2.0 m
300
Safe working load according to IEC 61537 with support spacing 2.5 m
100
Safe working load according to IEC 61537 with support spacing 3.0 m
50
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
OBO
Descrição Longa
RKS 35 = Sistema de caminhos de cabos com altura lateral de 35 mm.
