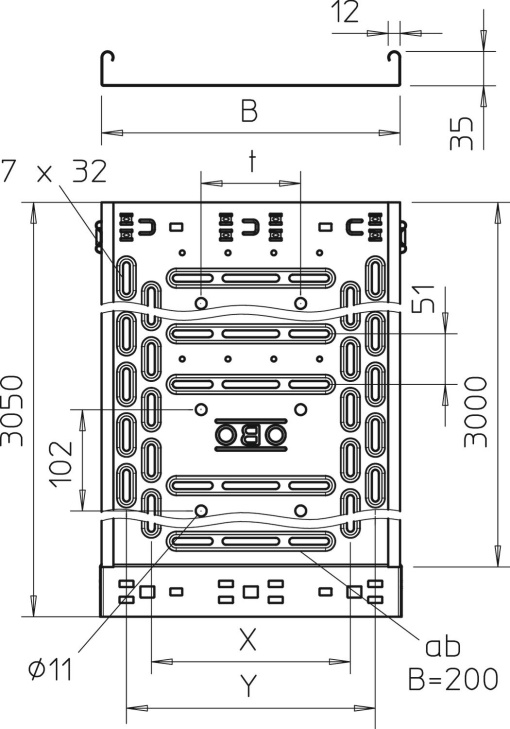

Caminho de cabos em chapa RKSM Magic, com união de encaixe 35x300x3050 Aço galvanizado pelo método Sendzimir zinco
Cable Routes
Caminho de cabos em chapa RKSM Magic, com união de encaixe 35x300x3050 Aço galvanizado pelo método Sendzimir zinco
Nortécnica Ref:
256047460
EAN:
4012195390862
Description
Technical Information
Attributes
Colour
Zinc
Width
300
Model
Integrated connector
Height
35
Type of connection
Click in mounting
RAL-number
-
Surface protection
Continuously galvanised
EF000141
EV008273
Weight
2.1
Material thickness
0.75
Side perforation
Yes
Material quality
-
Length
3050
Working temperature
-
-
Material
Steel
Bottom perforation
Yes
Usable cross section
10300
NATO-mounting holes
No
Working length
3000
Suitable for circuit integrity
No
With cover
No
Load test type according to IEC 61537
Type II
Possible support spacing
1
3
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
1400
Safe working load according to IEC 61537 with support spacing 1.5 m
600
Safe working load according to IEC 61537 with support spacing 2.0 m
400
Safe working load according to IEC 61537 with support spacing 2.5 m
200
Safe working load according to IEC 61537 with support spacing 3.0 m
100
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
OBO
