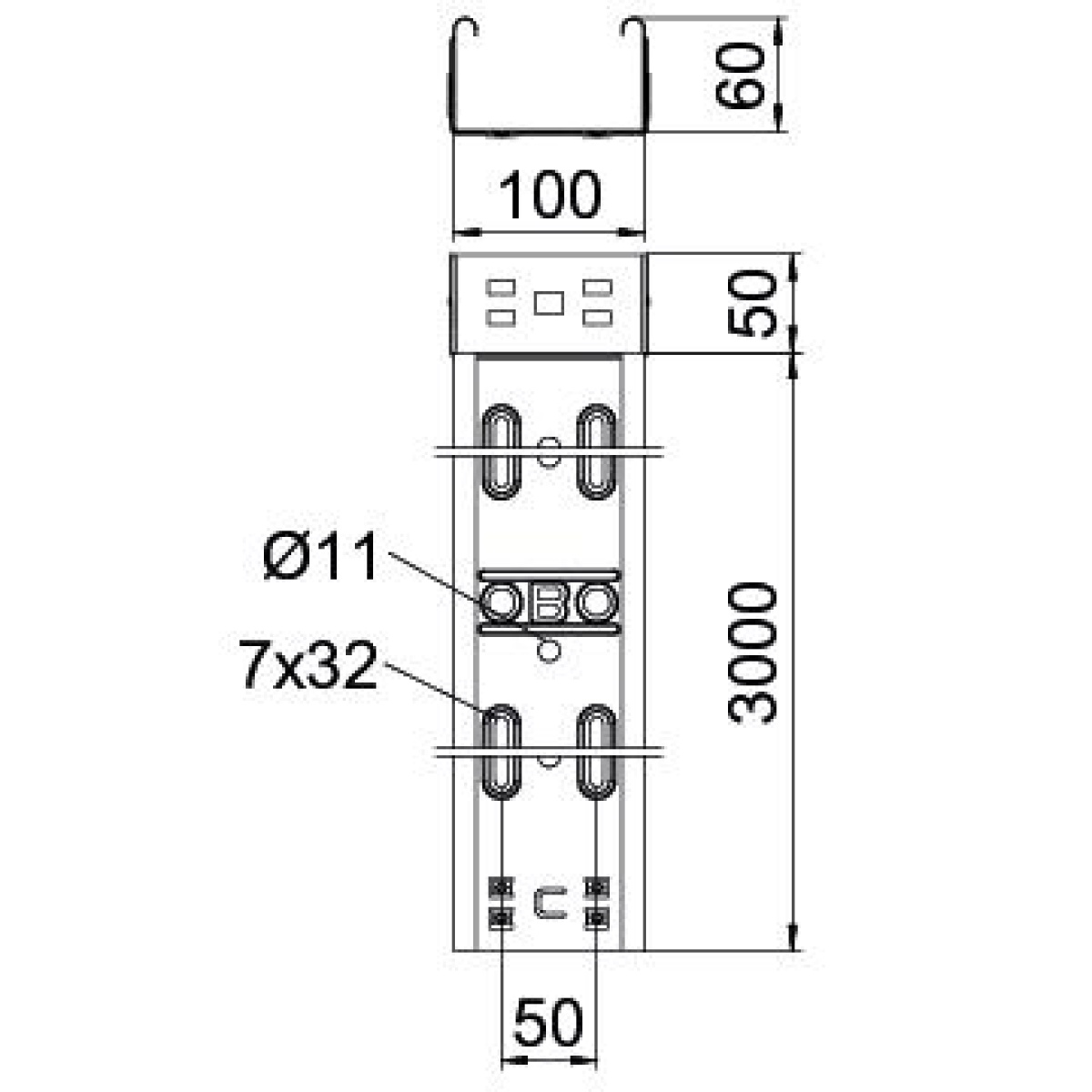

Caminho de cabos em chapa com união de encaixe rápido integrada. Superfície com galvanização contínua, revestida a pó em preto profundo (RAL 9005). Perfuração lateral contínua de 7 x 20 mm para a instalação de componentes de ligação e de montagem adicionais. Com orifício de 11 mm na base para a suspensão direta do varão roscado. Comprimento útil de 3.000 mm.
Cable Routes

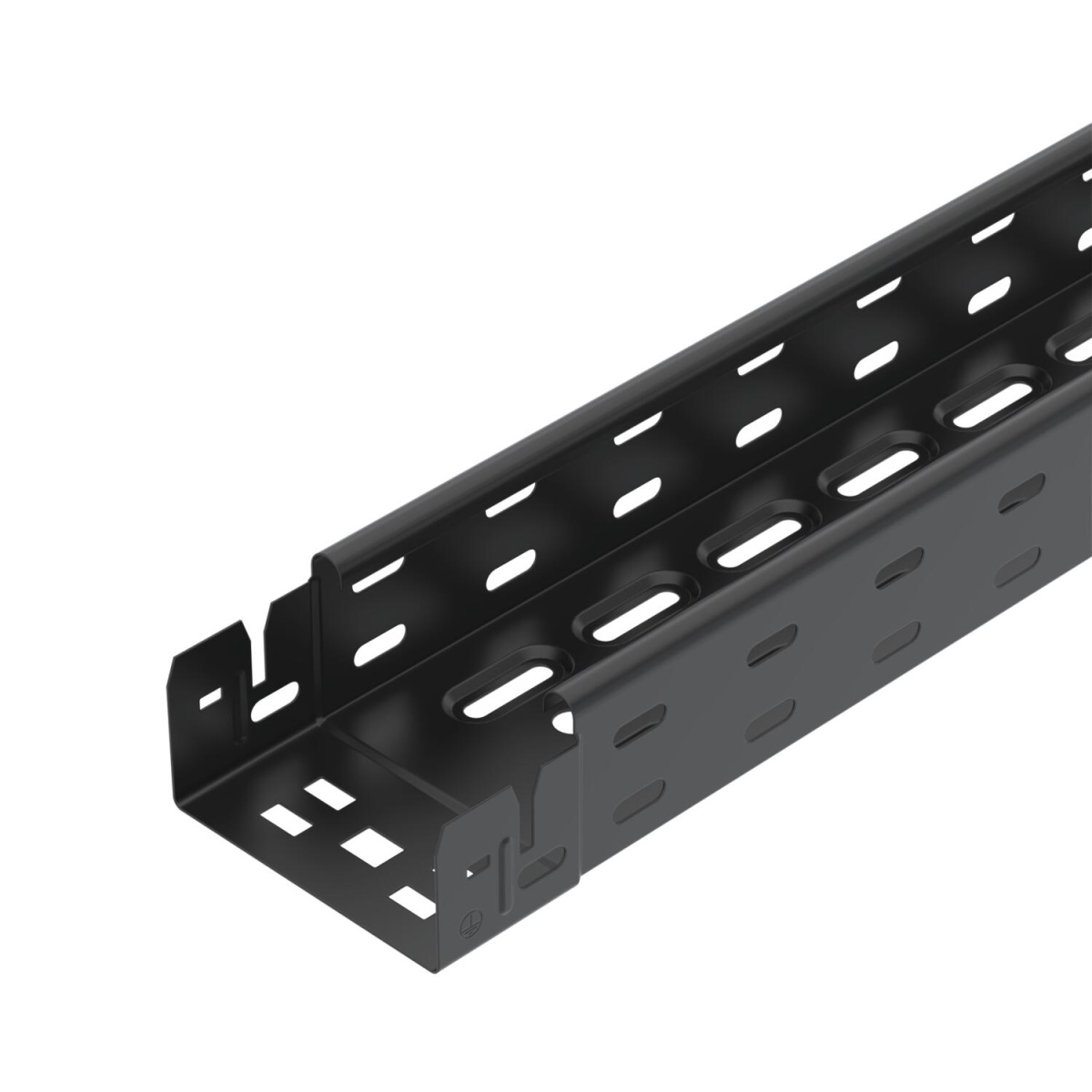

Caminho de cabos em chapa RKSM Magic, com união de encaixe 60x100x3050 Aço PES135 - Poliéster preto RAL 9005
Nortécnica Ref:
EAN:
4012197267001
Description
Technical Information
Attributes
Colour
Black
Largura
100
Model
Integrated connector
Altura
60
Type of connection
Click in mounting
Número RAL
9005
Surface protection
Powder coating
Peso
1.36
Material thickness
0.75
Side perforation
Yes
Material quality
-
Comprimento
3050
Working temperature
-
-
Material
Steel
Bottom perforation
Yes
Usable cross section
5800
NATO-mounting holes
No
Working length
3000
Suitable for circuit integrity
Yes
With cover
No
Load test type according to IEC 61537
Type II
Possible support spacing
1
2.5
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
1200
Safe working load according to IEC 61537 with support spacing 1.5 m
900
Safe working load according to IEC 61537 with support spacing 2.0 m
600
Safe working load according to IEC 61537 with support spacing 2.5 m
400
Safe working load according to IEC 61537 with support spacing 3.0 m
-
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
OBO
