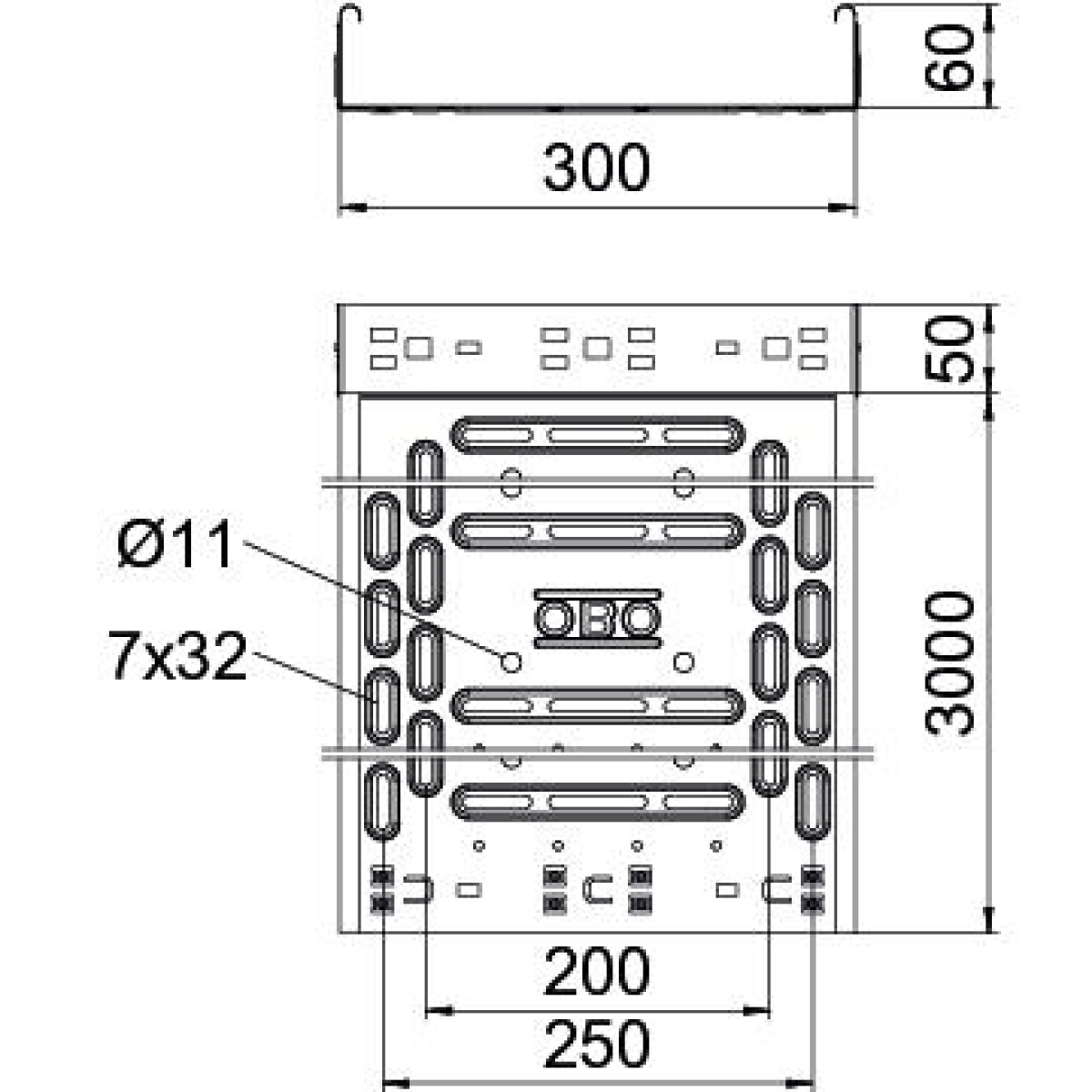

Caminho de cabos em chapa com união de encaixe rápido integrada. Superfície com galvanização contínua, revestida a pó em preto profundo (RAL 9005). Perfuração lateral contínua de 7 x 20 mm para a instalação de componentes de ligação e de montagem adicionais. Com orifício de 11 mm na base para a suspensão direta do varão roscado. Comprimento útil de 3.000 mm.
Cable Routes

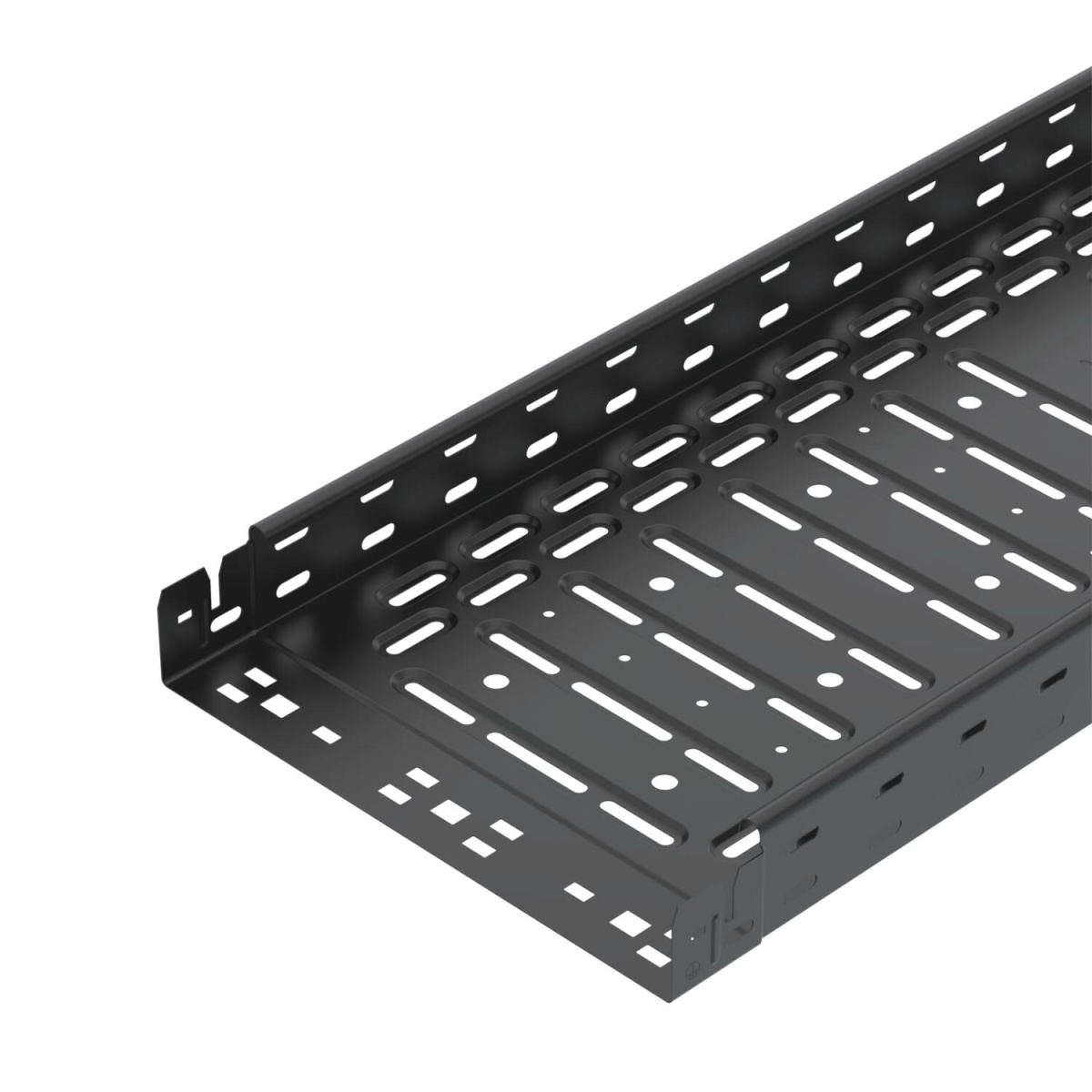

Caminho de cabos em chapa RKSM Magic, com união de encaixe 60x300x3050 Aço PES135 - Poliéster preto RAL 9005
Nortécnica Ref:
EAN:
4012196556052
Description
Technical Information
Attributes
Colour
Black
Width
300
Model
Integrated connector
Height
60
Type of connection
Click in mounting
RAL-number
9005
Surface protection
Powder coating
Weight
2.44
Material thickness
0.75
Side perforation
Yes
Material quality
-
Length
3050
Working temperature
-
-
Material
Steel
Bottom perforation
Yes
Usable cross section
17800
NATO-mounting holes
No
Working length
3000
Suitable for circuit integrity
Yes
With cover
No
Load test type according to IEC 61537
Type II
Possible support spacing
1
2.5
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
1200
Safe working load according to IEC 61537 with support spacing 1.5 m
1000
Safe working load according to IEC 61537 with support spacing 2.0 m
550
Safe working load according to IEC 61537 with support spacing 2.5 m
400
Safe working load according to IEC 61537 with support spacing 3.0 m
-
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
OBO
Long Description
Caminho de cabos em chapa com união de encaixe rápido integrada. Superfície com galvanização contínua, revestida a pó em preto profundo (RAL 9005). Perfuração lateral contínua de 7 x 20 mm para a instalação de componentes de ligação e de montagem adicionais. Com orifício de 11 mm na base para a suspensão direta do varão roscado. Comprimento útil de 3.000 mm.
