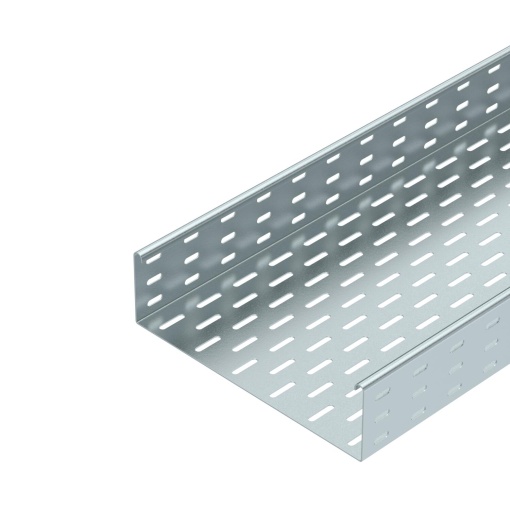

Caminho de cabos em chapa SKS perfurada 85x300x3000 Aço galvanizado pelo método Sendzimir zinco
Cable Routes
Caminho de cabos em chapa SKS perfurada 85x300x3000 Aço galvanizado pelo método Sendzimir zinco
Nortécnica Ref:
EAN:
4012196061211
Description
Technical Information
Attributes
Colour
Zinc
Width
300
Model
Included connector
Height
85
Type of connection
Screwed
RAL-number
-
Surface protection
Continuously galvanised
Weight
5.29
Material thickness
1.5
Side perforation
Yes
Material quality
-
Length
3000
Working temperature
-
-
Material
Steel
Bottom perforation
Yes
Usable cross section
25300
NATO-mounting holes
No
Working length
-
Suitable for circuit integrity
No
With cover
No
Load test type according to IEC 61537
Type II
Possible support spacing
1.5
3
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
-
Safe working load according to IEC 61537 with support spacing 1.5 m
2800
Safe working load according to IEC 61537 with support spacing 2.0 m
2250
Safe working load according to IEC 61537 with support spacing 2.5 m
1500
Safe working load according to IEC 61537 with support spacing 3.0 m
750
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
OBO
