Caminho de cabos em varão com união de encaixe rápido com 105 mm de altura lateral.
Cable Routes

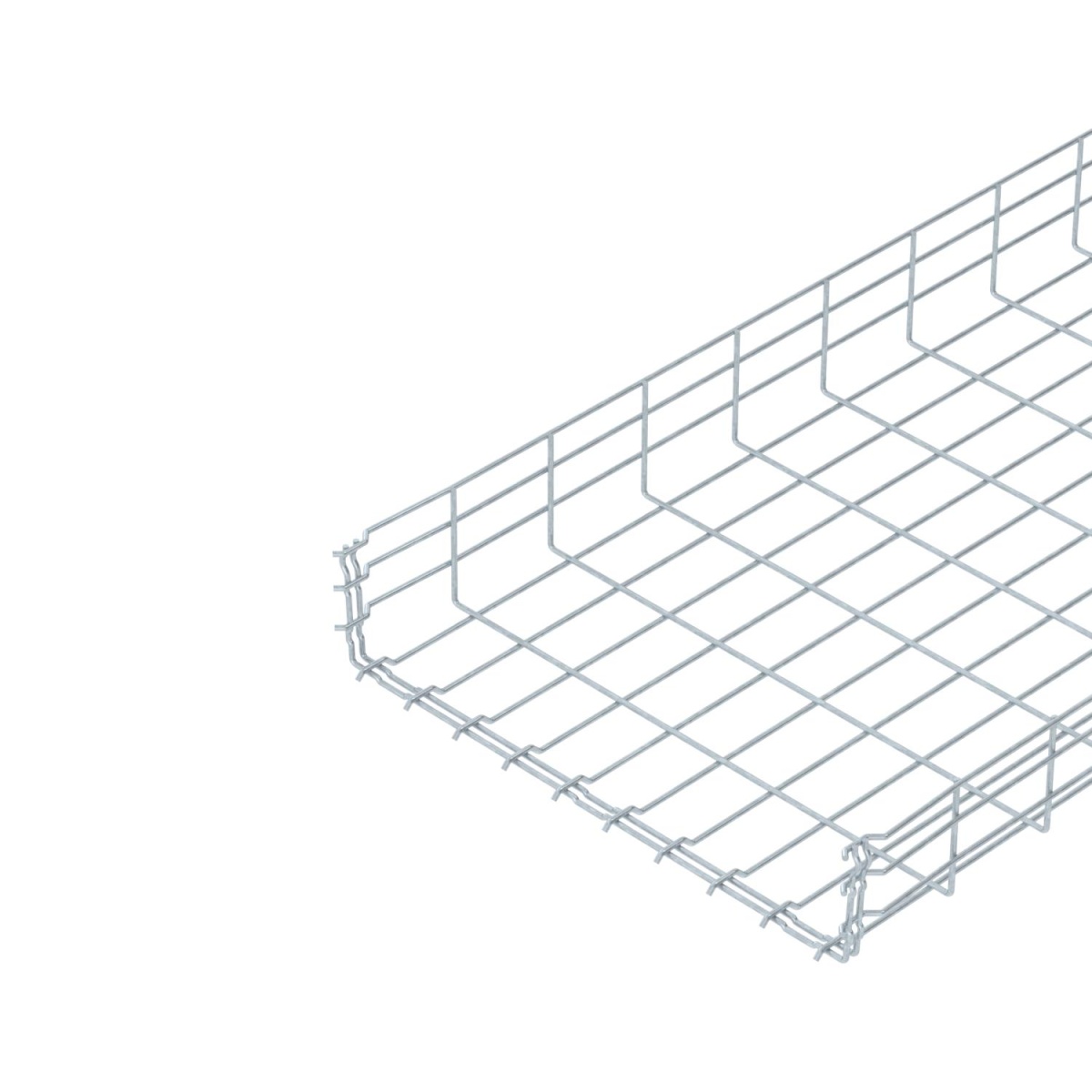

Caminho de cabos em varão GRM 105x500x3000 Aço Galvanizado por imersão a quente após maquinação zinco
Nortécnica Ref:
256002443
EAN:
4012196021956
Description
Technical Information
Attributes
Colour
Zinc

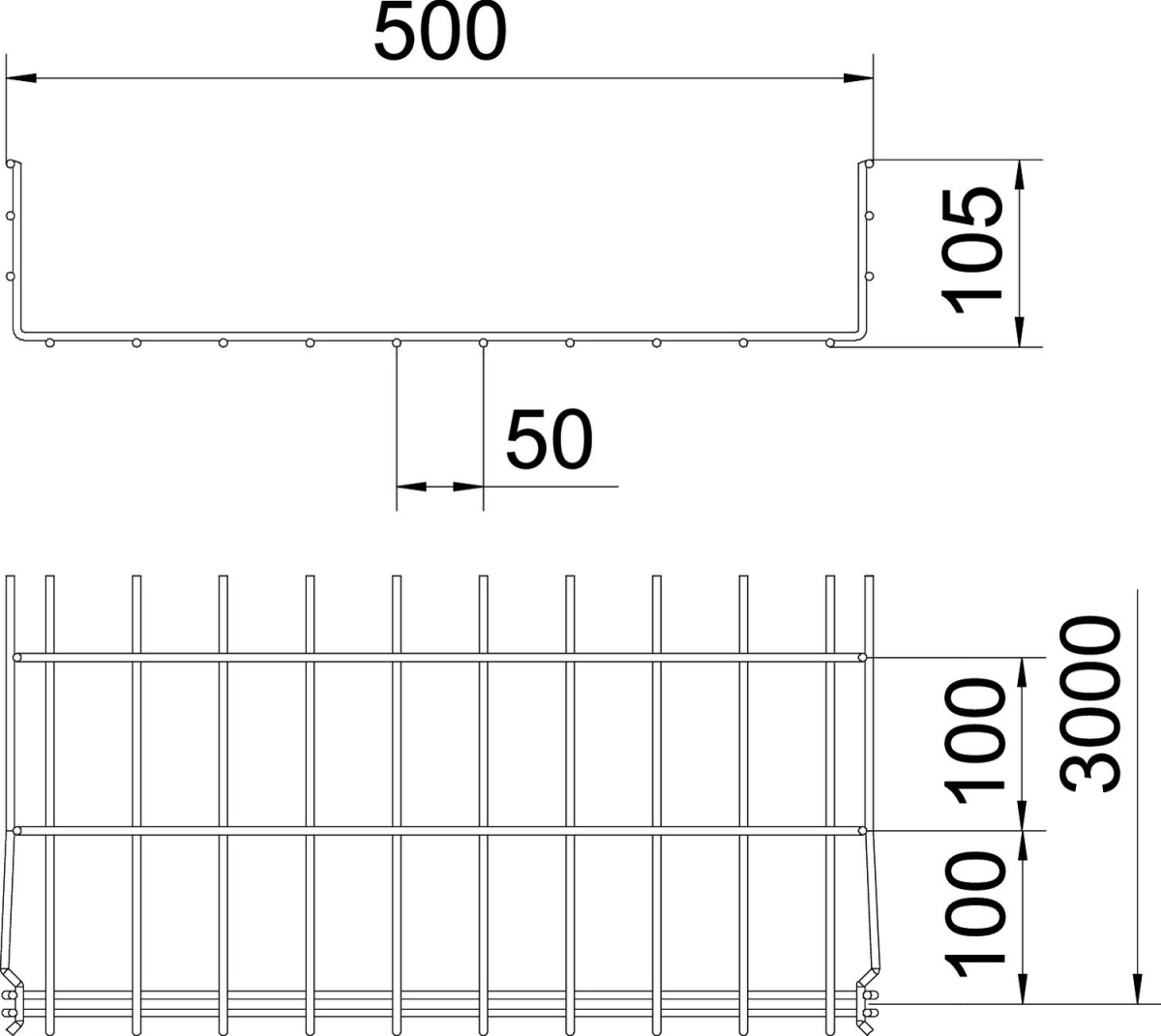

Width
500
Model
Integrated connector
Height
105
Type of connection
-
RAL-number
-
Surface protection
Hot-dip galvanised
EF000141
EV008273
Weight
3.35
Material quality
-
Length
3000
Working temperature
-
-
Material
Steel
Integrated partition
None
Usable cross section
45900
Profile shape
U-shape
Working length
-
Suitable for circuit integrity
No
Load test type according to IEC 61537
Type II
Diameter longitudinal wire
4.8
Possible support spacing
1
3
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
1600
Safe working load according to IEC 61537 with support spacing 1.5 m
800
Safe working load according to IEC 61537 with support spacing 2.0 m
500
Safe working load according to IEC 61537 with support spacing 2.5 m
330
Safe working load according to IEC 61537 with support spacing 3.0 m
300
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Diameter transverse wire
4.8
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
OBO
Long Description
Caminho de cabos em varão com união de encaixe rápido com 105 mm de altura lateral.
