Caminho de cabos em varão com união de encaixe rápido com 55 mm de altura lateral.
Cable Routes

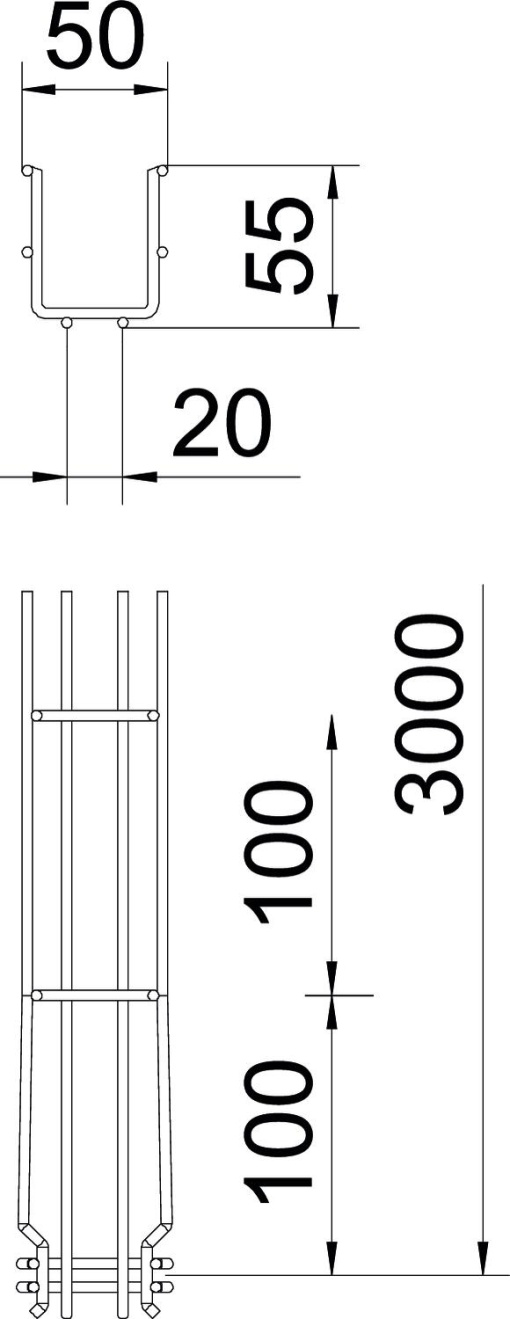

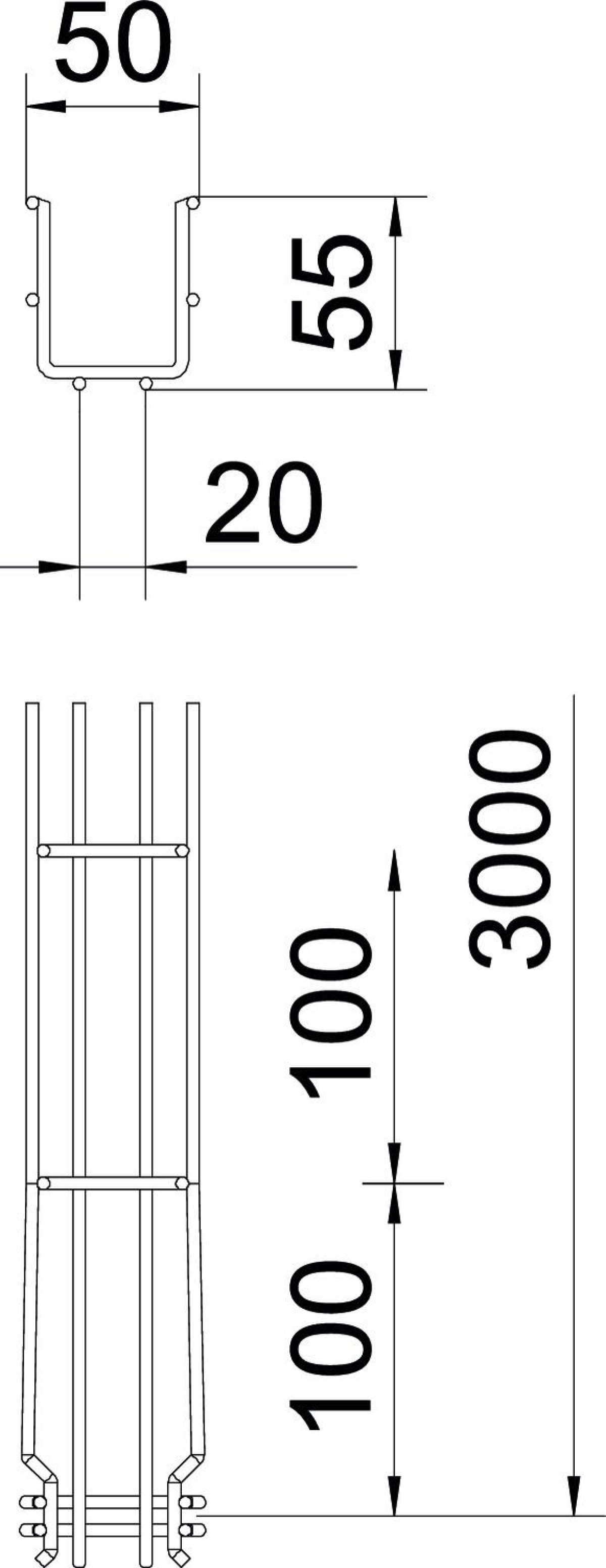

Caminho de cabos em varão GRM 55x50x3000 Aço eletrogalvanizado zinco
Nortécnica Ref:
256001441
EAN:
4012195430957
Description
Technical Information
Attributes
Colour
Zinc
Largura
50
Model
Integrated connector
Altura
55
Type of connection
-
Número RAL
-
Surface protection
Galvanic/electrolytic zinc plated
EF000141
EV008273
Peso
0.67
Material quality
-
Comprimento
3000
Working temperature
-
-
Material
Steel
Integrated partition
None
Usable cross section
1600
Profile shape
U-shape
Working length
-
Suitable for circuit integrity
Yes
Load test type according to IEC 61537
Type II
Diameter longitudinal wire
3.9
Possible support spacing
1
2.5
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
350
Safe working load according to IEC 61537 with support spacing 1.5 m
200
Safe working load according to IEC 61537 with support spacing 2.0 m
100
Safe working load according to IEC 61537 with support spacing 2.5 m
100
Safe working load according to IEC 61537 with support spacing 3.0 m
-
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Diameter transverse wire
3.9
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
OBO
