Caixa de aparelhagem de encastrar dupla com entradas de membrana herméticas, para utilização em alvenaria com uma profundidade de instalação de pelo menos 67 mm. • Com 4 uniões de ligação acopláveis com fecho de baioneta • 4 entradas de tubos combinadas Ø 20 e 25 mm • 4 entradas até Ø 20 mm • 14 entradas até Ø 11 mm • 2 entradas até Ø 20 mm na base
Boxes

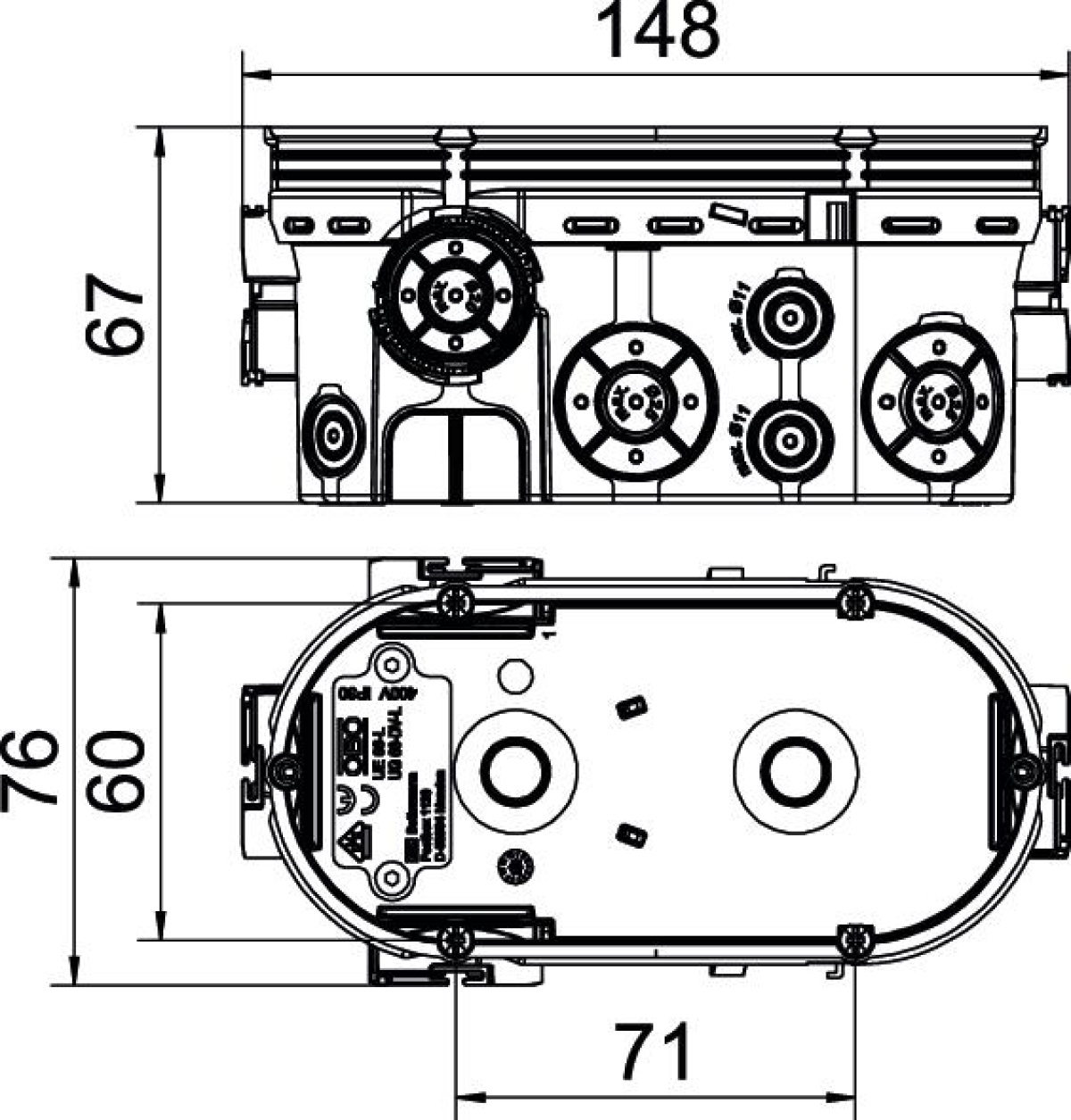

Caixa de aparelhagem UP versão dupla, hermética 2x Ø61xH67mm Polipropileno Elastómero termoplástico preto negro azul acinzentado
Nortécnica Ref:
EAN:
4012196856558
Description
Technical Information
Attributes
Mounting method
-
Colour
Black
Width
68
Model
Double
Halogen free
Yes
Shape
Oval
Surface protection
-
Diameter
-
Equipped with
-
Construction type
Device connection box (round/square)
Inner depth
-
Couplable
-
Length
148
Sealable
-
Circuit integrity
-
Material
Plastic
Number of inlets
24
Mounting switching equipment
Screw or spread out
Cover attachment
Screwed
For number of device inserts
-
Luminaire hook mounting
-
Max. conductor cross section
-
With screening
-
With screws
Yes
Airtight
-
Depth
67
67
Suitable for cable diameter
-
-
Degree of protection IP
IP30
For tube diameter
20/25 mm
Inlet from the rear
Yes
Pipe locking
-
Special application
-
Clamp position fixed
-
With partition panel
-
Number of poles of the clamp
-
Nozzle
-
Provided with revolving ring
-
Housing feed-through by seal membrane
Yes
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
Pipe locking optional
-
Number of included spouts
-
Cover model
-
Housing feed-through by break-out opening
No
Transparent cover
-
Degree of protection NEMA
-
Suitable for wallboard thickness
-
Number of non-adjustable device fixing lugs
-
Number of adjustable device fixing lugs
-
Compliant with BS 4662
-
Brands
OBO
Descrição Longa
Caixa de aparelhagem de encastrar dupla com entradas de membrana herméticas, para utilização em alvenaria com uma profundidade de instalação de pelo menos 67 mm.
• Com 4 uniões de ligação acopláveis com fecho de baioneta
• 4 entradas de tubos combinadas Ø 20 e 25 mm
• 4 entradas até Ø 20 mm
• 14 entradas até Ø 11 mm
• 2 entradas até Ø 20 mm na base
