Caixa de eletrónica de encastrar com espaço de ligação adicional, para utilização em alvenaria com uma profundidade de instalação de pelo menos 66 mm. • Com 4 uniões de ligação acopláveis com fecho de baioneta • 6 entradas de tubos combinadas até Ø 20 e 25 mm • 8 entradas até Ø 20 mm • 6 entradas até Ø 14 mm • 2 entradas até Ø 20 mm na base • Separador para diferentes tensões, com aberturas de quebra • 4 x 3 cúpulas de parafuso
Boxes

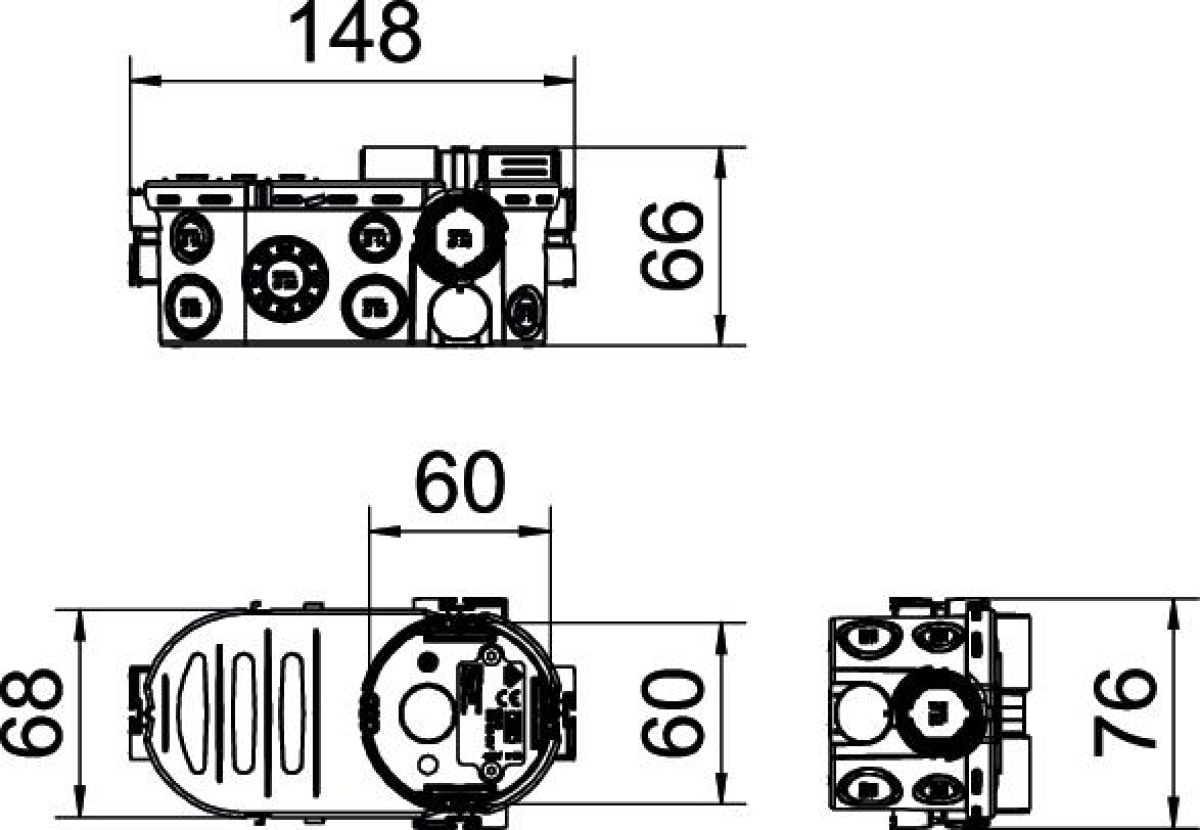

Caixa de eletrónica UP com parafusos de fixação Ø60xH66x148 Polipropileno preto negro
Nortécnica Ref:
EAN:
4012196856565
Description
Technical Information
Attributes
Mounting method
-
Colour
Black
Largura
76
Model
Single
Halogen free
Yes
Shape
Oval
Surface protection
-
Diâmetro
60
Equipped with
-
Construction type
Other
Inner depth
-
Couplable
-
Comprimento
148
Sealable
-
Circuit integrity
-
Material
Plastic
Number of inlets
22
Mounting switching equipment
Screwing
Cover attachment
Screwed
Suitable for number of device inserts
-
Luminaire hook mounting
-
Max. conductor cross section
2.5
With screening
-
With screws
Yes
Airtight
-
Depth
66
66
Suitable for cable diameter
-
-
Degree of protection IP
IP30
Suitable for tube diameter
20/25 mm
Inlet from the rear
Yes
Pipe locking
-
Special application
-
Clamp position fixed
-
With partition panel
-
Number of poles of the clamp
-
Nozzle
-
Provided with revolving ring
-
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
Pipe locking optional
-
Number of included spouts
-
Cover model
-
Housing feed-through by break-out opening
Yes
Transparent cover
-
Degree of protection NEMA
-
Suitable for wallboard thickness
-
Number of non-adjustable device fixing lugs
-
Number of adjustable device fixing lugs
-
Compliant with BS 4662
-
Brands
OBO
