Tipo de proteção IP55, tensão nominal 690 V, secção transversal nominal 2,5 mm², 12 entradas para cabos com diâmetro de 5-14 mm. Tampa de aperto.Dimensões: 85 x 85 x 40 mm Dimensões internas: 75 x 75 x 35 mm Por cada 10 caixas 1 ferramenta de corte
Boxes

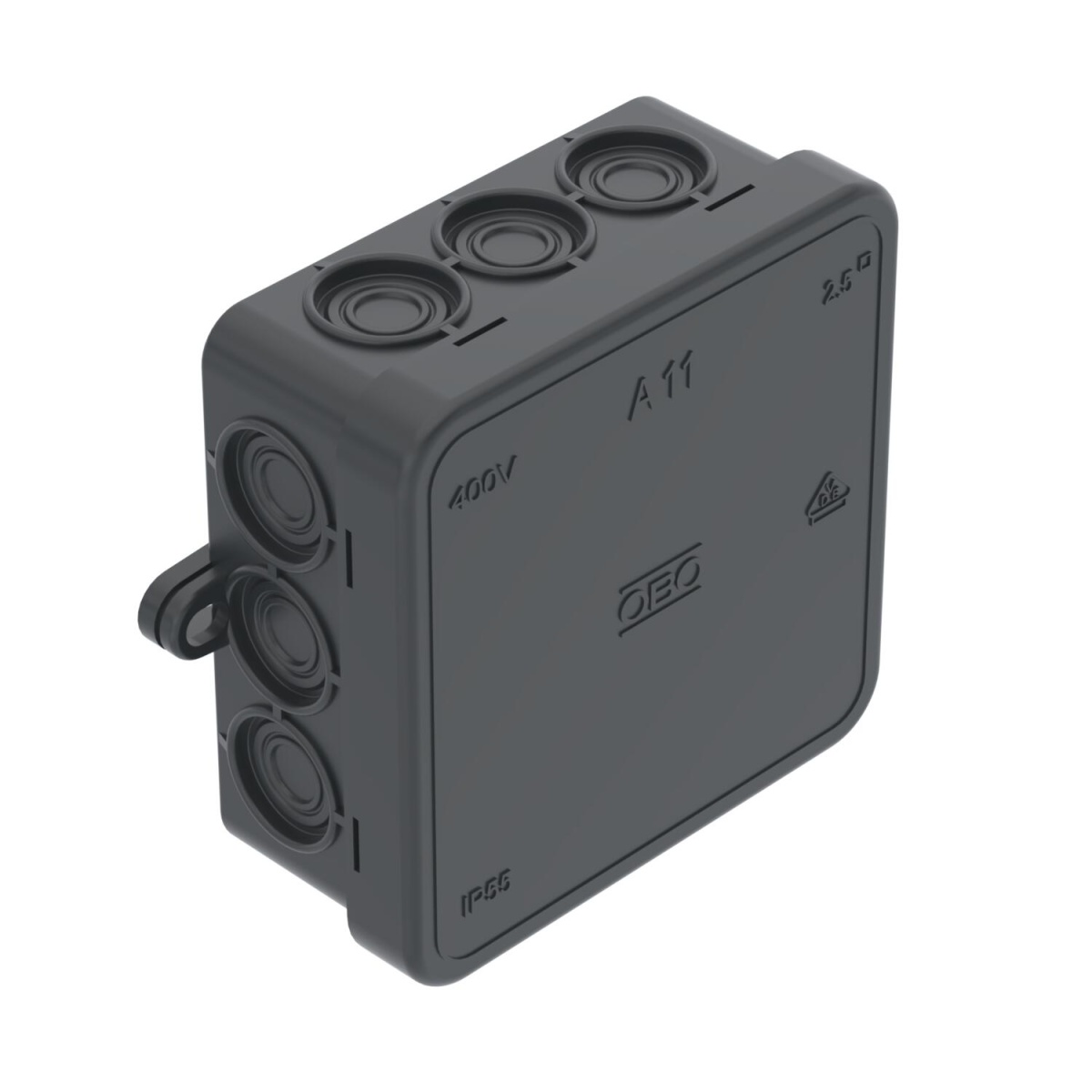

Junction box 85x85x40 Polietileno preto grafite RAL 9011
Nortécnica Ref:
EAN:
4012197444358
Description
Technical Information
Attributes
Mounting method
Wall-/ceiling mounting
Colour
Black
Largura
85
Model
Junction box
Halogen free
Yes
Profundidade
40
Shape
Square
Surface protection
-
Diâmetro
-
Equipped with
None
With strain relief
-
Rated insulation voltage Ui
690
Number of poles
-
Comprimento
85
Sealable
No
Circuit integrity
None
Working temperature
-5
45
Material
Plastic
Number of clamp positions per pole
-
Number of inlets
12
RAL-number similar
9011
Explosion-tested version
No
Cover attachment
Snapped on
Max. conductor cross section
2.5
With screening
No
Weatherproof
No
Degree of protection IP
IP55
Suitable for tube diameter
Other
Inlet from the rear
No
Suitable for Ex-zone gas
None
Connectable
Yes
Type of housing feed-through
Preembossing
Suitable for Ex-zone dust
None
Cover model
Blind cover
Castable
No
Casting compound included
No
Transparent cover
No
Degree of protection NEMA
-
Mounting in the soil
No
Mounting under water
No
Outgoing connections with connectors for plug-in building installation
-
Number of cable glands included
-
Brands
OBO
